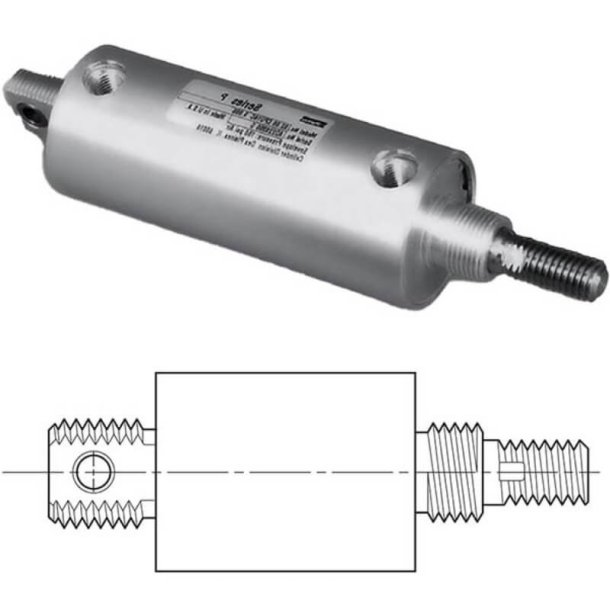

PARKER 2.00PLU16AC02.00 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€722.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/4" NPT Threaded Pneumatic Ports 5/8"-11 UNC Male Threaded Rod-End |
| Design | "LipSeal" Piston Cushion At Cap End Only Repairable |
| Dia. | 5/8" |
| Function | Double-Acting Aluminium Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Low-Friction Bronze Bearing Lightweight Aluminium Heads And Caps Chrome-Plated Steel Piston Rod |
| Max. Air Service Pressure | 150 psig |
| Mounting | Universal Nose Mounting (Standard) |
| Mounting Mode | Universal Nose Mounting (Standard) |
| Shape | Cylindrical |
| Stroke Length | 2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
