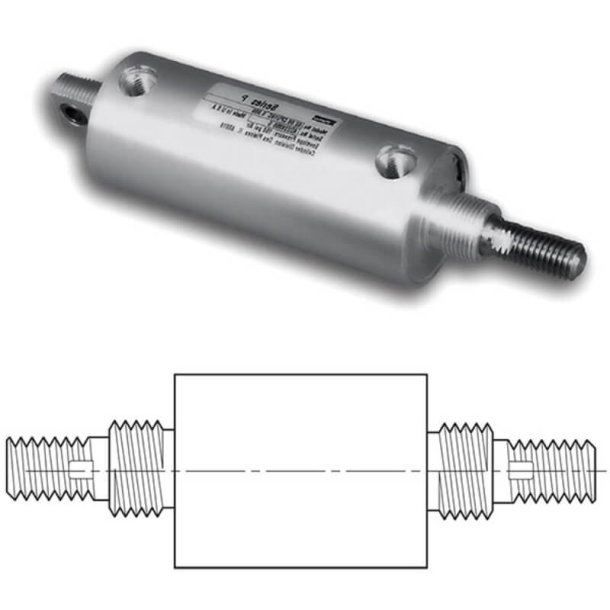

PARKER 1PP000005547 Pneumatic Cylinder
Get it by Monday, Aug 24
€2,496.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Threaded Rod-Ends (Both Ends) |
| Design | LipSeal Piston 416 Stainless Steel Rod Based On Model 4.00KPLU16AD16AD09.00 Repairable |
| Dia. | 1" , 2" X 1" |
| Function | Double-Acting Double-Ended Rod Aluminium Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Low-Friction Bronze Bearing Lightweight Aluminium Heads And Caps 416 Stainless Steel Piston Rod |
| Max. Air Service Pressure | 150 psig |
| Mounting | Universal Nose Mounting (Standard) |
| Mounting Mode | Universal Nose Mounting (Standard) |
| Shape | Cylindrical |
| Stroke Length | 9" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
