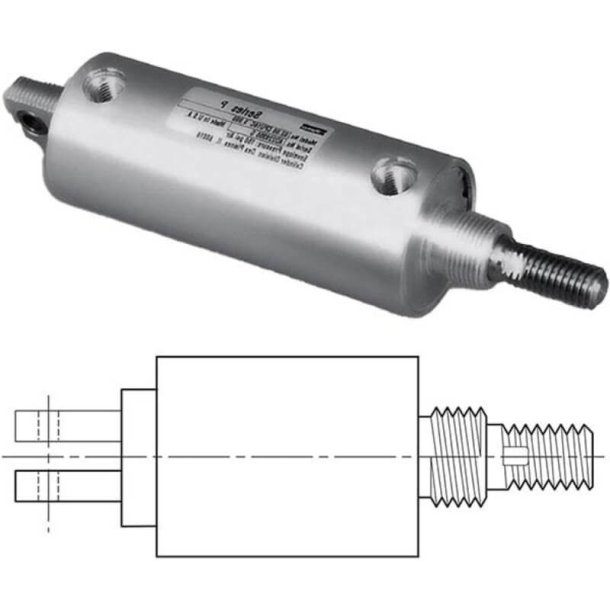

PARKER 1PP000003108 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€2,106.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +250°F |
| Ambient Air Temp. For Operation | -10°F to +250°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Threaded Rod End , 2 X 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Threaded Rod-End |
| Design | LipSeal Piston Fluorocarbon Seals Based On Model 4.00APLUV16A07.00 Repairable |
| Dia. | 1" |
| Function | Double-Acting Aluminium Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Fluoro Carbon Seals Aluminium Piston Low-Friction Bronze Bearing Lightweight Aluminium Heads And Caps Chrome-Plated Steel Piston Rod |
| Max. Air Service Pressure | 150 psig |
| Mounting | Dual Tang Mounting |
| Mounting Mode | Dual Tang Mounting |
| Rod Dia. | 1" |
| Shape | Cylindrical |
| Stroke Length | 7" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
