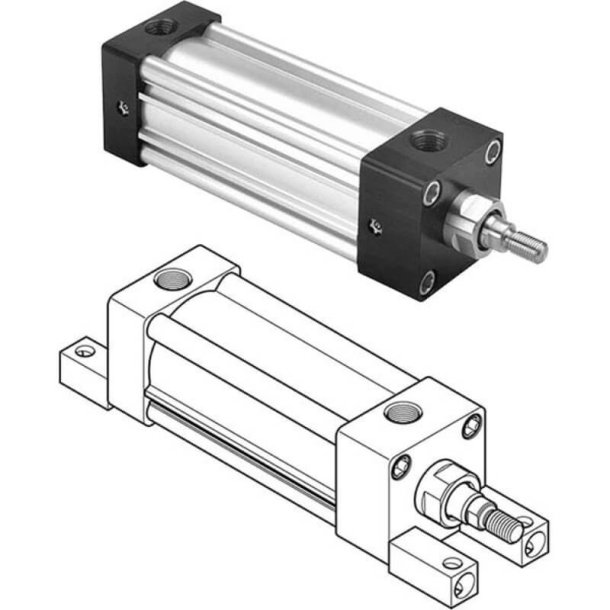

PARKER 1P4ML0000801 Hydraulic Cylinder
Get it by Monday, Aug 24
€1,064.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Bore Size | 4" |
| Connection Type | 2 X 1/2" NPT Threaded Hydraulic Ports 3/4"-16 UNF Male Small Threaded Rod-End |
| Design | "LipSeal" Piston NFPA Interchangeable Model Based On Model 4.00G4ML2US14A25.00 Special Model Repairable Filtered Hydraulic Oil As Input Medium |
| Dia. | 1" , 1" No.1 |
| Function | Double-Acting Non-Lube NFPA Tie-Rod Hydraulic Cylinder |
| Main Function | Hydraulic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Mounting | Side End Lug Mounting (NFPA MS7) |
| Mounting Mode | Side End Lug Mounting (NFPA MS7) |
| Pressure | 400 psig |
| Shape | Rectangular |
| Stroke Length | 25" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
