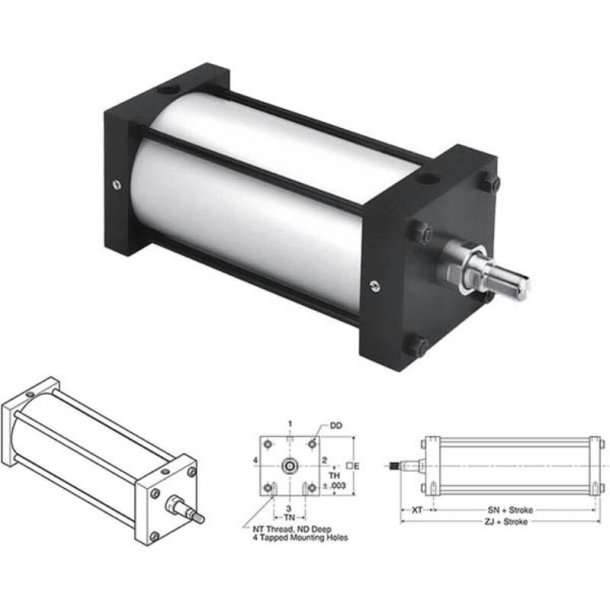

PARKER 1P4MA0041973 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€1,653.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 6" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/4" NPT Threaded Pneumatic Ports 1"-14 UNF Female Short Threaded Rod-End |
| Design | Piston Magnet "Lipseal" Piston Short Female Rod-End Thread Cushion At Head End Only Nfpa Interchangeable Model Based On Model 6.00Cf4Ma3Us19A11.00 Special Model Repairable, Piston Magnet LipSeal Piston Short Female Rod End Thread Cushion At Head End Only NFPA Interchangeable Model Based On Model 6.00CF4MA3US19A11.00 Special Model Repairable |
| Dia. | 1 3/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Side Tap Mounting (NFPA MS4) |
| Mounting Mode | Side Tap Mounting (NFPA MS4) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 11" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
