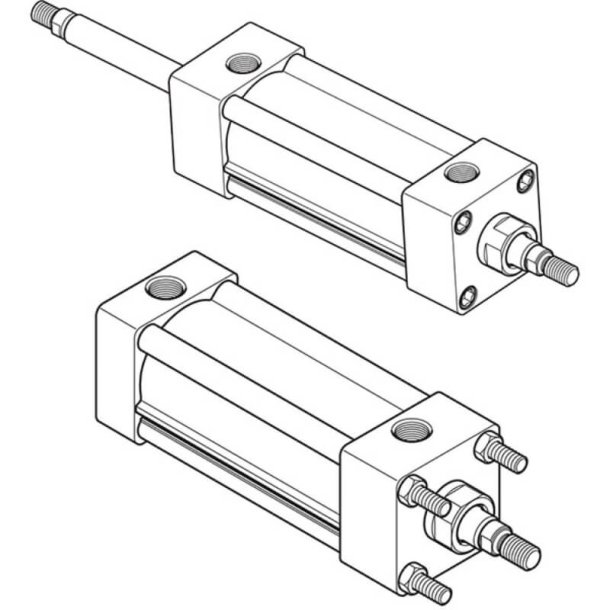

PARKER 1P4MA0041583 Pneumatic Cylinder
Get it by Monday, Aug 24
€912.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 1/2" NPT Threaded Pneumatic Ports Special UNF Rod-End Threading (Please Specify At Order Time) (End 1) 3/4"-16 UNF Male Small Threaded Rod (End 2) |
| Design | Piston Magnet "Lipseal" Piston Special Rod-End Thread (End 1) Small Male Rod-End Thread (End 2) Nfpa Interchangeable Model Based On Model 4.00Ktb4Ma3U13A14A04.69 Special Unf Rod-End Thread Repairable , Piston Magnet LipSeal Piston Special Rod End Thread (End 1) Small Male Rod End Thread (End 2) NFPA Interchangeable Model Based On Model 4.00KTB4MA3U13A14A04.69 Special UNF Rod End Thread Repairable |
| Dia. | 2 X 1" No.1 Rods (Both Ends) , 2" X 1" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Head End Mounting (NFPA MX3) |
| Mounting Mode | Tie-Rods Extended Head End Mounting NFPA Mx3) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 4.69" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
