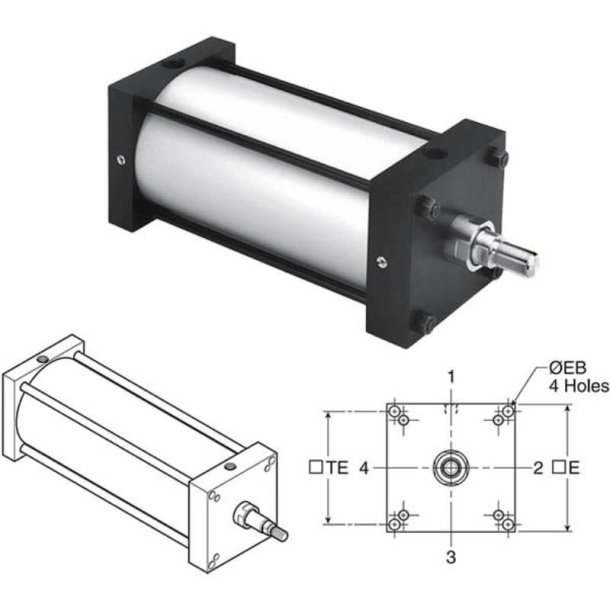

PARKER 1P4MA0041535 Pneumatic Cylinder
Get it by Monday, Aug 24
€3,729.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 8" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 3/4" NPT Threaded Pneumatic Ports Special UNF Rod-End Threading (Please Specify At Order Time) |
| Design | Piston Magnet "Lipseal" Piston Fluorocarbon Rod Wiper And Rod Seals Nfpa Interchangeable Model Based On Model 8.00Jb4Ma3Ues13A33.00 Special Model Special Unf Rod-End Thread Repairable |
| Dia. | 1 3/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard Anodized Aluminium Cylinder Body Fluoro Carbon Rod Wiper And Seals Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Head Square Mounting (NFPA ME3) |
| Mounting Mode | Head Square Mounting NFPA ME3 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 33" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
