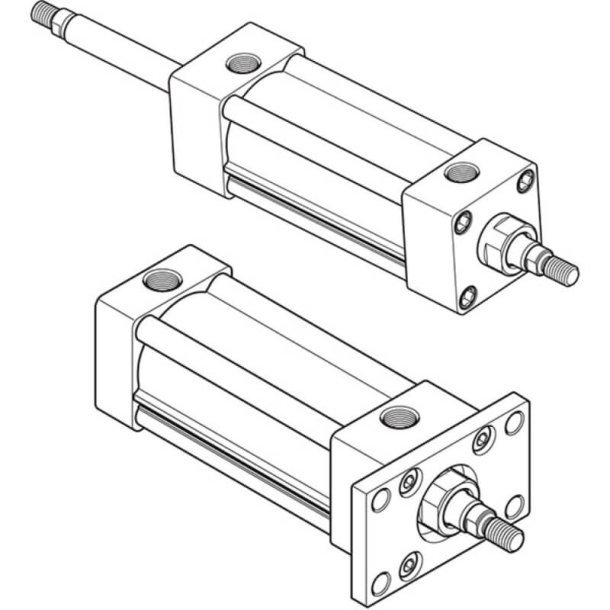

PARKER 1P4MA0037000 Pneumatic Cylinder
Get it by Monday, Aug 24
€741.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-Ends (Both Ends) |
| Design | Piston Magnet "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Cushion At Both Ends Nfpa Interchangeable Model Based On Model 2.00Ckj4Ma3Us34A34Ac05.00 Special Model Repairable |
| Dia. | 2 X 1" No.3 Rods (Both Ends) , 2" X 1" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Head Rectangular Flange Mounting (NFPA MF1) |
| Mounting Mode | Head Rectangular Flange Mounting NFPA MF1 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 5" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
