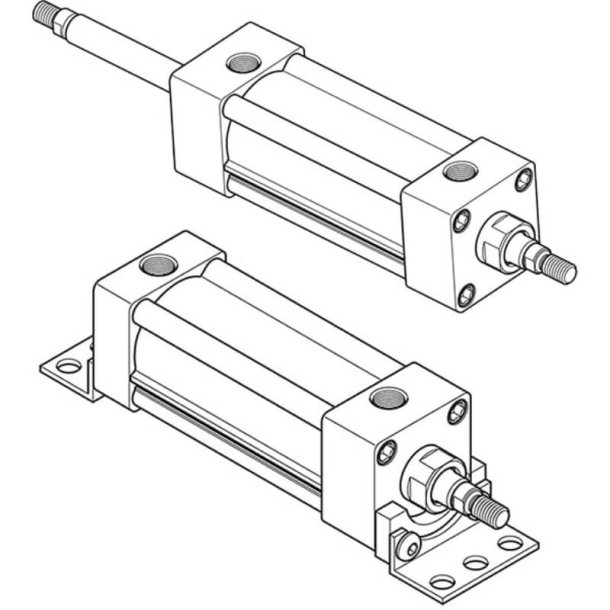

PARKER 1P4MA0035769 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€635.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 2 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Small Threaded Rod-Ends (Both Ends) |
| Design | "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Cushion At Head End Only Nfpa Interchangeable Model Based On Model 2.50Ckcb4Ma2U14A14A05.00 Repairable, LipSeal Piston Small Male Rod End Threads (Both Ends) Cushion At Head End Only NFPA Interchangeable Model Based On Model 2.50CKCB4MA2U14A14A05.00 Repairable |
| Dia. | 2" X 5/8" , 5/8" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Side End Angle Mounting (NFPA MS1) |
| Mounting Mode | Side End Angle Mounting (NFPA MS1) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 5" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
