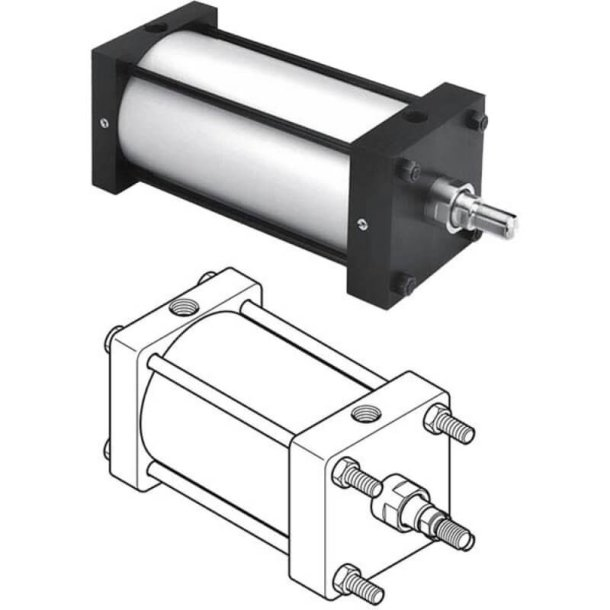

PARKER 1P4MA0035229 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€1,629.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 6" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/4" NPT Threaded Pneumatic Ports 1"-14 UNF Male Small Threaded Rod-End |
| Design | "Lipseal" Piston Small Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Based On Model 6.00Ctb4Mau14Ac18.00 Repairable |
| Dia. | 1 3/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Head End Mounting (NFPA MX3) |
| Mounting Mode | Tie-Rods Extended Head End Mounting NFPA Mx3) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 18" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
