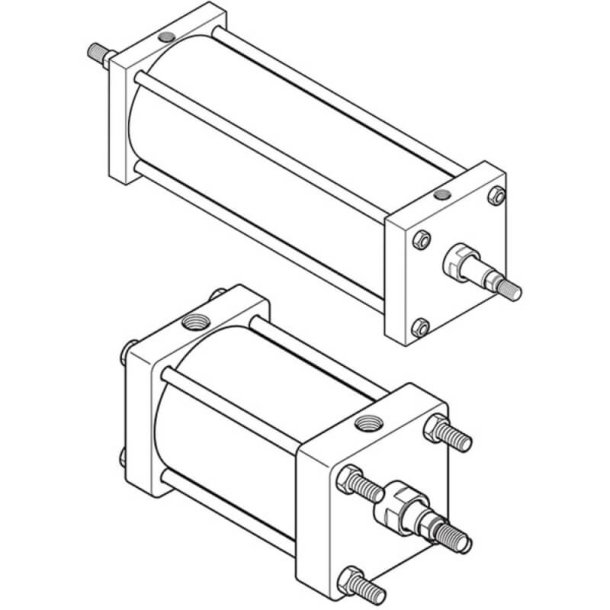

PARKER 1P4MA0031795 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€1,767.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 6" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 3/4" NPT Threaded Pneumatic Ports 1"-14 UNF Female Short Threaded Rod Ends (Both Ends) , 2 x 3/4" NPT Threaded Pneumatic Ports 1"-14 UNF Female Short Threaded Rod-Ends (Both Ends) |
| Design | "Lipseal" Piston Short Female Rod-End Threads (Both Ends) Cushion At Cap End Only Nfpa Interchangeable Model Based On Model 6.00Ktb4Mau19A19Ac04.00 Repairable |
| Dia. | 2 X 1-3/8" No.1 Rods (Both Ends) , 2" X 1 3/8" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Head End Mounting (NFPA MX3) |
| Mounting Mode | Tie-Rods Extended Head End Mounting NFPA Mx3) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
