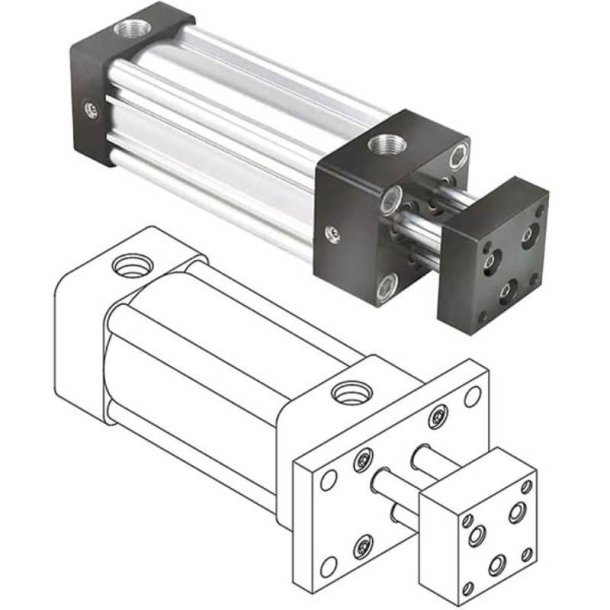

PARKER 1P2MN0000272 Pneumatic Cylinder
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Packaging Assembly |
| Bore Size | 3 1/4" |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports Standard Threaded Rod End (UNF) , 2 X 1/2" NPT Threaded Pneumatic Ports Standard Threaded Rod-End (UNF) |
| Design | Rod-End Tooling Plate Cushion At Both Ends NFPA Interchangeable Model Based On Model 3.25CJ2MNRUT9AC06.00 Repairable |
| Dia. | 16 mm |
| Function | Double-Acting Non-Rotating NFPA Triple-piston Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Cold-Rolled Carbon Steel Tooling Plate Lubricated Sintered-Bronze Rod Bearing Hard Chrome-Plated And Polished Carbon Steel Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Head Rectangular Flange Mounting (NFPA MF1) |
| Mounting Mode | Head Rectangular Flange Mounting NFPA MF1 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Rod Dia. | 16 mm |
| Shape | Rectangular |
| Stroke Length | 6" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
