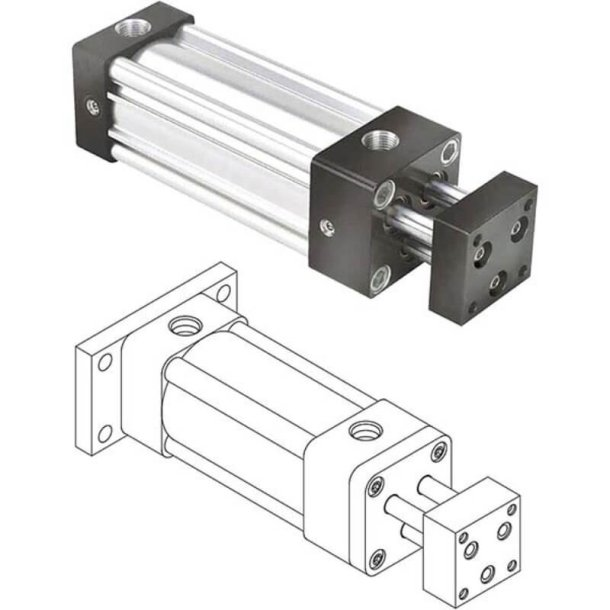

PARKER 1P2MN0000186 Pneumatic Cylinder
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Packaging Assembly |
| Bore Size | 1 1/2" |
| Connection Type | 2 X 1/4" NPT Threaded Pneumatic Ports Standard Threaded Rod End (UNF) , 2 X 1/4" NPT Threaded Pneumatic Ports Standard Threaded Rod-End (UNF) |
| Design | Rod End Tooling PlAte NFPA Interchangeable Model Based On Model 1.50H2MNRUT9A02.50 Repairable |
| Dia. | 8 mm |
| Function | Double-Acting Non-Rotating NFPA Triple-piston Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Cold-Rolled Carbon Steel Tooling Plate Lubricated Sintered-Bronze Rod Bearing Hard Chrome-Plated And Polished Carbon Steel Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Cap Rectangular Flange Mounting (NFPA MF2) |
| Mounting Mode | Cap Rectangular Flange Mounting NFPA MF2 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 2 1/2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
