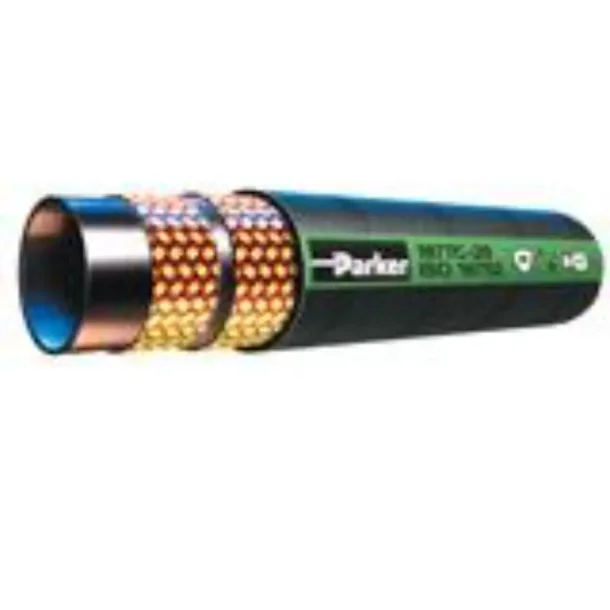

PARKER 187TC-24-BX Hydraulic Hose, 1000 PSI, 1 1/2 Inch Size Hose ID, 2 3/64 Inch Size Hose OD
Get it by Tuesday, Sep 1
5.00% off
€3,133.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Hose |
| Application | Hydraulic |
| Bend Radius | 9 3/4" |
| Color | Black |
| Compatible Chemicals | Hydraulic Fluid (Petroleum), Lubricating Oils |
| Cover Material | Synthetic Rubber |
| Distinct Properties | Tough Cover Constant Pressure 3000 psi |
| Hose Braid Layers | 2 |
| Hose Color | Black |
| Hose Configuration | Bulk Hose |
| Hose Cover Material | Synthetic Rubber |
| Hose Inside Dia. | 1 1/2" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 2 3/64" |
| Hose Pressure | High |
| Hose Reinforcement Material | Stainless Steel |
| Hose Tube Material | Synthetic Rubber |
| Mating Fitting Series | 43 Series |
| Max. Working Pressure @ 70 Deg. F | 1000 psi |
| Min. Bend Radius | 9 3/4" |
| Operating Temp. | -40°F to +257°F |
| Safety Factor | 4:1 |
| Series | 187TC Series |
| System Of Measurement | Imperial |
| Temp. | -40°F to +257°F |
| Tube Material | Synthetic Rubber |
| Vacuum | 18 in. hg |
Shipping Info:
| Ship weight (kg) | 31.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Hose Inside Dia. | Temp. | Color | Bending Radius | Safety Factor | Min. Bend Radius | Bend Radius | Hose Braid Layers | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 187TC-20-BX | 1 1/4" | -40°F to +257°F | Black | - | 4:1 | 5 1/2" | 5 1/2" | 2 | €2,311.54 | |
| 187TC-16-BX | 1" | -40°F to +257°F | Black | - | 4:1 | 4 1/2" | 4 1/2" | 1 | €1,165.04 | |
| 187TC-8-BX | 1/2" | -40°F to +212°F | Black | - | 4:1 | 2 1/2" | 2 1/2" | 1 | €516.80 | |
| 187TC-12-BX | 3/4" | -40°F to +212°F | Black | - | 4:1 | 3 1/2" | 3 1/2" | 1 | €945.24 | |
| 187TC-10-BX | 5/8" | -40°F to +212°F | Black | - | 41 | 3" | - | - | €703.91 | |
| 187TC-32-BX | 2" | -40°F to +257°F | Black | - | 4:1 | 12 1/2" | 12 1/2" | 2 | €4,118.66 | |
| 187TC-32 | - | - | Black, Green | 12 1/2" | - | - | - | - | €58.75 |
