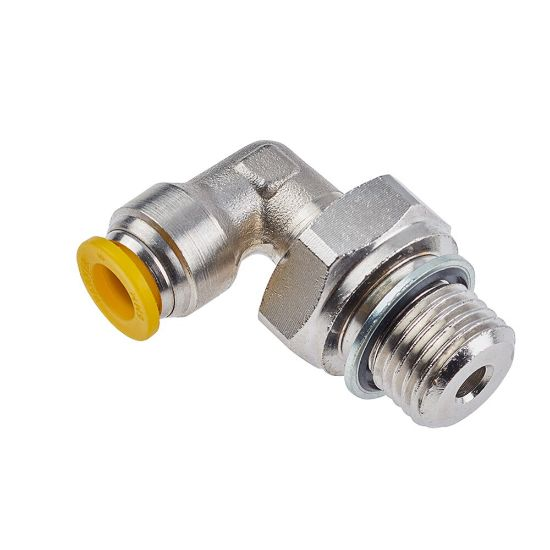

PARKER 169PLP-10M-4G Metric Metal Push-to-Connect Fitting, Nickel Plated Brass, Push-to-Connect x BSPP
Item: CT7JLHModel: 169PLP-10M-4GCross Ref: 791C18
7 In Stock
Ships within 2 days via
10.00% off
€16.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Cooling |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Nylon N, Nylon NR, Polyethylene, Polyethylene HDPE, Polyethylene PEFR, Polypropylene, Polypropylene Block Copolymer, Polyurethane |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 10 mm |
| Fitting Side B Pipe Size | 0.25 mm |
| Fitting Thread Size | 1/4" |
| Includes Pre-applied Thread Sealant | No |
| Length | 23.75 mm |
| Material | Brass |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 0°F |
| Overall Length | 23.75 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Corrsion Resistant, Mechanical Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Sub-brand | Prestolok |
| System Of Measurement | Metric |
| Thread Size | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.37 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Compatible Tube Hardness | Fitting Side B Connection Type | Overall Length | Specific Fitting Shape | Fitting Side B Tube Outer Diameter | Fitting Thread Size | Fitting Side C Connection Type | Fitting Side C Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
171PLP-12M-8G | 90 Shore A, 95 Shore A | Push To Connect | 29.15625 mm | TEE | 12 mm | 1/2" | BSPP | 1/2" | €57.55 | |
 |
W172PLP-4M-2R | 90 Shore A, 95 Shore A | Push To Connect | 19.0625 mm | TEE | 4 mm | 1/8" | BSPT | 1/8" | €21.02 | |
 |
172PLP-12M-4G | 90 Shore A, 95 Shore A | Push To Connect | 27 mm | TEE | 12 mm | 1/4" | BSPP | 1/4" | €42.31 | |
 |
62PLPBH-12M | 95 Shore A | Push To Connect | 50.9375 mm | Bulkhead Union | 12 mm | - | - | - | €45.98 | |
 |
W171PLP-10M-4R | 90 Shore A, 95 Shore A | Push To Connect | - | TEE | 10 mm | - | BSPT | 1/4" | €42.21 | |
|
W171PLP-6M-4R | 90 Shore A, 95 Shore A | Push To Connect | 20.90625 mm | TEE | 6 mm | 1/4" | BSPT | 1/4" | €17.26 | |
 |
171PLP-6M-4G | 90 Shore A, 95 Shore A | Push To Connect | 20.90625 mm | TEE | 6 mm | 1/4" | BSPP | 1/4" | €17.26 |
