PARKER 16-5B Quick Coupler, 1/2 Inch Size, 300 Psi, Steel
Item: AC4WBPModel: 16-5BCross Ref: 30N352
7 In Stock
Ships within 2 days via
10.00% off
€75.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Coupler |
| Application | Pneumatic |
| Barb Size | 3/8" |
| Barbed | Yes |
| Body Material | Steel |
| Body Size | 1/2" |
| Configuration Type | Hose Barb |
| Connection Type | Hose Barb |
| Coupler/nipple/shell | Coupler |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Finish | Trivalent Chrome |
| Finish, Coating | Trivalent Chromium Plated |
| Fitting Type | Male Hose Barb |
| For Hose I.d. | 3/8" |
| Hose Connection | Hose Barb |
| Hose Connection Type | Hose Barb |
| Hose Fitting Gender | Male |
| Hose Fitting Size | 3/8" |
| Hose Inside Dia. | 3/8" |
| Includes Valve | Yes |
| Interchange Type | Automotive, Tru Flate |
| Length | 3.14" |
| Lock Type | Sleeve |
| Locking Type - Quick Connect Air Couplings | Sleeve |
| Material | Steel |
| Max. Flow Rate | 3114.85 LPM |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Max. Outside Dia. | 1 3/16" |
| Max. Pressure | 300 psi |
| Max. Pressure Range | 250 psi to 499 psi |
| Max. Working Pressure | 300 psi |
| Max. Working Pressure @ 70 F | 300 psi |
| Min. Operating Temp. | -40°F |
| Overall Length | 3 1/8" |
| Plating | Zinc |
| Quick Connect Air Coupling Locking Type | Sleeve |
| Quick Connect Air Coupling Material | Steel |
| Quick Connect Air Coupling Seals | Nitrile |
| Quick Coupler Type | Pneumatic Manual Connect |
| Seal | Nitrile |
| Seal Material | Nitrile |
| Seals | Nitrile |
| Seals - Quick Connect Air Couplings | Nitrile |
| Series | 10 Series |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
| Thread Size | Not Available |
| Valve Type | Tubular |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 7.98 |
| Ship width (cm) | 3.05 |
| HS code | 8481803090 |
| Country of Origin | US |
Product Variants
| Product | Model | Connection Type | Body Size | Hose Fitting Size | Coupling Locking Type | Barb Size | Interchange Type | Hose Connection Type | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
14-5B | Push Hose Barb | 3/8" | 3/8" | Sleeve | 3/8" | Automotive, Tru Flate | Hose Barb | Steel | €84.11 | |
|
14-6B | Hose Barb | 3/8" | 1/2" | Sleeve | 1/2" | Automotive, Tru Flate | Hose Barb | Steel | €83.45 | |
|
16-6B | Hose Barb | 1/2" | 1/2" | Sleeve | 1/2" | Automotive, Tru Flate | Hose Barb | Steel | €77.16 | |
 |

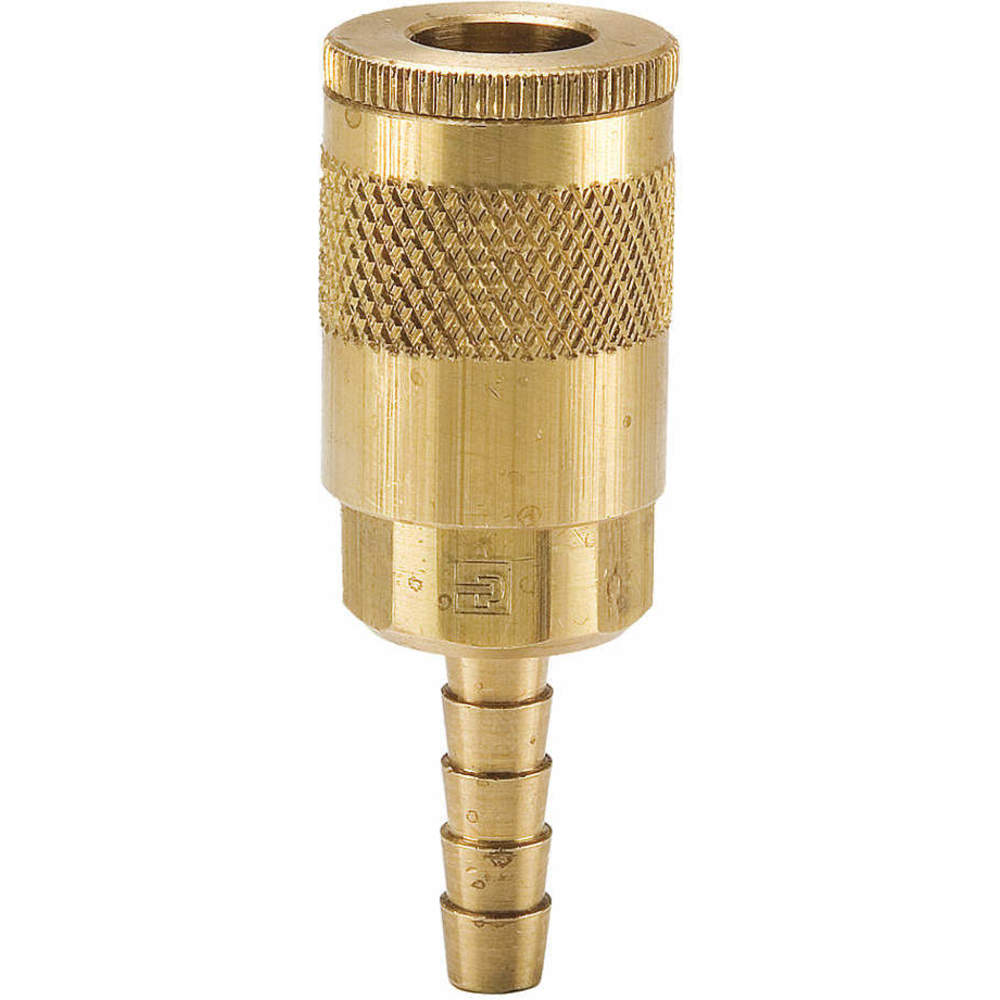

B10-3B | Hose Barb | 1/4" | 1/4" | Sleeve | 1/4" | Automotive, Tru Flate | Hose Barb | Brass | €45.18 | |
 |

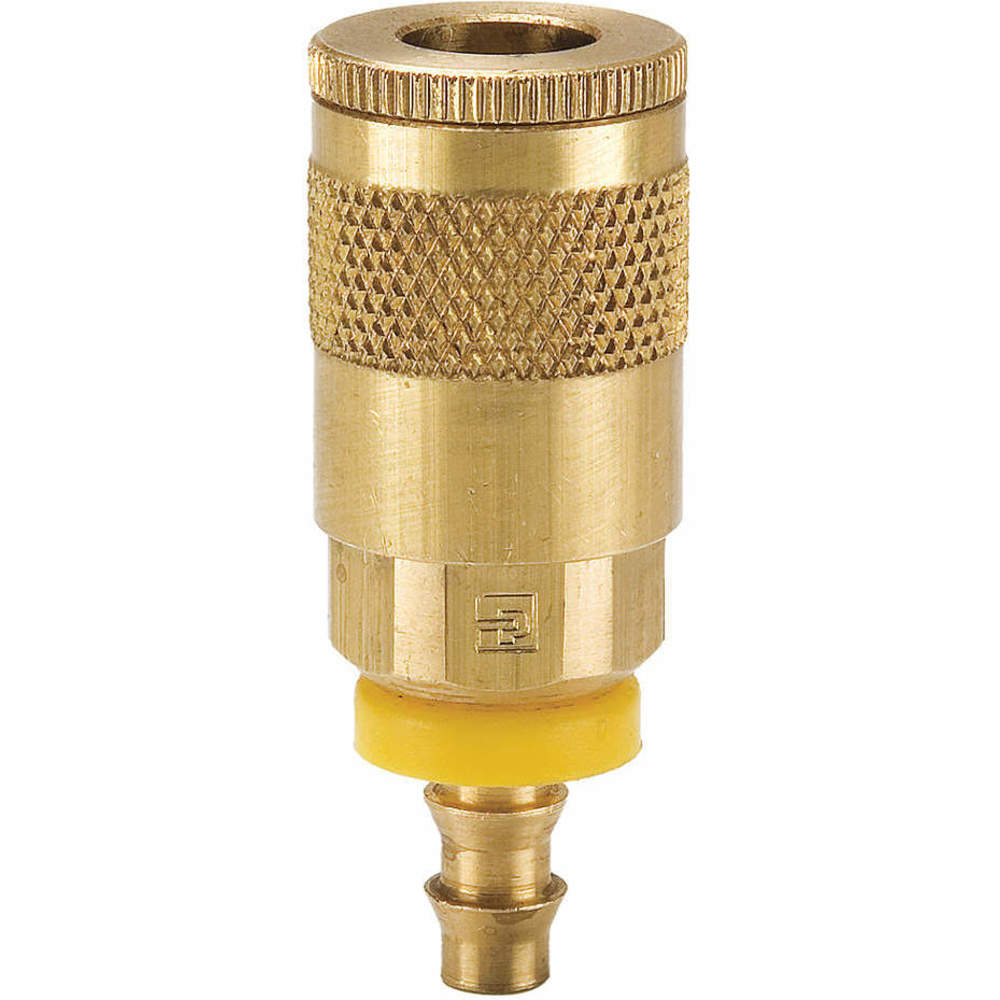

B10-3BP | Push Hose Barb | 1/4" | 1/4" | Push to Connect | 1/4" | Automotive, Tru Flate | Push On | Brass | €49.64 | |
|
B10-5B | Hose Barb | 1/4" | 3/8" | Sleeve | 3/8" | Automotive, Tru Flate | Hose Barb | Brass | €43.65 | |
|
B10-5BP | Hose Barb | 1/4" | 3/8" | Sleeve | 3/8" | Tru Flate Automotive | Push On | Brass | €49.24 |
