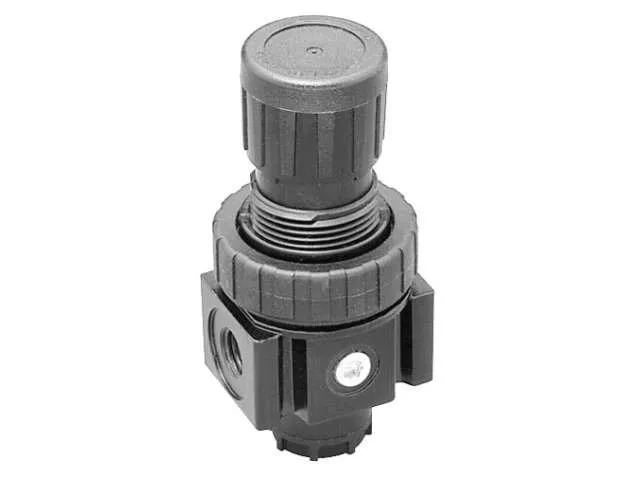

PARKER 15R113FB Regulator, Zinc, 1/4 Inch NPT, 1 psig to 125 psig, 300 psig Max Op Pressure, Knob
Item: BT6TLDModel: 15R113FBCross Ref: 807AW9
7 In Stock
Ships within 2 days via
10.00% off
€98.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Adjustment Mechanism | Knob |
| Air Inlet Size | 1/4" |
| Air Outlet Size | 1/4" |
| Air Outlet Type | NPT |
| Air Preparation Product Type | Regulator |
| Air Preparation Series | General Industrial Series |
| Body Material | Aluminum, Zinc |
| Flow Range | 25-75 SCFM |
| For Fluid Type | Compressed Air |
| For Substance Type | Air |
| Max. Flow Rate | Not Applicable |
| Maximum Flow @ 100 Psi | 21 SCFM |
| Maximum Operating Pressure | 300 psig |
| Maximum Operating Temperature | 125°F |
| Maximum Regulated Pressure | 125 psig |
| Minimum Operating Pressure | 0 psig |
| Minimum Operating Temperature | 32°F |
| Minimum Regulated Pressure | 1 psig |
| Modular Connection | No Modular Connection |
| Operating Temp. Range | 0°C to 52°C |
| Overall Height | 3 5/16" |
| Overall Width | 2 1/8" |
| Port Inch/bsp | NPT |
| Port Size | 3/8" |
| Port Type | NPT |
| Pressure Gauge Included | No |
| Pressure Gauge Port Size | 1/4" |
| Pressure Gauge Port Type | NPT |
| Regulator Type | Relieving |
| Relieving/non-relieving | Relieving |
| Seal Material | Nitrile |
| Secondary Pressure Range | 2 psig to 125 psig |
| Series | 15R ECONOMY Series |
| Supply Pressure Range | 0 psig to 300 psig |
| Weight | 0.5 lbs. |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 8.41 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 5.4 |
| Country of Origin | MX |
