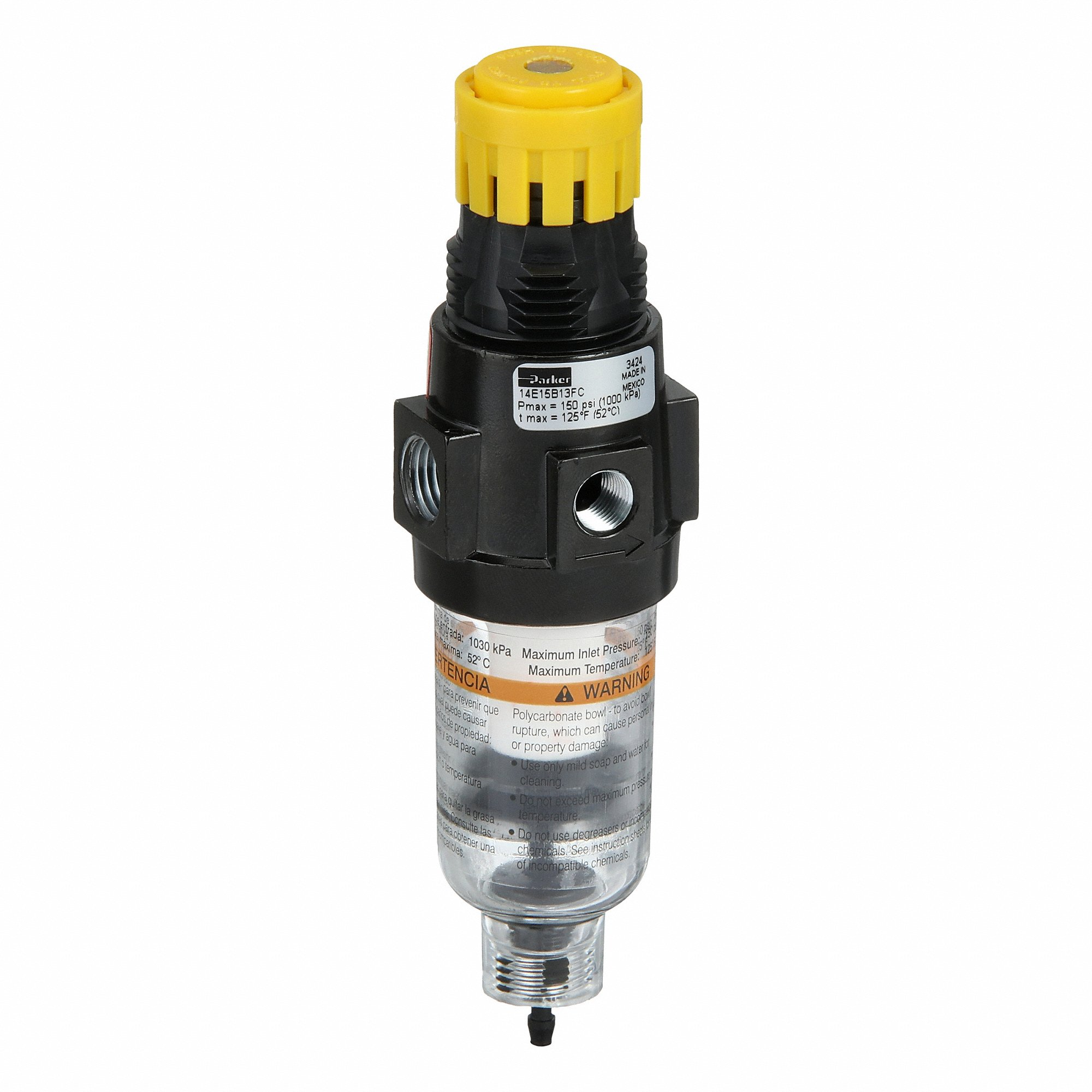

PARKER 14E15B13FC Filter Regulator, 1/4 Inch NPT, 18 scfm, 0 psig to 125 psig, 150 psig Max Op Pressure
Item: BT7MMYModel: 14E15B13FCCross Ref: 807AV6
7 In Stock
Ships within 2 days via
10.00% off
€118.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Plastic |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1/4" |
| Air Outlet Type | NPT |
| Body Material | Zinc |
| Drain Included | Yes |
| Drain Type | Automatic |
| Filter Bowl Capacity | 1 oz. |
| Filter Bowl Material | Polycarbonate |
| Filter Element Material | Plastic |
| Filter Type | Particulate |
| For Fluid Type | Compressed Air |
| For Substance Type | Air |
| Maximum Flow @ 100 Psi | 18 SCFM |
| Maximum Flow Rate | 18 SCFM |
| Maximum Operating Pressure | 150 psig |
| Maximum Operating Temperature | 125°F |
| Maximum Regulated Pressure | 125 psig |
| Minimum Operating Pressure | 0 psig |
| Minimum Operating Temperature | 32°F |
| Minimum Regulated Pressure | 0 psig |
| Overall Depth | 1 9/16" |
| Overall Height | 6 3/16" |
| Overall Width | 1 5/8" |
| Pressure Control Type | Relieving |
| Pressure Drop | 10 psig |
| Pressure Gauge Included | No |
| Pressure Gauge Port Size | 1/8" |
| Pressure Gauge Port Type | NPT |
| Seal Material | Nitrile |
| Series | 14 Series |
| Weight | 0.4 lbs. |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 15.72 |
| Ship length (cm) | 3.97 |
| Ship width (cm) | 4.13 |
| Country of Origin | MX |
