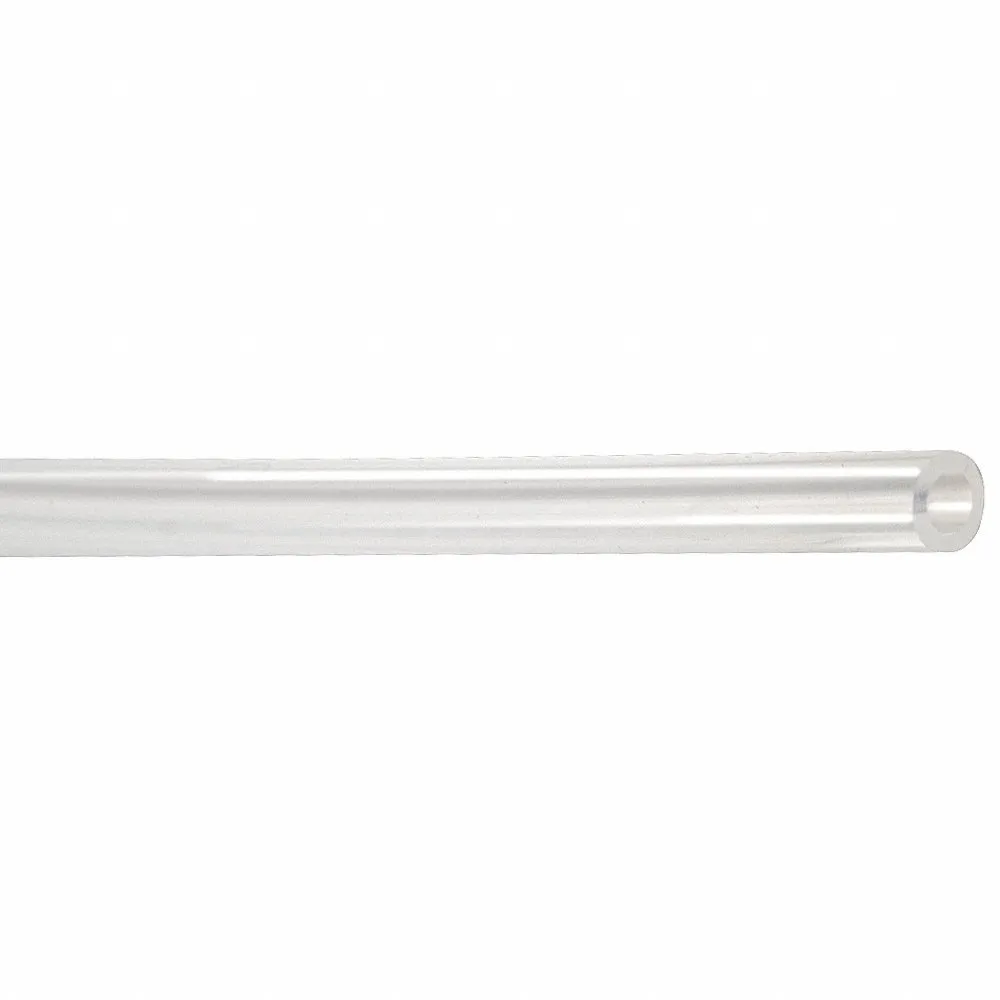

PARKER 103-0750031-NT-50 Tubing, Fep, Natural, 11/16 Inch Id, 3/4 Inch OD, 50 Ft Length, Shore D 55
Item: CT7KTPModel: 103-0750031-NT-50Cross Ref: 53XL43
7 In Stock
Ships within 2 days via
5.00% off
€719.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Beverage, Chemical, Food, Water |
| Autoclavable | Yes |
| Bend Radius | 6" |
| Clarity | Semi Clear |
| Color | Natural |
| Compatible Chemicals | Acetone, Chlorine, Ether, Iodine, Nitric Acid 35%, Zinc Chloride |
| Features | Chemically Inert, Low Coefficient Of Friction, Non-Wetting, Self-Extinguishing, Weldable |
| Fitting Compatibility | Compression, Push to Connect |
| Flexibility | Flexible |
| Food And Beverage Compatibility | Beer, Citric Acid, Dairy, Dextrose, Distilled Water, Fructose, Glycerin, Linseed Oil, Milk, Non-Potable Water, Oils And Fats, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar |
| Hardness | Shore D 55 |
| Inside Dia. | 0.688" , 11/16" |
| Jacket Color | No Jacket |
| Jacket Material | No Jacket |
| Length | 50 ft. |
| Material | FEP |
| Material Trade Name | Not Applicable |
| Material Trade Number | Not Applicable |
| Max. Operating Pressure | 65 psi @ 73°F |
| Max. Operating Temp. | 400°F |
| Max. Pressure | 65 psi |
| Max. Vacuum Pressure | 28 in. hg |
| Min. Operating Temp. | -100°F |
| Outside Dia. | 3/4" |
| Overall Length | 50 ft. |
| Peristaltic Pump Compatible | No |
| Petroleum Product Compatibility | Kerosene, Mineral Oil |
| Pex Type | Not Applicable |
| Reinforcement | Not Reinforced |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Heat Resistant |
| Stripe Color | No Stripe |
| System Of Measurement | Imperial |
| Tube Bend Radius | 6" |
| Tube Form | Straight |
| Vacuum | Yes |
| Wall Thickness | 0.03" |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.91 |
| Ship width (cm) | 1.91 |
| Country of Origin | US |
Product Variants
| Model | Wall Thickness | Max. Operating Pressure | Max. Pressure | Tube Bend Radius | Material | Color | Stripe Color | Material Trade Name | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 103-0830040-NT-50 | 0.05" | 75 psi @ 73°F | 75 psi | 6" | FEP | Natural | No Stripe | Not Applicable | €1,156.20 | |
| 103-0875062-NT-50 | 0.06" | 115 psi @ 73?F | 115 psi | 8" | FEP | Natural | No Stripe | Not Applicable | €1,510.51 | |
| 103-0688031-NT-50 | 0.03" | 70 psi @ 73?F | 70 psi | 6" | FEP | Natural | No Stripe | Not Applicable | €672.73 |
