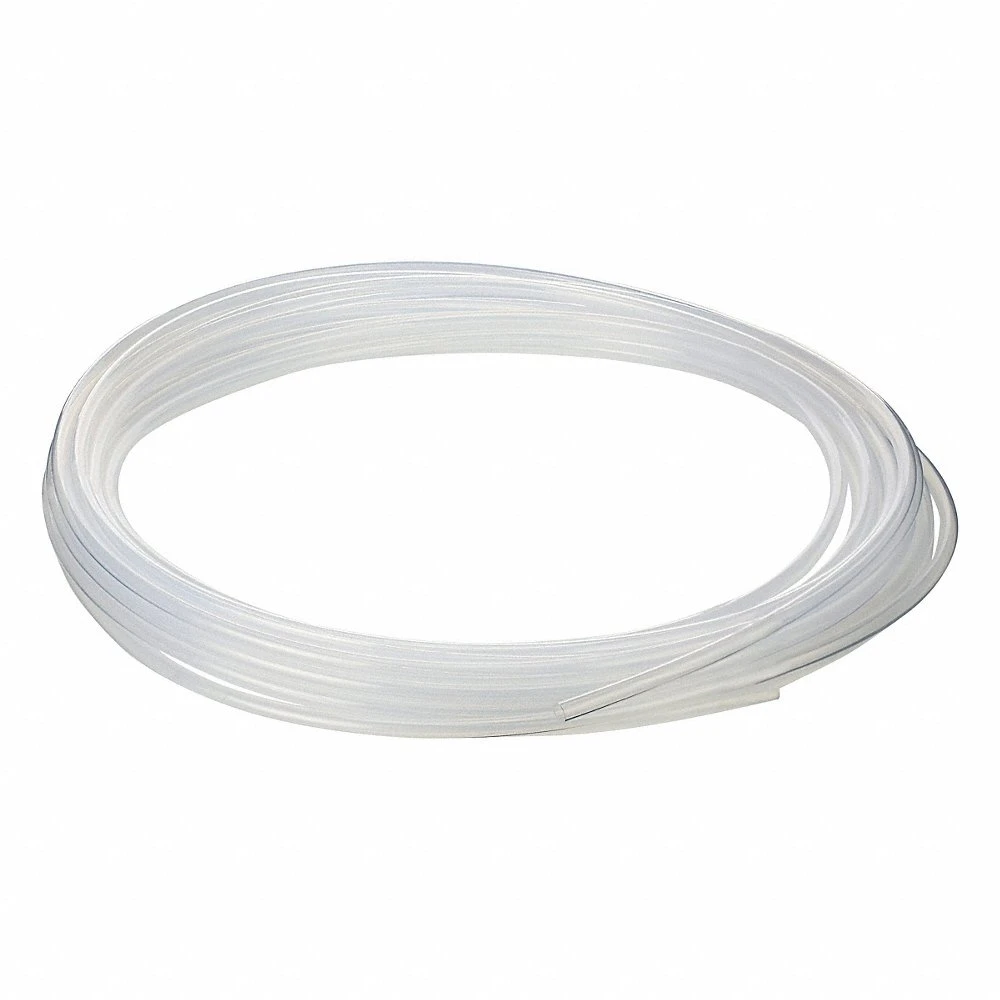

PARKER 103-0625062-NT-100 Tubing, Fep, Clear, 1/2 Inch Id, 5/8 Inch OD, 100 Ft Length, Shore D 55
Item: CT7LGYModel: 103-0625062-NT-100Cross Ref: 797EK8
7 In Stock
Ships within 2 days via
10.00% off
€1,826.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Chemicals, Fluid Transfer, Gas Sampling, Water |
| Burst Pressure | 640 psi |
| Coil Weight | 10.2 lbs. |
| Color | Natural |
| Compatible Tube Wall Thickness | 0.062" |
| End 1 Size | 5/8" |
| End 1 Type | NPT |
| End 2 Size | 5/8" |
| End 2 Type | NPT |
| Features | Chemically Inert To Nearly All Industrial Chemicals And Solvents, Non-Wetting, Nonflammable, Weldable |
| Fitting Compatibility | Compression |
| Flow Application | Fluid Transfer, Food And Beverage, Water Purification |
| For Fluid Type | Beverages, Gas, Water |
| For Location | Indoor, Outdoor |
| For Potable Water Use | Yes |
| Hardness | Shore D 55 |
| Industry Application | Laboratory, Life Science |
| Inside Dia. | 1/2" |
| Length | 100 ft. |
| Material | Teflon |
| Material Trade Name | Not Applicable |
| Max. Operating Temp. | 400°F |
| Max. Pressure | 160 psi |
| Max. Pressure Range | 640 psi |
| Maximum Operating Pressure | 160 psi |
| Min. Operating Temp. | -100°F |
| Outside Dia. | 5/8" |
| Outside Dia. Tolerance | -0.006 to +0.006 |
| Outside Diameter Tolerance | -0.006" to +0.006" |
| Overall Length | 100 ft. |
| Resistance Properties | Chemical Resistant, Crack Resistant, UV Resistant |
| Series | FEP Series |
| Stripe Color | No Stripe |
| System Of Measurement | Inch |
| Tensile Strength | 5000 psi |
| Tube Form | Coil |
| Wall Thickness | 0.062" |
| Weight Per Foot | 0.102 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.59 |
| Ship width (cm) | 1.59 |
| Country of Origin | US |
Product Variants
| Model | Outside Dia. | Inside Dia. | Wall Thickness | Clarity | Fitting Compatibility | Overall Length | Outside Dia. Tolerance | Outside Diameter Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 103-0563031-NT-100 | 0.563" | 1/2" | 0.031" | - | Compression | 100 ft. | -0.006 to +0.006 | -0.006" to +0.006" | €973.56 | |
| 103-0375062-NT-25 | 3/8" | 1/4" | 0.062" | Clear | Compression | 25 ft. | -0.005 to +0.005 | -0.005" to +0.005" | €383.17 | |
| 103-0500062-NT-100 | 1/2" | 3/8" | 0.062" | - | Compression | 100 ft. | -0.005 to +0.005 | -0.005" to +0.005" | €1,969.19 | |
| 103-0500062-NT-25 | 1/2" | 3/8" | 0.062" | - | Compression | 25 ft. | -0.005 to +0.005 | -0.005" to +0.005" | €525.95 | |
| 103-0375031-NT-100 | 3/8" | 0.312" | 0.031" | Clear | Compression | 100 ft. | -0.005 to +0.005 | -0.005" to +0.005" | €804.13 | |
| 103-0438062-NT-100 | 0.438" | 0.312" | 0.062" | - | Compression | 100 ft. | -0.005 to +0.005 | -0.005" to +0.005" | €1,628.14 | |
| 103-0500031-NT-100 | 1/2" | 0.438" | 0.031" | - | Compression | 100 ft. | -0.006 to +0.006 | -0.006" to +0.006" | €867.41 |
