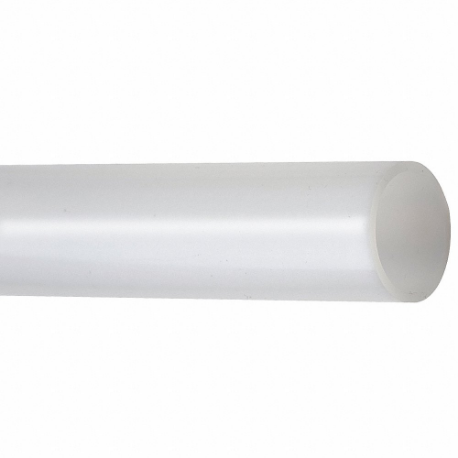

PARKER 101-0750032-NT-50 Tubing, Ptfe, Clear, 11/16 Inch Inside Dia
Item: CT7LEFModel: 101-0750032-NT-50Cross Ref: 53XL71
7 In Stock
Ships within 2 days via
10.00% off
€690.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Beverage, Chemical, Food, Water |
| Autoclavable | Yes |
| Bend Radius | 6 1/2" |
| Burst Pressure | 160 psi |
| Clarity | Semi Clear |
| Color | Translucent |
| Compatible Chemicals | Acetone, Chlorine, Ether, Iodine, Nitric Acid 35%, Zinc Chloride |
| Does Not Contain | Not Applicable |
| Features | Laser Markable, Lowest Coefficient Of Friction, Non-Wetting, Self-Extinguishing |
| Fitting Compatibility | Compression, Push-To-Connect |
| Flexibility | Flexible |
| Food And Beverage Compatibility | Beer, Citric Acid, Dairy, Dextrose, Distilled Water, Fructose, Glycerin, Linseed Oil, Milk, Non-Potable Water, Oils And Fats, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar |
| For Environment | Washdown |
| For Fluid Type | Chemicals, Solvents |
| Hardness | Shore D 50 To 65 |
| Industry Application | Automotive, Chemical Processing, Food Service, Laboratory, Industrial, Insulation |
| Inside Dia. | 0.688" |
| Jacket Color | No Jacket |
| Length | 50 ft. |
| Material | PTFE |
| Material Trade Name | Not Applicable |
| Material Trade Number | Not Applicable |
| Max. Pressure | 40 psi |
| Maximum Vacuum Pressure | 28 in. hg |
| Outside Dia. | 3/4" |
| Peristaltic Pump Compatible | No |
| Petroleum Product Compatibility | Kerosene, Mineral Oil |
| Pex Type | Not Applicable |
| Reinforcement | Not Reinforced |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Heat Resistant |
| Stripe Color | No Stripe |
| System Of Measurement | Inch |
| Tube Form | Straight |
| Vacuum Rated | Yes |
| Wall Thickness | 0.032" |
| Weight/ft. | 0.068 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 1.89 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Outside Dia. | Inside Dia. | Wall Thickness | Clarity | Reinforcement | Color | Hardness | Fitting Compatibility | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

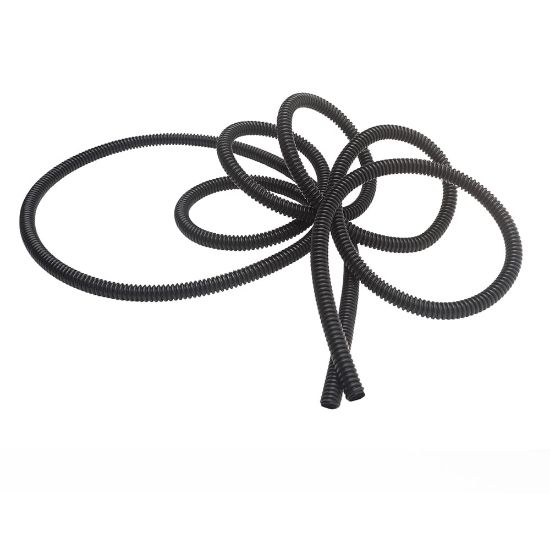

| 81914/1-1010-0TC | 1 1/4" | 1" | 0.035" | Opaque | Non Reinforced | Black | Shore D 50 To 65 | Compression, Push To Connect | €1,608.07 | |
| 81914/1-1006-0TC | 0.656" | 1/2" | 0.029" | Opaque | Not Reinforced | Black | Shore D 50 To 65 | Compression, Push to Connect | €715.77 | |
| 81914/1-1013-0TC | 1.844" | 1 1/2" | 1/25" | Opaque | Non Reinforced | Black | Shore D 50 To 65 | Compression, Push To Connect | €2,466.59 | |
| 81914/1-1012-0TC | 1.531" | 1 1/4" | 0.035" | Opaque | Not Reinforced | Black | Shore D 50 To 65 | Compression, Push-To-Connect | €2,192.56 | |
| 81914/1-1011-0TC | 1 3/8" | 1 1/8" | 0.035" | Opaque | Not Reinforced | Black | Shore D 50 To 65 | Compression, Push to Connect | €1,856.56 | |
| 81914/1-1001-0TC | 0.312" | 0.188" | 0.023" | Opaque | Not Reinforced | Black | Shore D 50 To 65 | Compression, Push to Connect | €462.20 | |
| 81914/1-1008-0TC | 0.969" | 3/4" | 0.035" | Opaque | Not Reinforced | - | Shore D 50 To 65 | Compression, Push to Connect | €1,212.44 |
