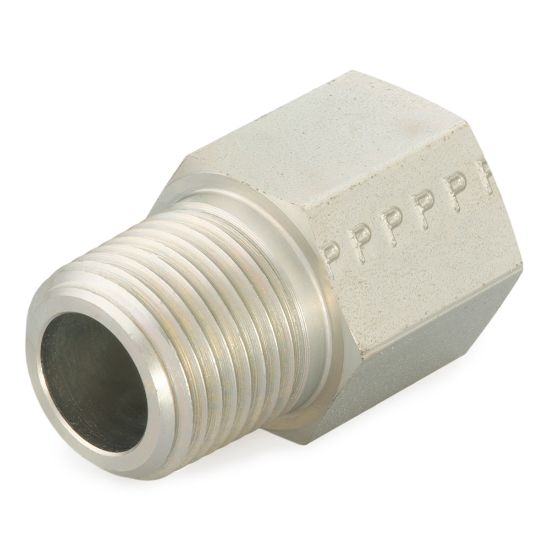

PARKER 1-16 FHG5-S Straight Adapter, Steel, 1 Inch X 1 Inch Pipe
Item: CT7KCPModel: 1-16 FHG5-SCross Ref: 60UW28
7 In Stock
Ships within 2 days via
10.00% off
€77.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Adapter |
| Application | Hydraulic Fluid |
| Basic Fitting Shape | Adapter |
| Configuration Sub-type | Female Straight Thread Adapter NPTF, SAE Orb |
| Configuration Type | Reducer, Expander, Conversion |
| End 1 Size | 1"-11.5 |
| End 1 Type | NPTF |
| End 2 Class | Class 2A |
| End 2 Size | 1 5/16"-12 |
| End 2 Type | Fine |
| Finish/coating | Zinc Plated |
| Fitting Material | Steel |
| Fitting Side A Gender | Male |
| Fitting Side A Nominal Pipe Size | 1" |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 1" |
| Fitting Side B Type | SAE ORB |
| Hex Size | 1 5/8" |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Material | Steel |
| Max. Operating Pressure | 3500 psi |
| Overall Length | 2 1/8" |
| Pipe Fitting Material | Steel |
| Series | PIPE AND PORT Series |
| Specific Fitting Shape | Straight Adapter |
| System Of Measurement | Inch |
| Tube Fitting/adapter Type | Pipe And Port |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 4.13 |
| Ship length (cm) | 5.4 |
| Ship width (cm) | 4.13 |
| Country of Origin | US |
Product Variants
| Model | Max. Operating Pressure | Overall Length | Specific Fitting Shape | Fitting Side A Nominal Pipe Size | Fitting Side B Nominal Pipe Size | Hex Size | Material | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4-6 FHG5-S | 6000 psi | 1 5/16" | Straight Adapter | 1/4" | 3/8" | 3/4" | Steel | Hydraulic Fluid | €20.90 | |
| 1/8-5 FHG5-S | 6000 psi | 1 1/16" | Straight Adapter | 1/8" | 5/16" | 3/4" | Steel | - | €47.45 | |
| 1/2-8 FHG5-S | 5000 psi | 1 5/8" | Straight | 1/2" | 1/2" | 1" | Steel | Hydraulic Fluid | €65.73 | |
| 1/2-6 FHG5-S | 6000 psi | 1 9/16" | Straight | 1/2" | 3/8" | 7/8" | Steel | Hydraulic Fluid | €70.70 | |
| 3/4-12 FHG5-S | 4500 psi | 1 15/16" | Straight | 3/4" | 3/4" | 1 3/8" | Steel | Hydraulic Fluid | €88.86 | |
| 3/8-8 FHG5-S | 5000 psi | 1 1/2" | Straight | 3/8" | 1/2" | 1" | Steel | Hydraulic Fluid | €19.80 | |
| 3/8-6 FHG5-S | 6000 psi | 1 3/8" | Straight | 3/8" | 3/8" | 3/4" | Steel | Hydraulic Fluid | €61.98 |
