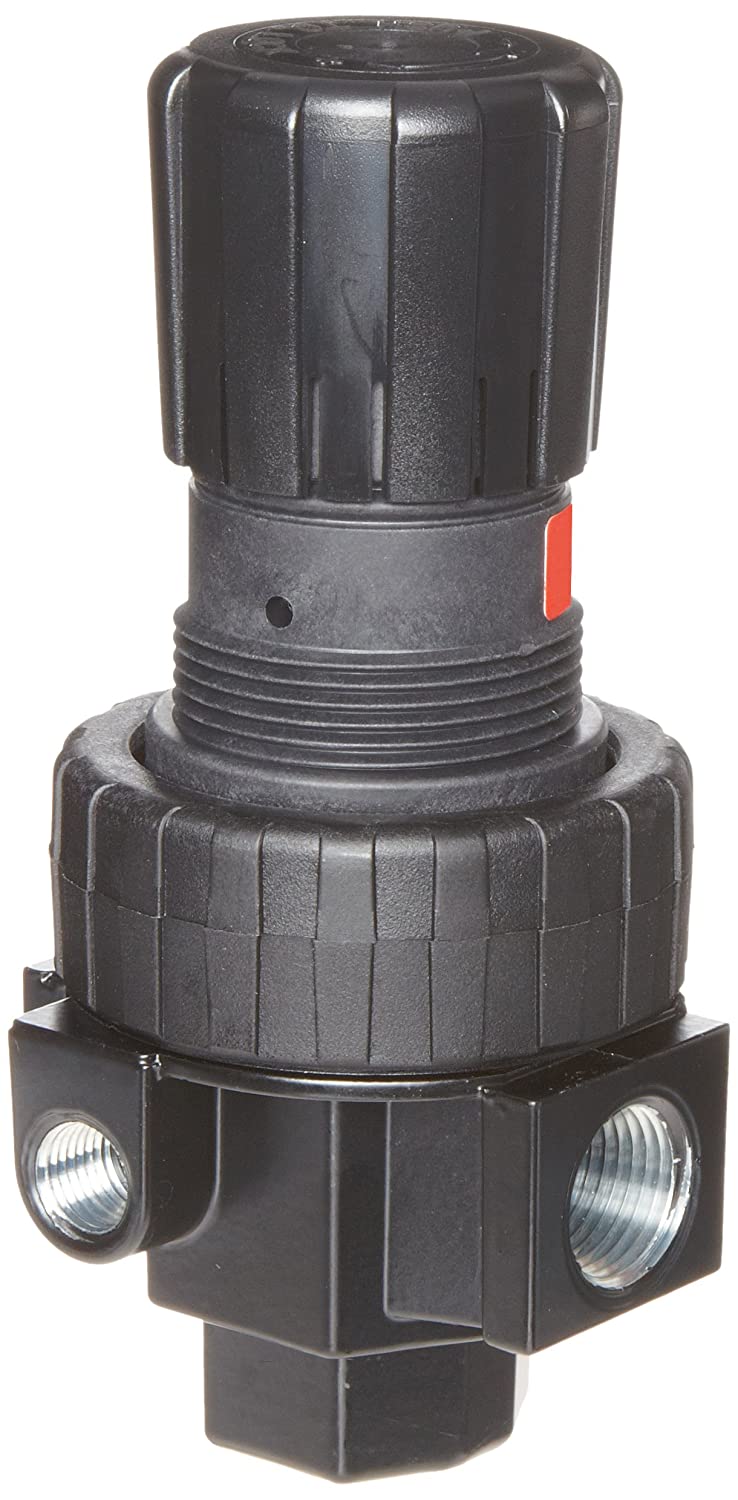

PARKER 06R113AC Compressed Air Regulator, Zinc, 1/4 Inch NPT, 53 cfm, 2 psi to 125 psi
Item: BT6TXRModel: 06R113ACCross Ref: 409X55
7 In Stock
Ships within 2 days via
10.00% off
€151.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Adjustment Knob | Nonrising |
| Adjustment Location | Top |
| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Steel |
| Adjustment Range - Regulators | 0 psi to 125 psi |
| Air Flow Direction | Left To Right |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/4" |
| Air Outlet Gender | Female |
| Air Outlet Size | 1/4" |
| Air Outlet Type | NPT |
| Body Material | Aluminum, Zinc |
| For Fluid Type | Air |
| For Substance Type | Air |
| Includes | (2) Gauge Plugs, Regulator |
| Maximum Flow Rate | 53 CFM |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 175°F |
| Maximum Regulated Pressure | 125 psi |
| Minimum Operating Temperature | 32°F |
| Minimum Regulated Pressure | 2 psi |
| Modular Connection | Modular Connection |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Overall Depth | 2 13/16" |
| Overall Height | 6" |
| Overall Length | 2.74" |
| Overall Width | 2 3/4" |
| Overall Width - Regulators | 2 21/25" |
| Pipe Size - Regulators | 1/4" |
| Pressure Gauge Included | No |
| Pressure Gauge Port Size | 1/4" |
| Pressure Gauge Port Type | NPT |
| Regulator Type | Relieving |
| Seal Material | Nitrile |
| Series | 06R Series |
| System Location | Air Line |
| Valve Design | Balanced |
| Weight | 1.6 lbs. |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 7.14 |
| Ship width (cm) | 6.99 |
| Country of Origin | US |
Product Details:
- General industrial pressure and flow regulator for Parker pneumatic valves
- Zinc body with steel stem (adjustable)
- Features a balanced poppet valve for quick response & pressure regulation and 1/4, 3/8 & 1/2 inch ports to serve as outlet / inlet
- Equipped with stainless steel spring for controlling poppet valve
- Nitrile seal and diaphragm for leak-proof operation
- Easily serviceable design and rolling diaphragm provide extended life
