PARKER 06F26AC Compressed Air Filter, 3/8 Inch NPT, 40 micron, 80 cfm, 150 psi Max Op Pressure
Item: BT6UPPModel: 06F26ACCross Ref: 409X71
7 In Stock
Ships within 2 days via
10.00% off
€249.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Air Inlet Size | 3/8" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/8" |
| Air Outlet Type | NPT |
| Air Preparation Product Type | Particulate Filter |
| Air Preparation Series | General Industrial Series |
| Body Material | Zinc |
| Bowl Size | 4.4 oz. |
| Bowl Size - Air Treatment | 4.4 oz. |
| Bowl Type | Poly With Bowl Guard |
| Connection Style | Air Line |
| Depth | 2 3/4" |
| Differential Pressure Indicator Included | No |
| Drain Included | Yes |
| Drain Part Compatbility | PS506P |
| Drain Port Size | 1/8" |
| Drain Type | Automatic |
| Duty Rating | Heavy Duty |
| Element Rating | 5 µm |
| Filter Bowl Capacity | 4.4 oz. |
| Filter Bowl Guard Included | Yes |
| Filter Bowl Guard Material | Steel |
| Filter Bowl Material | Polycarbonate |
| Filter Drain Type | Auto Float |
| Filter Element Material | Plastic |
| Filter Media | Polypropylene |
| Filter Rating | 40 µm |
| Filter Type | Particulate |
| Flow Range | 75-99 SCFM |
| For Fluid Type | Oil, Water |
| For Removal Of | Particles, Water |
| For Substance Type | Liquid Water, Oil, Particles |
| Gauge Included | No |
| Height | 6 1/4" |
| Housing Material | Die Cast Zinc |
| Includes | Air Filter, Auto Float Drain, Metal Bowl Guard, Polycarbonate Bowl |
| Max. Flow Rate | 80 CFM |
| Max. Incoming Pressure | 150 psi |
| Max. Operating Pressure | 150 psi |
| Max. Pressure | 150 psig |
| Maximum Operating Temperature | 125°F |
| Minimum Operating Temperature | 32°F |
| Modular Connection | Modular Connection |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Operating Temp. Range | 0°C to 52°C |
| Overall Depth | 2 3/4" |
| Overall Height | 6 1/4" |
| Overall Width | 2 13/16" |
| Port Inch/bsp | NPT |
| Port Size | 3/8" |
| Port Type | NPT |
| Pressure Drop | 5 psig |
| Seal Material | Nitrile |
| Series | 06F COMPACT Series |
| Size - Air Treatment | Compact |
| Supply Pressure Range | 15 psig to 150 psig |
| System Location | Air Line |
| Type | Particulate |
| Weight | 1.4 lbs. |
| Width | 2 13/16" |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 7.14 |
| Country of Origin | US |
Product Variants
| Product | Model | Air Inlet Size | Max. Flow Rate | Air Outlet Size | Drain Type | Drain Part Compatbility | Filter Type | Filter Rating | Air Inlet Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
06F16AC | 1/4" | 53 CFM | 1/4" | Automatic | PS506P | Particulate | 40 µm | NPT | €277.14 | |
 |

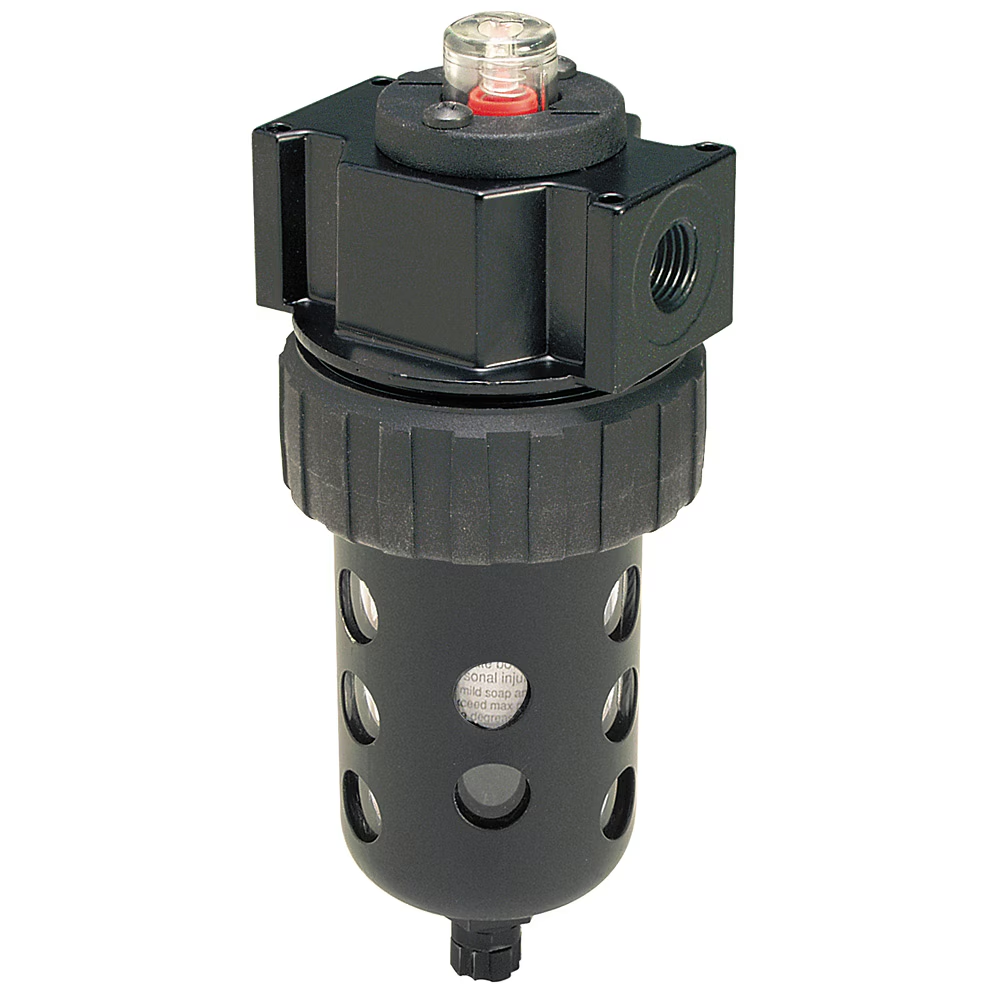

06F18AC | - | - | - | - | - | - | - | - | €244.67 | RFQ
|
 |

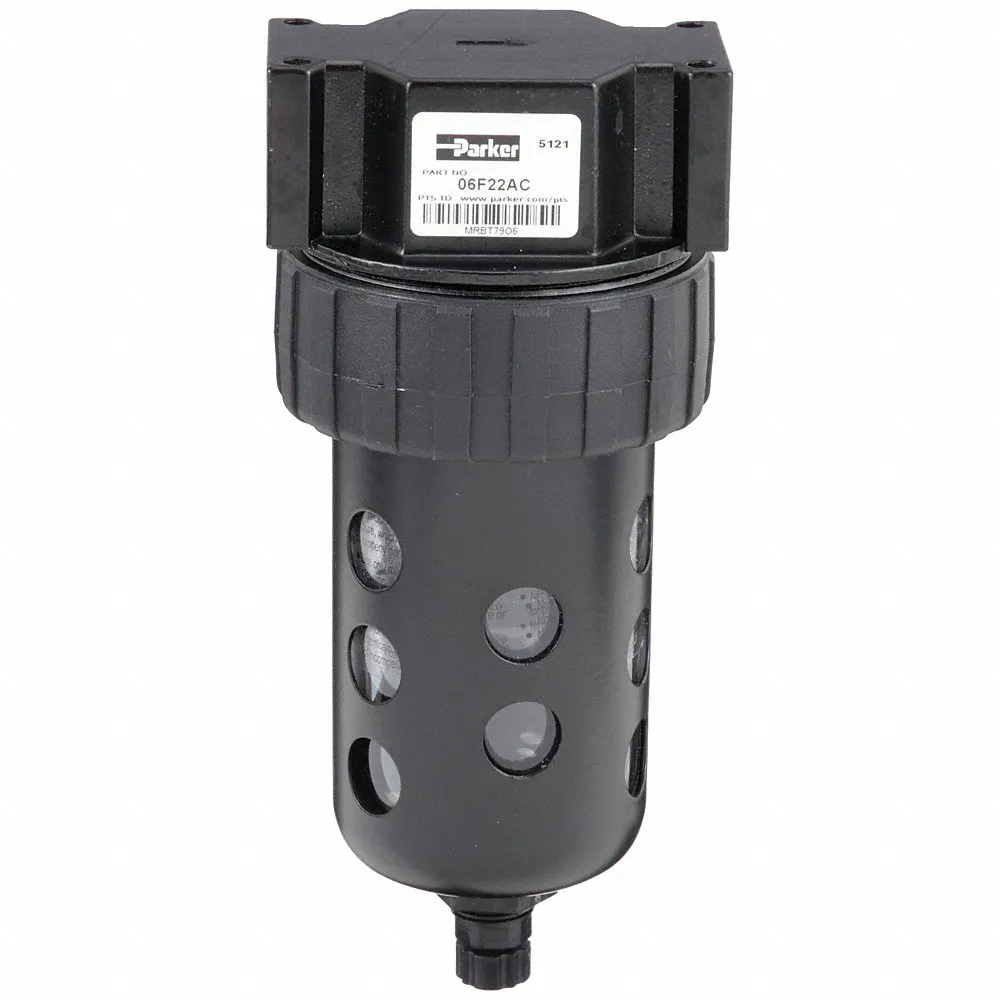

06F22AC | 3/8" | 80 CFM | 3/8" | Manual | PS512P | Particulate | 40 µm | NPT | €192.45 | |
 |

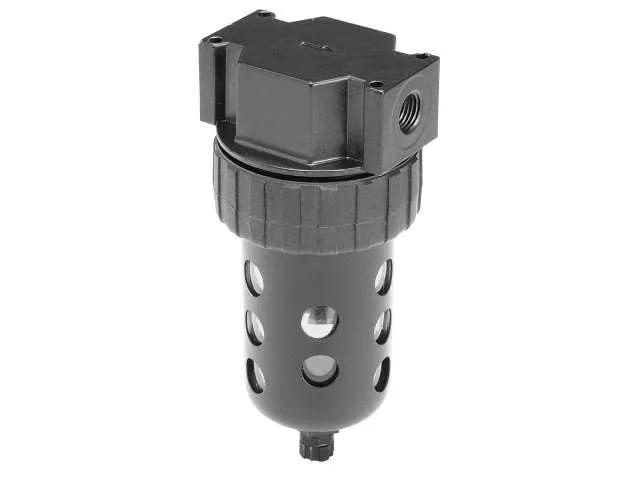

06F24AC | - | - | - | - | - | - | - | - | €169.86 | RFQ
|
|
06F28AC | - | - | - | - | - | - | - | - | €244.67 | RFQ
|
 |

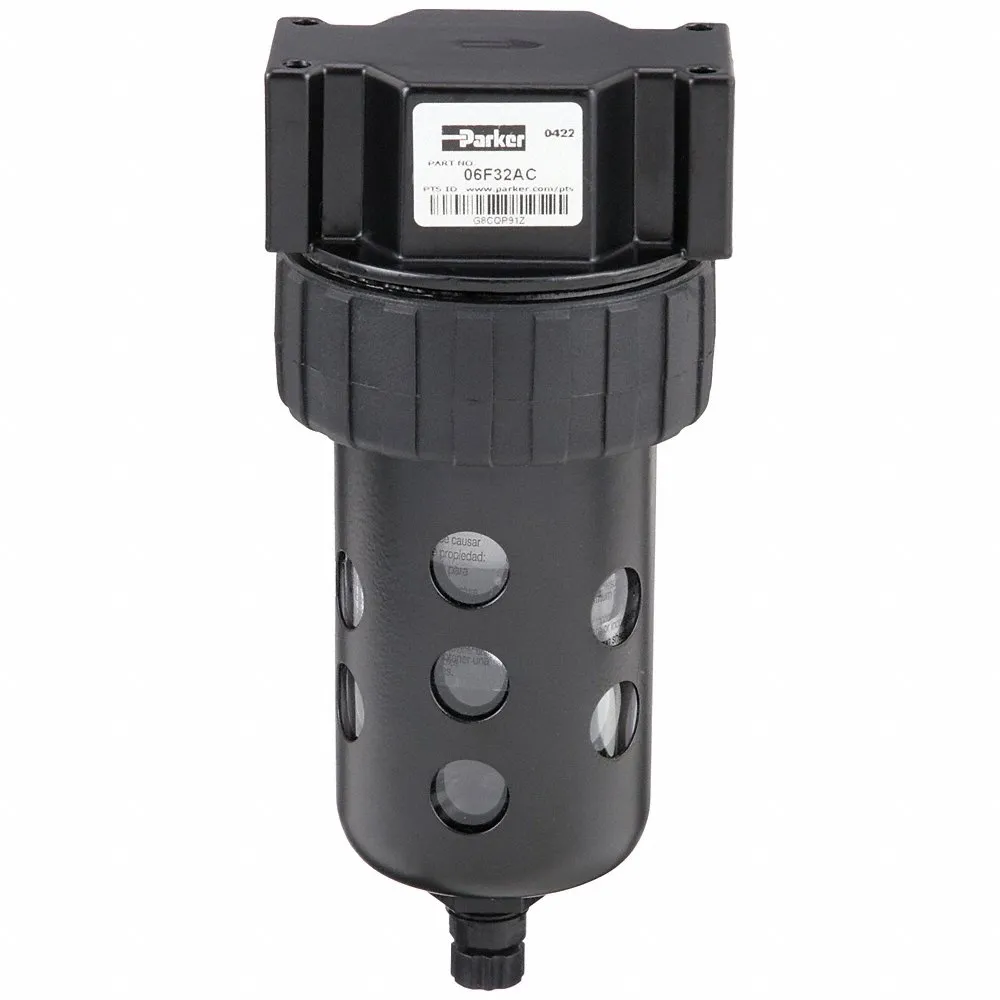

06F32AC | 1/2" | 85 CFM | 1/2" | Manual | PS512P | Particulate | 40 µm | NPT | €189.35 | |
|
06F34AC | - | - | - | - | - | - | - | - | €169.86 | RFQ
|
