PANDUIT PV10-38R-L Ring Terminal 3/8 Inch Yellow 600V
Item: AH8YCTModel: PV10-38R-LCross Ref: 39AZ96
7 In Stock
Ships within 2 days via
5.00% off
€109.20 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ring Terminal |
| Barrel Type | Funnel |
| Base Material | Copper |
| Color | Yellow |
| Color Code | Yellow |
| Commodity Code | 64110 |
| Commodity Level Descrip | Small Terminals, Connectors |
| Connection Material | Copper |
| Connector Plating | Tin |
| Connector Type | Ring Terminal |
| Contact Material | Copper |
| Features | Funnel Entry |
| Finish | TiN Plated |
| Flammability Rating | Ul94V-0 |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Height | 110.49 mm |
| Insulation Color | Yellow |
| Insulation Dia. | 0.23" |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Length | 1.3" |
| Material | Copper |
| Max. Conductor Size | 10 AWG |
| Max. Copper Conductor Size | #10 AWG |
| Max. Metric Conductor Size | 6 sq. mm |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Max. Wire Insulation Dia. | 5.8 mm |
| Max. Wire Size | 10 AWG |
| Min. Copper Conductor Size | #12 AWG |
| Min. Metric Conductor Size | 4 sq. mm |
| Min. Wire Size | 12 AWG |
| Overall Length | 1.31" |
| Product Color | Yellow |
| Product Material | Copper |
| Seam | Brazed |
| Seam Style | Brazed |
| Seam Type | Brazed |
| Stud Size | 3/8" |
| Terminal Type | Ring Tongue |
| Tongue Thickness | 1 mm |
| Tongue Width | 0.58" |
| Type | Funnel Entry |
| Width | 3/5" |
| Wire | 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 3.33 |
| Ship width (cm) | 3.33 |
| Country of Origin | US |
Product Variants
| Product | Model | Stud Size | Max. Voltage | Insulation Color | Color | Insulation Type | Wire | Seam | Tongue Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PV10-10R-D | #10 | 600V | Yellow | - | Vinyl | 12 AWG to 10 AWG | Brazed | 0.31" | 500 | €332.12 | |
|
PV10-10R-L | #10 | 600V | Yellow | Yellow | Vinyl | 12 AWG to 10 AWG | Brazed | 0.31" | 50 | €92.38 | |
 |
PV10-12R-Q | 1/2" | 600V | - | - | Vinyl | - | Brazed | 0.72" | 25 | €94.36 | |
 |
PV10-14R-D | 1/4" | 600V | Yellow | Yellow | Vinyl | 12 AWG to 10 AWG | Brazed | 0.38" | 500 | €229.68 | |
 |
PV10-14R-L | 1/4" | 600V | Yellow | Yellow | Vinyl | 12 AWG to 10 AWG | Brazed | 0.38" | 50 | €112.37 | |
 |
PV10-38R-D | 3/8" | 600V | Yellow | Yellow | Vinyl | 12 AWG to 10 AWG | Brazed | 0.58" | 500 | €245.52 | |
 |

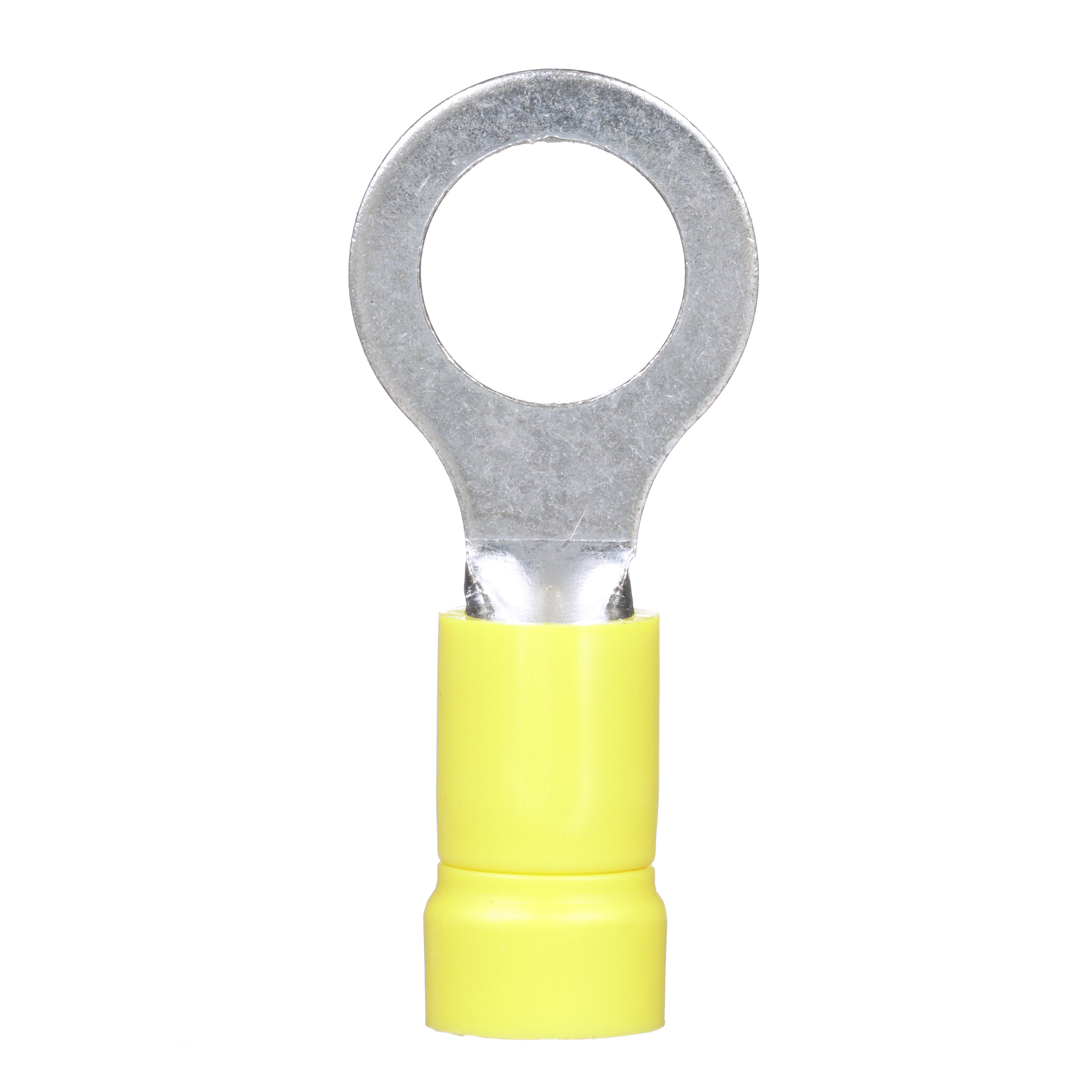

PV10-56R-D | 0.312" | 600V | Yellow | Yellow | Vinyl | 12 AWG to 10 AWG | Brazed | 13/25" | 500 | €245.52 |
