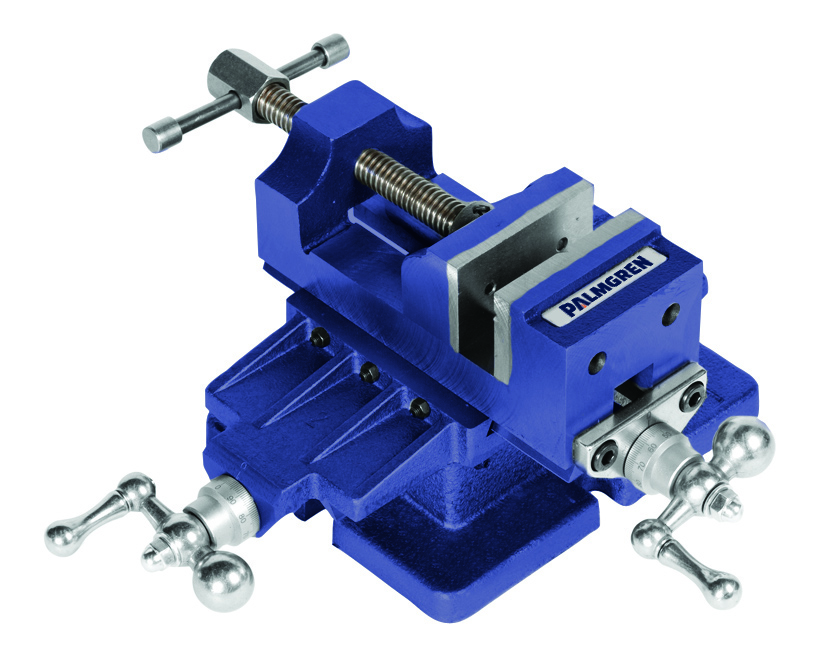

PALMGREN 9630301 32 Cross Vise, 3 Inch Size
Get it by Monday, Dec 22
10.00% off
€1,369.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cross Vise |
| Adjustment Graduation | 0.001" |
| Base Type | Fixed |
| Bed/base | 0.001" |
| Features | Built On The Same Cross Slide Base As Our Cross Slide Tables, Counter Balance Steel Ball Crank Handles That Clear The Machine Table, Easily Convert From A Cross Slide Vise To A Traditional Vise By Simply Removing The Screws And The Base, Feed Screws Are Precision Cut Acme Threads |
| Jaw Deflection | .0.002" At 2000 lbs |
| Jaw Deflection | 0.002" @ 2000 lbs. |
| Jaw Deflection - Maximum | 0.002" |
| Jaw Face Type | Smooth, V Grooved |
| Jaw Face Width | 3" |
| Jaw Material | Steel |
| Jaw Opening | 3" |
| Jaw Plate | 0.002" |
| Jaw Type | Grooved |
| Jaw Width | 3" |
| Lead Screw Type | ACME |
| Machine Vise Type | Cross Slide |
| Max Bed/base Parallel Tolerance | 0.0001" |
| Max Clamping Force | 3000 lbf. |
| Max Jaw Opening | 3" |
| Max X-axis Travel | 4" |
| Max Y-axis Travel | 4" |
| Mounting Slot Length | 1" |
| Mounting Slot/keyway Width | 5/8" |
| Mounting Type | Bolt Lugs |
| Overall Height | 6" |
| Overall Length | 14" |
| Overall Width | 14.3" |
| Throat Depth | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 13.1 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 36.2 |
| Ship width (cm) | 36.2 |
| HS code | 8205700060 |
| Country of Origin | TW |
Product Details:
- 4KXF3 is a suggested replacement of 31LZ56
