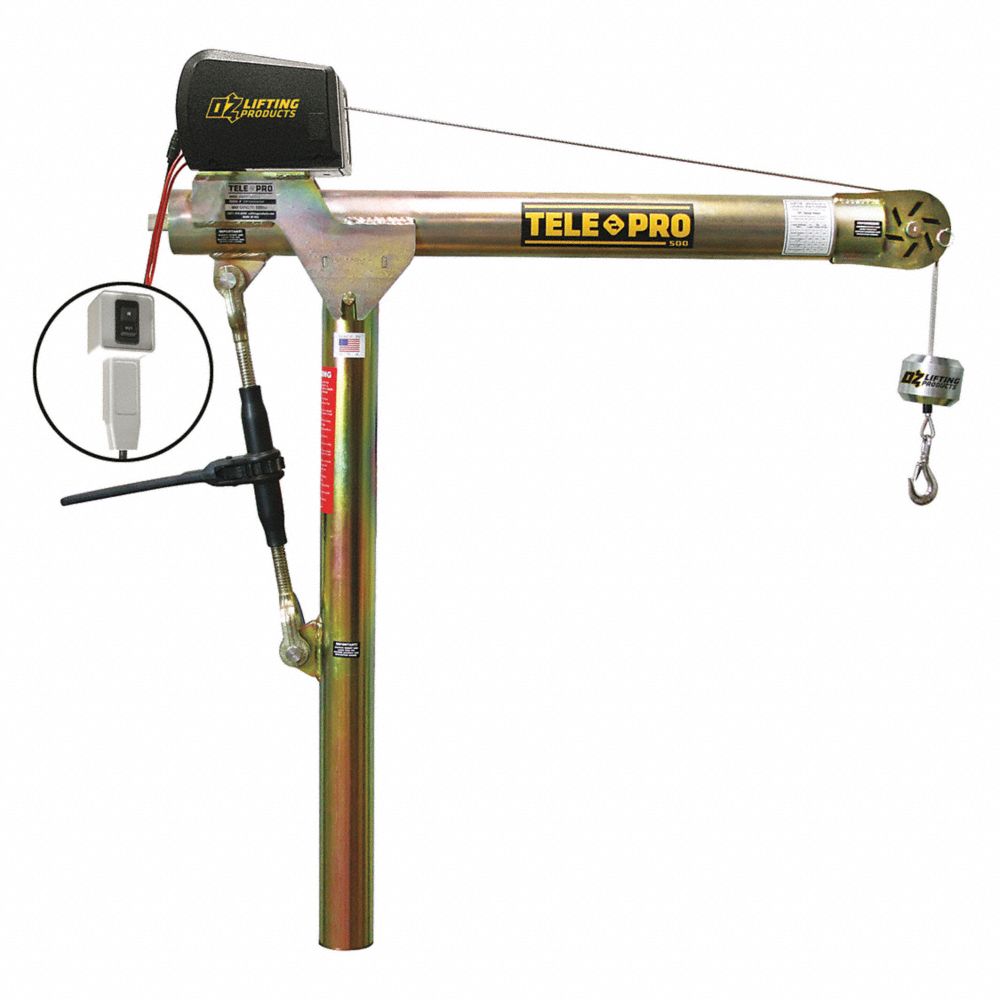

OZ LIFTING PRODUCTS OZTP500DAV-DCW Davit Crane, 500 lb, 36 to 66 Inch Reach, 40 to 84 Inch Lift Range
Get it by Monday, Aug 31
€3,176.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Davit Crane |
| Boom Length | 23" to 66" |
| Boom Length Adjustability | Expandable |
| Boom Weight | 88 lbs. |
| Capacity | 500 lbs. |
| Color | Yellow |
| Compatible Base Grainger Part No. | 55VE66, 55VE67, 55VE68 |
| Compatible Base Grainger Part Number | 55VE66,55VE67,55VE68 |
| Compatible Base Manufacturer Part Number | Ozped2-Tp, Ozsoc2-Tp, Ozwall2-Tp |
| Control Type | Wired Control |
| Height Under Boom | 66" |
| Lift | 40" to 84" |
| Lift Height | 3.3 ft. to 7 ft. |
| Mast Dia. | 2.93" |
| Mast Weight | 23 lbs. |
| Material | Steel |
| Max. Adjustable Boom Length | 66" |
| Max. Extended Arm Load Capacity | 500 lbs. |
| Max. Lifting Height | 7 ft. |
| Max. Load Capacity | 500 lbs. |
| Min. Adjustable Boom Length | 23" |
| Min. Lifting Height | 3.3 ft. |
| No. Of Boom Length Positions | 4 |
| Operating Voltage | 12V DC |
| Overall Fixed Boom Length | 66" |
| Overall Weight | 111 lbs. |
| Reach | 36" to 66" |
| Resistance Properties | Corrosion Resistant |
| Swivel Angle | 360° |
| Winch Type | Electric |
Shipping Info:
| Ship weight (kg) | 66.6 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 152.4 |
| Ship width (cm) | 55.88 |
| Country of Origin | US |
Product Variants
| Product | Model | Control Type | Winch Type | Operating Voltage | Color | Mast Dia. | Min. Lifting Height | Material | Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
OZTP500DAV | Manual Handle | Manual | - | Yellow | 2.93" | 3.3 ft. | Steel | 500 lbs. | €2,224.36 | |
 |

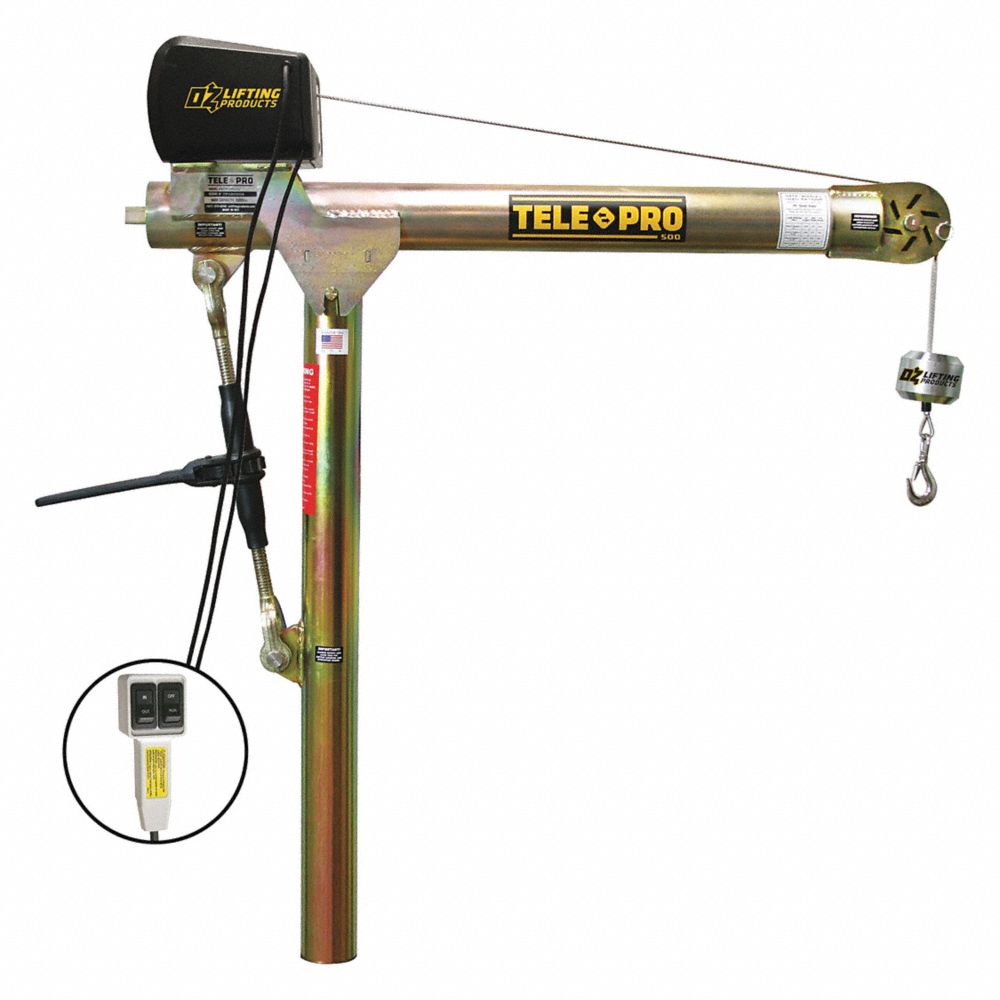

OZTP500DAV-ACW | Wired Control | Electric | 115V AC | Yellow | 2.93" | 3.3 ft. | Steel | 500 lbs. | €3,065.23 |
