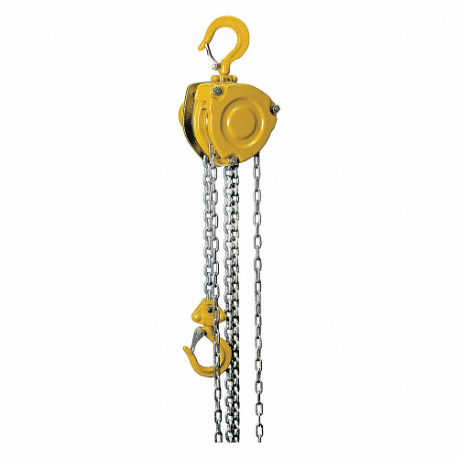

OZ LIFTING PRODUCTS OZIND025-10CH Manual Chain Hoist, 500 lb Load Capacity, 27 lb Pull to Lift Rated Load
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€179.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Manual Chain Hoist |
| Body Depth | 4 1/32" |
| Body Finish | Powder Coated |
| Body Material | Steel |
| Body Width | 4 3/16" |
| Brake Type | Weston Style |
| Chain Finish | Zinc Plated |
| Chain Grade | Grade 80 |
| Color | Gray |
| Features | Forged Alloy Steel Hooks, Fully-Enclosed Gearing, Load Sheave Bearings, Thrust Bearing On Lower Hook Twin Pawl Design |
| Finish | Powder Coated |
| For Max. Beam Flange Height | Not Applicable |
| For Maximum Beam Flange Width | Not Applicable |
| For Min. Beam Flange Height | Not Applicable |
| For Minimum Beam Flange Width | Not Applicable |
| Headroom | 10 3/16" |
| Hoist Lift | 10 ft. |
| Hoist Mount | Hook Mounted No Trolley |
| Hoist Overload Protection | No |
| Hook Opening | 1 1/16" |
| Housing Depth | 7 1/2" |
| Housing Length | 4 19/64" |
| Housing Width | 3 3/4" |
| Includes | Carrying Case |
| Includes Brake | Brake Included |
| Includes Clutch | Not Applicable |
| Lever Length | Not Applicable |
| Lift Length | 10 ft. |
| Lifting Capacity | 500 lbs. |
| Lifting Hook Material | Forged Steel |
| Lifting Hook Opening Width | 1 5/16" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Load Capacity | 500 lbs. |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 10" |
| Minimum Retracted Length | 10 3/16" |
| Mount Type | Hook Mounted - No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Operating Position | Not Applicable |
| Overload Protection Included | No |
| Power Source | Manual |
| Pull Force To Lift Rated Load | 55 lbs. |
| Pull To Lift Rated Load | 27 lbs. |
| Tonnage - Lifting Capacity | 0.25 ton. |
Shipping Info:
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 12.7 |
| HS code | 8425190000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Lift Length | Lifting Hook Type | Overload Protection Included | Body Material | Headroom | Lifting Hook Opening Width | Body Width | Body Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
OZ005-10CHOP | 10 ft. | Hook With Safety Latch | Yes | Steel | 10 3/4" | 1 3/32" | 5 27/32" | 5 3/16" | €193.22 | |
|
OZ005-20CHOP | 20 ft. | Hook With Safety Latch | Yes | Steel | 10 3/4" | 1 3/32" | 5 27/32" | 5 3/16" | €263.13 | |
 |
OZ010-10CHOP | 10 ft. | Hook With Safety Latch | Yes | Steel | - | - | - | - | €217.33 | |
|
OZ010-20CHOP | 20 ft. | Hook With Safety Latch | Yes | Steel | - | - | - | - | €287.25 | |
|
OZ015-10CHOP | 10 ft. | Hook With Safety Latch | Yes | Steel | 15 3/4" | 1 13/32" | 7 23/32" | 6 13/16" | €284.95 | |
|
OZ015-20CHOP | 20 ft. | Hook With Safety Latch | Yes | Steel | 15 3/4" | 1 13/32" | 7 23/32" | 6 13/16" | €370.58 | |
 |
OZ020-10CHOP | 10 ft. | Hook With Safety Latch | Yes | Steel | - | - | - | - | €318.56 |
