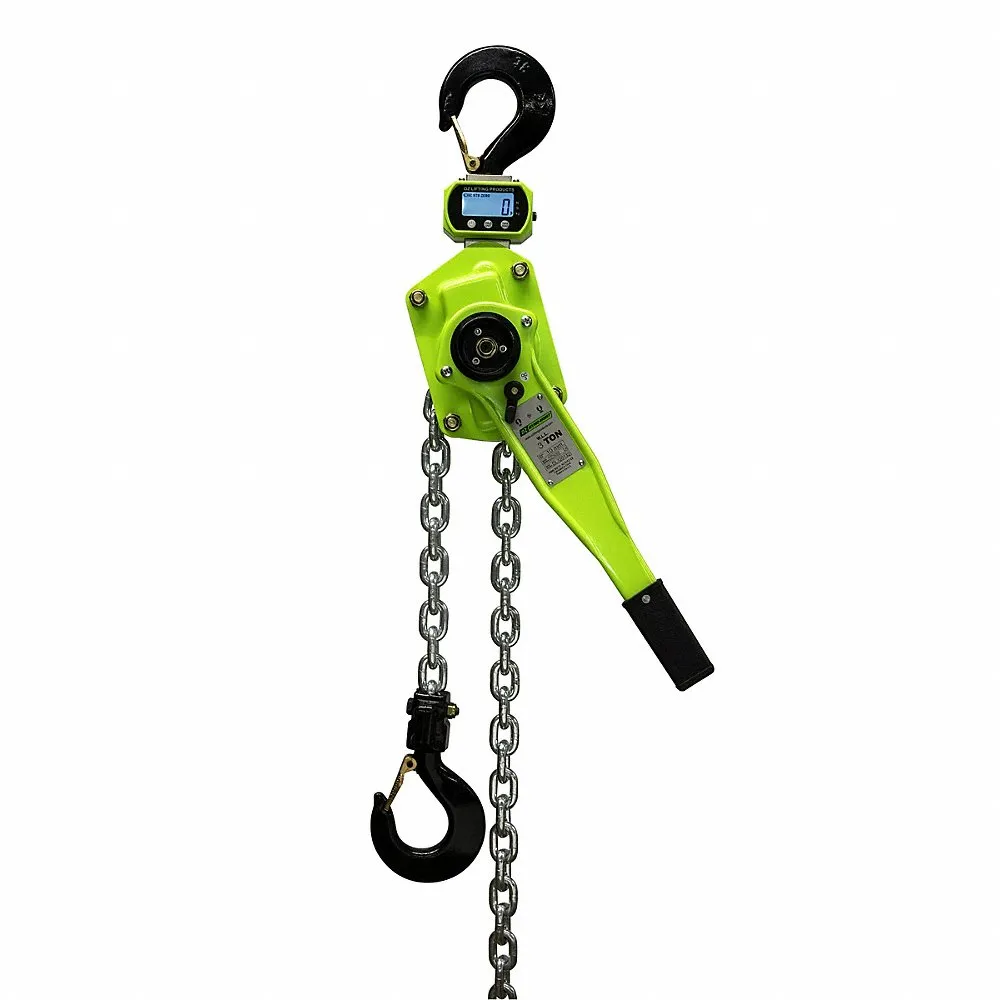

OZ LIFTING PRODUCTS OZDH300-10LH Lever Chain Hoist, Hook Mounted - No Trolley, 6000 lb. Lifting Capacity, 3 Ton
Get it by Monday, Dec 22
10.00% off
€1,337.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Body Material | Steel |
| Brake Type | Weston Style |
| Chain Grade | Grade 80 |
| Chain Material | Dacromet |
| Color | Green |
| Features | Cast Steel Safety Latches, Enclosed Gearing, Free Wheel Feature, Fully-Enclosed Lift Wheel, Integrated Dynamometer, 360° Handle Rotation, Sealed Roller Bearing, Stainless Steel Riveted Id Tags, Steel Handle With Rubber Grip |
| For Max. Beam Flange Height | Not Applicable |
| For Max. Beam Flange Width | Not Applicable |
| For Min. Beam Flange Height | Not Applicable |
| For Min. Beam Flange Width | Not Applicable |
| Head Room | 21 13/16" |
| Includes Brake | Brake Included |
| Includes Clutch | Not Applicable |
| Lever Length | 16 1/8" |
| Lift Length | 10 ft. |
| Lifting Capacity | 6000 lbs. |
| Lifting Hook Material | Forged Steel |
| Lifting Hook Opening Width | 1 1/2" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Maximum Pulling Capacity | Not Applicable |
| Minimum Retracted Length | 21 13/16" |
| Mounting Type | Hook Mounted - No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Operating Position | Not Applicable |
| Overload Protection Included | No |
| Power Source | Lever |
| Pull Force To Lift Rated Load | 72 lbs. |
| Tonnage - Lifting Capacity | 3 ton. |
Shipping Info:
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 20.32 |
| Country of Origin | CN |
