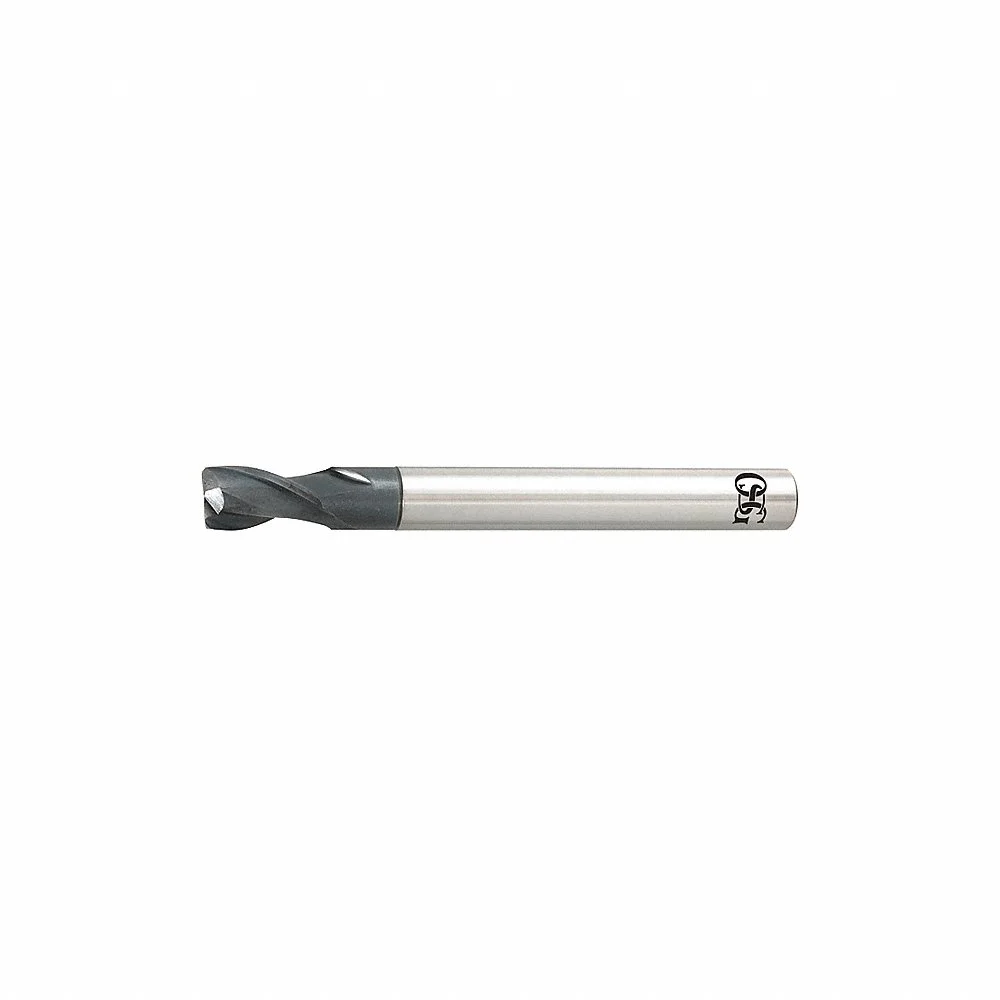

OSG HP433-3151 Corner Radius End Mill, TiAlN, 2 Flutes, 8 mm Milling Dia.
Item: CT4XWZModel: HP433-3151Cross Ref: 35CM84
7 In Stock
Ships within 2 days via
5.00% off
€98.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Corner Radius End Mill |
| Cast Iron (k) Compatibility | Yes |
| Corner Radius | 1 mm |
| Cutting Direction | Right Hand |
| Cutting Direction-machining | Right Hand |
| Cutting Length | 12 mm |
| Cutting Type | Center Cutting |
| Dimensions Type | Metric |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Style | Corner Radius |
| End Type | Single End |
| Finish | Titanium Aluminum Nitride Coating |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 35° |
| Material | Carbide |
| Material Grade-machining | General Purpose |
| Milling Dia. | 8 mm |
| Neck Dia. | 7.4 mm |
| Neck Length | 40 mm |
| No. Of Flutes | 2 |
| Non Ferrous (n) Compatibility | No |
| Overall Length | 100 mm |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, M, P, S |
| Shank Dia. | 8 mm |
| Shank Type | End Mill , Straight |
| Stainless Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Milling Dia. | Helix Angle | Overall Length | Corner Radius | Shank Dia. | List Number | Length Of Cut | Cutting Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HP432-5006 | 1/2" | 35° | 3" | 0.06" | 1/2" | HP432 | - | 1" | €134.06 | |
| HP432-2502 | 1/4" | 35° | 2 1/2" | 0.02" | 1/4" | HP432 | - | 3/4" | €49.05 | |
| HP432-1251 | 1/8" | 35° | 1 1/2" | 0.015" | 1/8" | - | - | 1/2" | €24.82 | |
| HP432-1872 | 3/16" | 35° | 2" | 0.02" | 3/16" | HP432 | - | 5/8" | €37.16 | |
| HP432-7512 | 3/4" | 35° | 4" | 1/8" | 3/4" | HP432 | - | 1 1/2" | €356.51 | |
| HP432-7509 | 3/4" | 35° | 4" | 0.09" | 3/4" | HP432 | - | 1 1/2" | €356.51 | |
| HP432-7506 | 3/4" | 35° | 4" | 0.06" | 3/4" | HP432 | - | 1 1/2" | €356.51 |
