OSG 8059301 Parallelogram Milling Insert, 6.750 Inch Inscribed Circle, 0.40 mm Corner Radius
Get it by Monday, Dec 22
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Milling Insert |
| Ansi Code | APKT0903PPR-52 |
| Ansi Number | APKT0903PPR-52 |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | Yes |
| Chip-breaker Code | 52 |
| Clearance Angle | 11° |
| Compatibility | No |
| Corner Radius | 0.4 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Finishing |
| Cutting Direction | Right Hand |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |

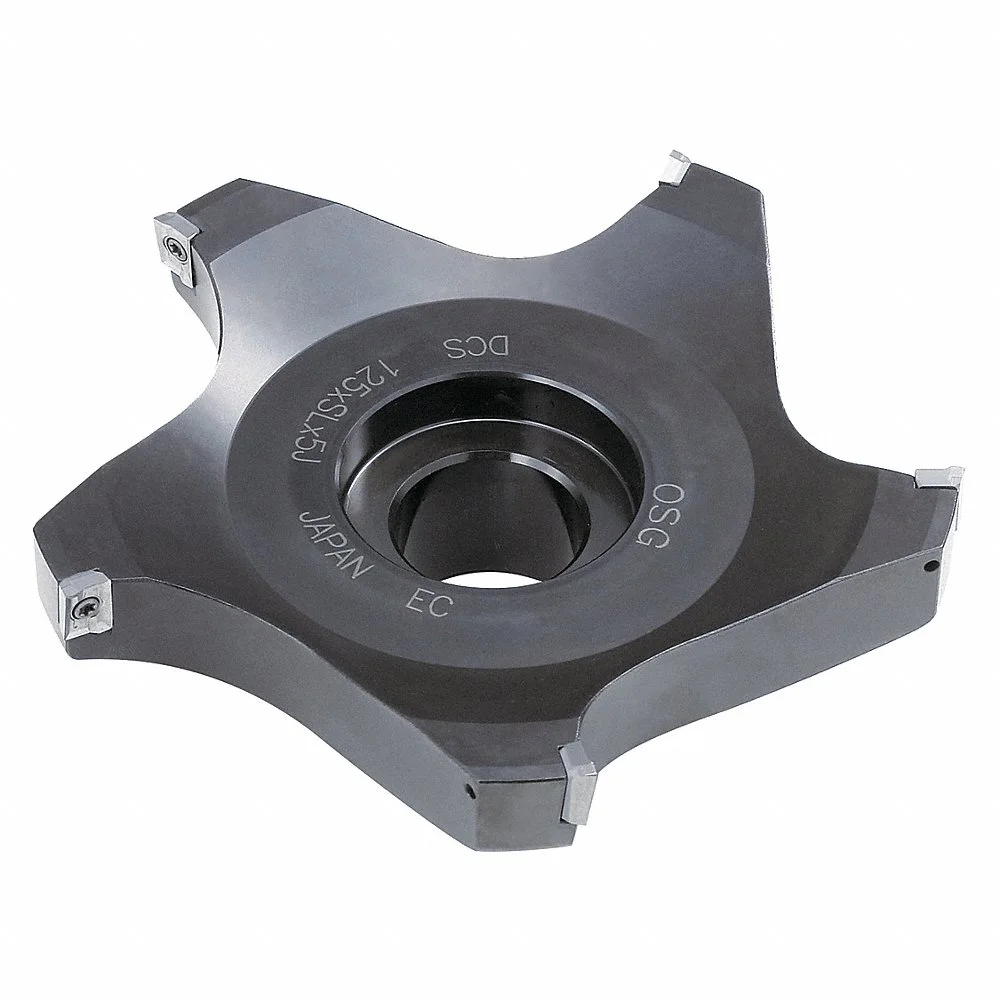

| For Toolholder | 100XSLX4J, 125XSLX5J, 80XSLX4J |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | No |
| Hole Type | 40° To 60° Countersink Hole |
| Included Angle | 85° |
| Inscribed Circle | 6 3/4" |
| Insert Application | Finishing |
| Insert Holding Type | Screw Held |
| Insert Size | 903 |
| Insert Style | APKT |
| Iso Number | APKT0903PPR-52 |
| Lead Angle | 11° |
| Manufacturer Grade | Grade K15CA |
| Material | Carbide |
| Material - Machining | Carbide |
| Mounting Style | Screw Held |
| No. Of Edges | 2 |
| Non Ferrous (n) Compatibility | No |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Cast Iron |
| Primary Material Application Iso Code | K |
| Rake | Positive |
| Series | EXOCARB DISC CUTTER Series |
| Shape | Parallelogram |
| Stainless Compatibility | No |
| Style | APKT |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 3.18" |
| Width | 6.75 mm |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Corner Radius | Inscribed Circle | Thickness | Iso Number | Ansi Number | Insert Size | Shape | No. Of Edges | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 52201050 | 0.015" | 3/8" | 2.6 mm | PFR0375R015-SH | - | 375 | Parallelogram | 1 | €127.72 | |
| 52201000 | 0.015" | 3/8" | 2.6 mm | PFR0375R015-ST | PFR0375R015-ST | 375 | Parallelogram | 1 | €127.72 | |
| 52201100 | 0.015" | 3/8" | 2.6 mm | PFR0375R015A-D | PFR0375R015A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201101 | 0.03" | 3/8" | 2.6 mm | PFR0375R030A-D | PFR0375R030A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201001 | 0.03" | 3/8" | 2.6 mm | PFR0375R030-ST | PFR0375R030-ST | 375 | Parallelogram | 1 | €127.72 | |
| 52201102 | 0.06" | 3/8" | 2.6 mm | PFR0375R060A-D | PFR0375R060A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201002 | 0.06" | 3/8" | 2.6 mm | PFR0375R060-ST | PFR0375R060-ST | 375 | Parallelogram | 1 | €127.72 |
