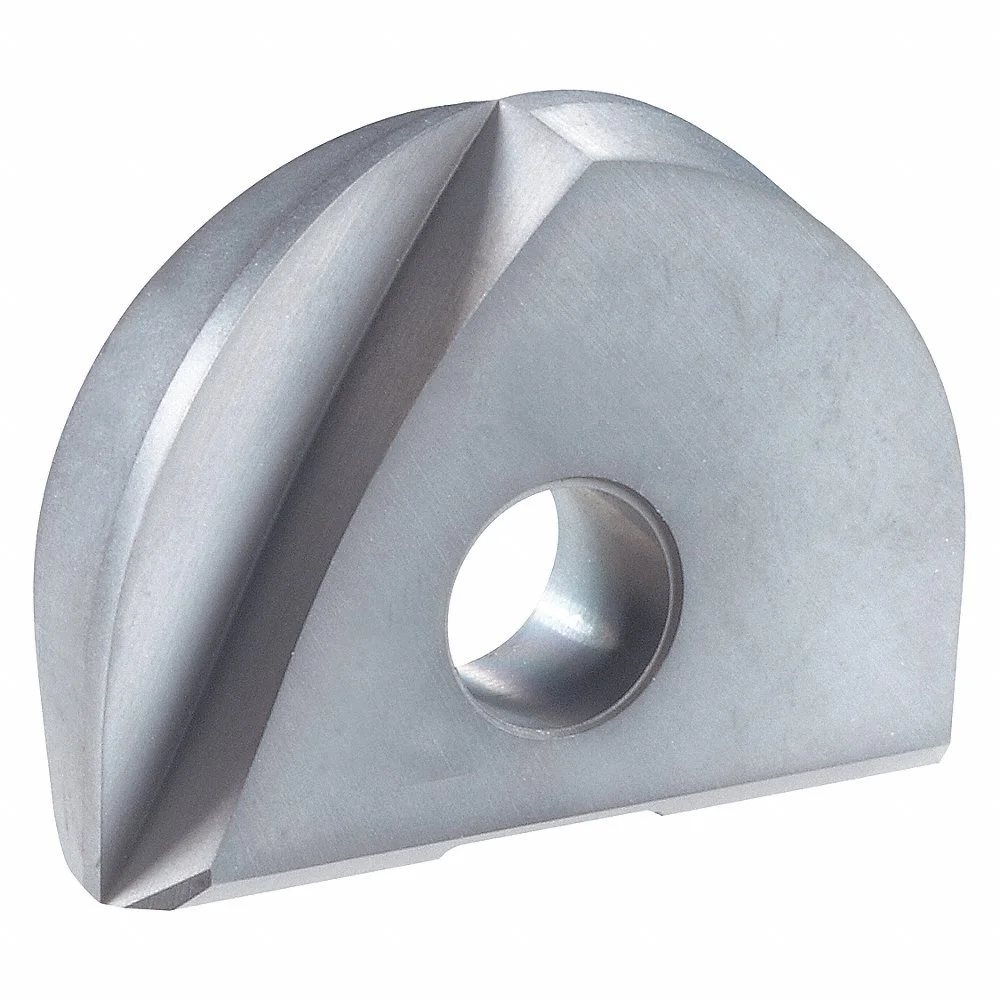

OSG 7820035 Ball Nose Milling Insert, 25.00 mm Inscribed Circle, 12.50 mm Corner Radius, 6.00 mm Thick
Item: CT6GENModel: 7820035Cross Ref: 53HN91
7 In Stock
Ships within 2 days via
10.00% off
€166.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | Yes |
| Chip-breaker Code | SP |
| Coating | PVD |
| Coating Process | PVD |
| Compatibility | Yes |
| Corner Radius | 12.5 mm |
| Cutting Application | Finishing |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 25 mm |
| Features | Composed Of A Tough Carbide Material With An Excellent General Purpose Coating |
| For Toolholder | PFB-R100SF6, PFB-R120SF6, PFB-R160SF8, PFB-R200SF10, PFB-R250SF12, PFB-R300SF16 |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | No |
| Inscribed Circle | 25 mm |
| Insert Application | Finishing |
| Insert Size | 250 |
| Insert Style | PFB |
| Iso Number | PFB250-SP |
| Manufacturer Grade | Grade XP3225 |
| Material | Carbide |
| Material - Machining | Carbide |
| Mfr. Series | 78PFB Series |
| Mounting Style | Screw |
| No. Of Edges | 1 |
| Non Ferrous (n) Compatibility | Yes |
| Number Of Cutting Edges | 1 |
| Primary Material Application | Aluminum, Stainless Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | M, N, P |
| Radius | 180° |
| Secondary Material Application | Nickel, Titanium |
| Secondary Material Application Iso Code | S |
| Shape | Ball Nose |
| Stainless Compatibility | Yes |
| Style | PFB |
| Super Alloy Compatibility | Yes |
| System Of Measurement | Metric |
| Thickness | 6 mm |
| Width | 18.5 mm |
| Workpiece Compatibility | Nonferrous, Stainless Steel, Super Alloy |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Corner Radius | Inscribed Circle | Thickness | Iso Number | Ansi Number | Insert Size | Shape | No. Of Edges | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 52201050 | 0.015" | 3/8" | 2.6 mm | PFR0375R015-SH | - | 375 | Parallelogram | 1 | €127.72 | |
| 52201000 | 0.015" | 3/8" | 2.6 mm | PFR0375R015-ST | PFR0375R015-ST | 375 | Parallelogram | 1 | €127.72 | |
| 52201100 | 0.015" | 3/8" | 2.6 mm | PFR0375R015A-D | PFR0375R015A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201101 | 0.03" | 3/8" | 2.6 mm | PFR0375R030A-D | PFR0375R030A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201001 | 0.03" | 3/8" | 2.6 mm | PFR0375R030-ST | PFR0375R030-ST | 375 | Parallelogram | 1 | €127.72 | |
| 52201102 | 0.06" | 3/8" | 2.6 mm | PFR0375R060A-D | PFR0375R060A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201002 | 0.06" | 3/8" | 2.6 mm | PFR0375R060-ST | PFR0375R060-ST | 375 | Parallelogram | 1 | €127.72 |
