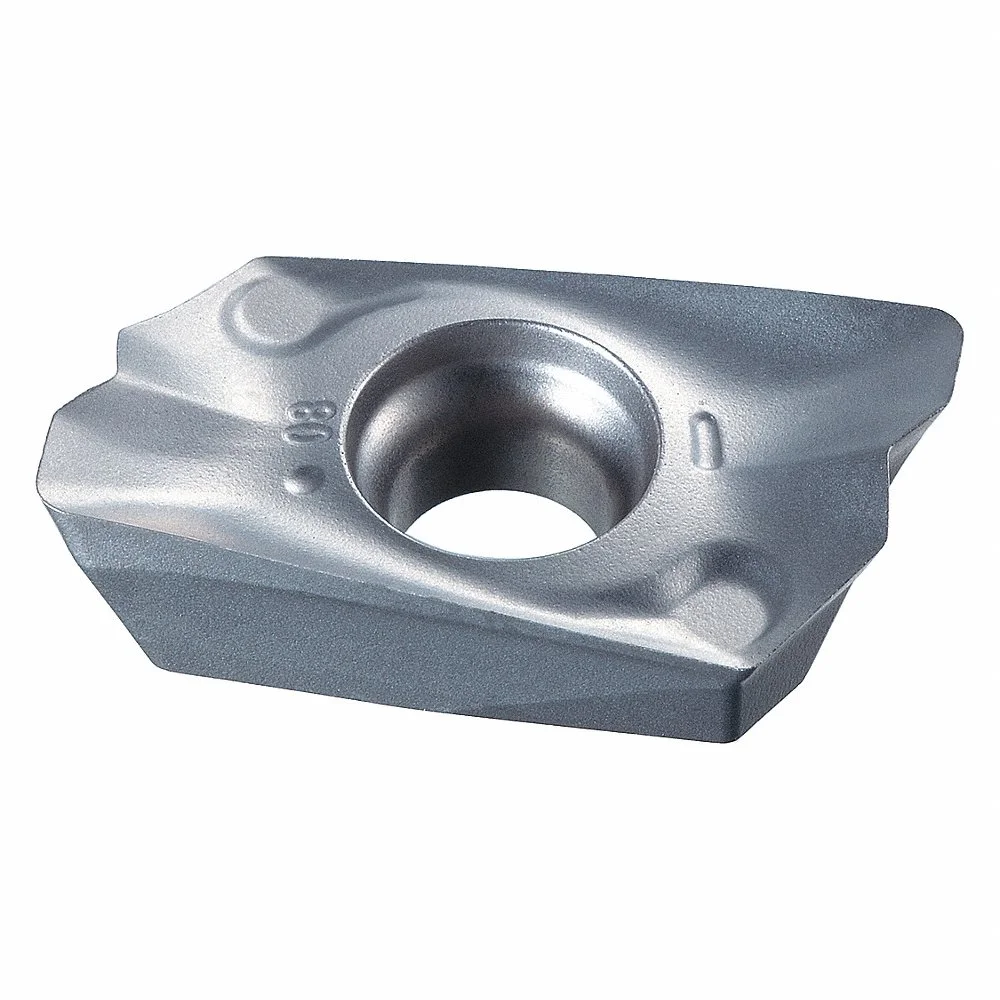

OSG 7811046 Parallelogram Milling Insert, 0.80 mm Corner Radius
Item: CT6BNXModel: 7811046Cross Ref: 48JP84
7 In Stock
Ships within 2 days via
10.00% off
€32.79 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | Yes |
| Chip-breaker Code | NM |
| Compatibility | No |
| Corner Radius | 0.8 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Medium |
| Cutting Depth | 1.6 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 15 mm |
| Features | Composed Of A Non-Coated Carbide Material With Anti-Chippingd Wear Resistant Properties |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| For Toolholder | PSE11R016SF8-2, PSE11R017SF8-2, PSE11R018SF8-2, PSE11R020SF10-3, PSE11R021SF10-3, PSE11R022SF10-3, PSE11R025SF12-4, PSE11R026SF12-3, PSE11R028SF12-4, PSE11R032SF16-5, PSE11R033SF16-3, PSE11R035SF16-5, PSE11R040SF16-6, PSE15R025SF12-2, PSE15R026SF12-2, PSE15R028SF12-2, PSE15R032SF16-3, PSE15R033SF16-3, PSE15R035SF16-3, PSE15R040SF16-4 |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | No |
| Hole Type | 40° To 60° Countersink Hole |
| Insert Application | Medium |
| Insert Holding Type | Screw |
| Insert Size | 150508 |
| Insert Style | ZDKT |
| Iso Number | ZDKT150508FR-NM |
| Manufacturer Grade | Grade CK010 |
| Material | Carbide |
| Material - Machining | Carbide |
| Mfr. Series | 78PSE |
| Mounting Hole Dia. | 4.5 mm |
| Mounting Style | Screw |
| No. Of Edges | 2 |
| Non Ferrous (n) Compatibility | Yes |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Primary Material Application Iso Code | N |
| Rake | 15° |
| Series | 78PSE Series |
| Shape | Parallelogram |
| Stainless Compatibility | No |
| Style | ZDKT |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 5.56 mm |
| Through Hole Inside Dia. | 4.5 mm |
| Width | 9.3 mm |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Corner Radius | Inscribed Circle | Thickness | Iso Number | Ansi Number | Insert Size | Shape | No. Of Edges | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 52201050 | 0.015" | 3/8" | 2.6 mm | PFR0375R015-SH | - | 375 | Parallelogram | 1 | €127.72 | |
| 52201000 | 0.015" | 3/8" | 2.6 mm | PFR0375R015-ST | PFR0375R015-ST | 375 | Parallelogram | 1 | €127.72 | |
| 52201100 | 0.015" | 3/8" | 2.6 mm | PFR0375R015A-D | PFR0375R015A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201101 | 0.03" | 3/8" | 2.6 mm | PFR0375R030A-D | PFR0375R030A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201001 | 0.03" | 3/8" | 2.6 mm | PFR0375R030-ST | PFR0375R030-ST | 375 | Parallelogram | 1 | €127.72 | |
| 52201102 | 0.06" | 3/8" | 2.6 mm | PFR0375R060A-D | PFR0375R060A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201002 | 0.06" | 3/8" | 2.6 mm | PFR0375R060-ST | PFR0375R060-ST | 375 | Parallelogram | 1 | €127.72 |
