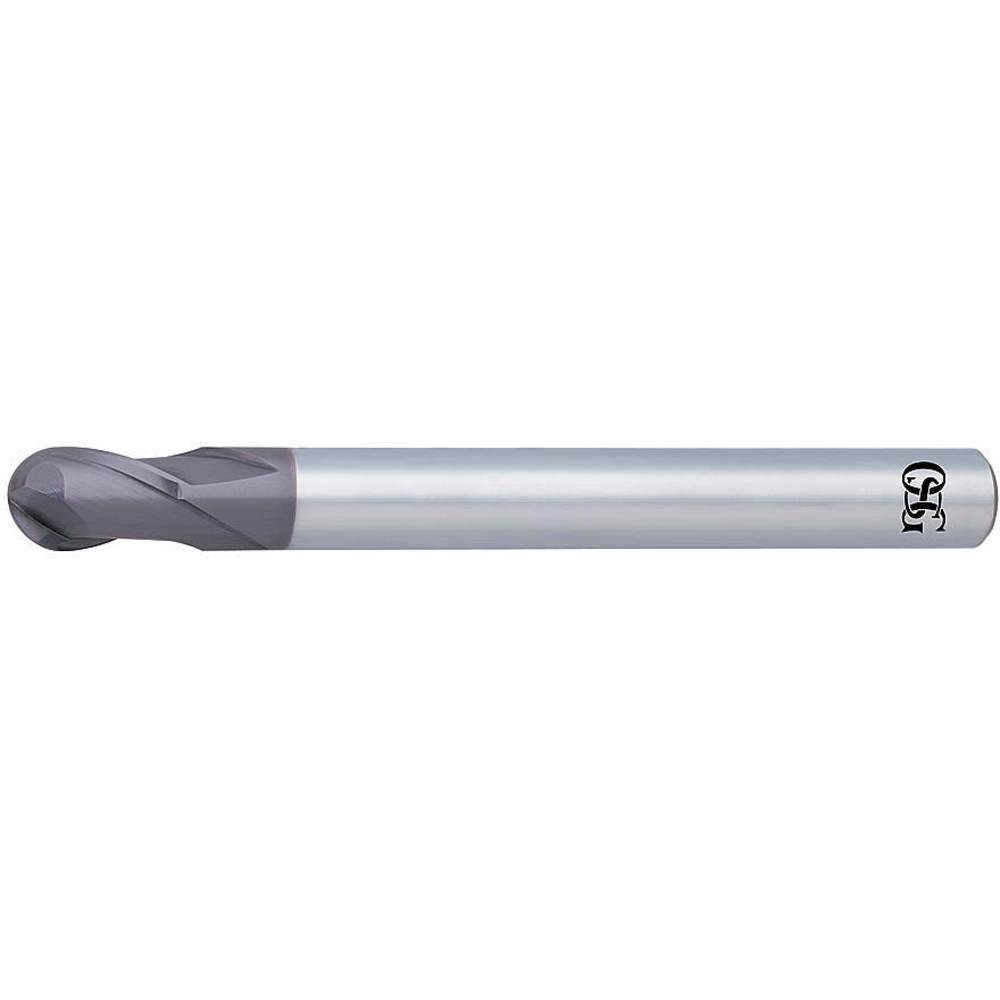

OSG 44101111 Carbide End Mill Ball 1/4 Inch Diameter Wxs
Item: AG3NLJModel: 44101111Cross Ref: 33PA89
7 In Stock
Ships within 2 days via
10.00% off
€138.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Carbide End Mill |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | No |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 1/4" |
| Cutting Type | Center |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End Type | Single End |
| Finish | WXS |
| Finish - Machining | WXS |
| Grade | Micrograin Carbide |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | 4410 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | Micrograin |
| Milling Dia. | 1/4" |
| Neck Length | 1/2" |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 2 |
| Overall Length | 3" |
| Primary Material Application | Cast Iron, Hardened Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, P |
| Shank Dia. | 1/4" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Single End/double End | Single End |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 1.27 |
| HS code | 8207706030 |
Product Details:
- Cast Iron (K) Compatibility (Yes)
- Hardened (H) Compatibility (Yes)
- Stainless (M) Compatibility (Yes)
- Steel (P) Compatibility (Yes)
Product Variants
| Product | Model | Number Of Flutes | End Mill Style | Shank Dia. | Finish | List Number | Overall Length | Grade | Milling Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3050602 | 2 | Ball Nose | 4 mm | WXS | 4590 | 45 mm | Micrograin Carbide | 0.6 mm | €111.80 | |
|
3051004 | 2 | Ball Nose | 4 mm | WXS | 4590 | 45 mm | Micrograin Carbide | 1 mm | €104.14 | |
|
3051008 | 2 | Ball Nose | 4 mm | WXS | 4590 | 45 mm | Micrograin Carbide | 1 mm | €107.44 | |
|
3052010 | 2 | Ball Nose | 4 mm | WXS | 4590 | 45 mm | Micrograin Carbide | 2 mm | €106.59 | |
 |
3102001 | 2 | Corner Radius | 4 mm | WXS | 4592 | 50 mm | Micrograin Carbide | 2 mm | €118.28 | |
|
3102007 | 2 | Corner Radius | 4 mm | WXS | 4592 | 50 mm | Micrograin Carbide | 2 mm | €125.00 | |
 |
36041411 | 4 | Square | 1/2" | WXL | 3604 | 3" | Micrograin Carbide | 1/2" | €216.75 |
