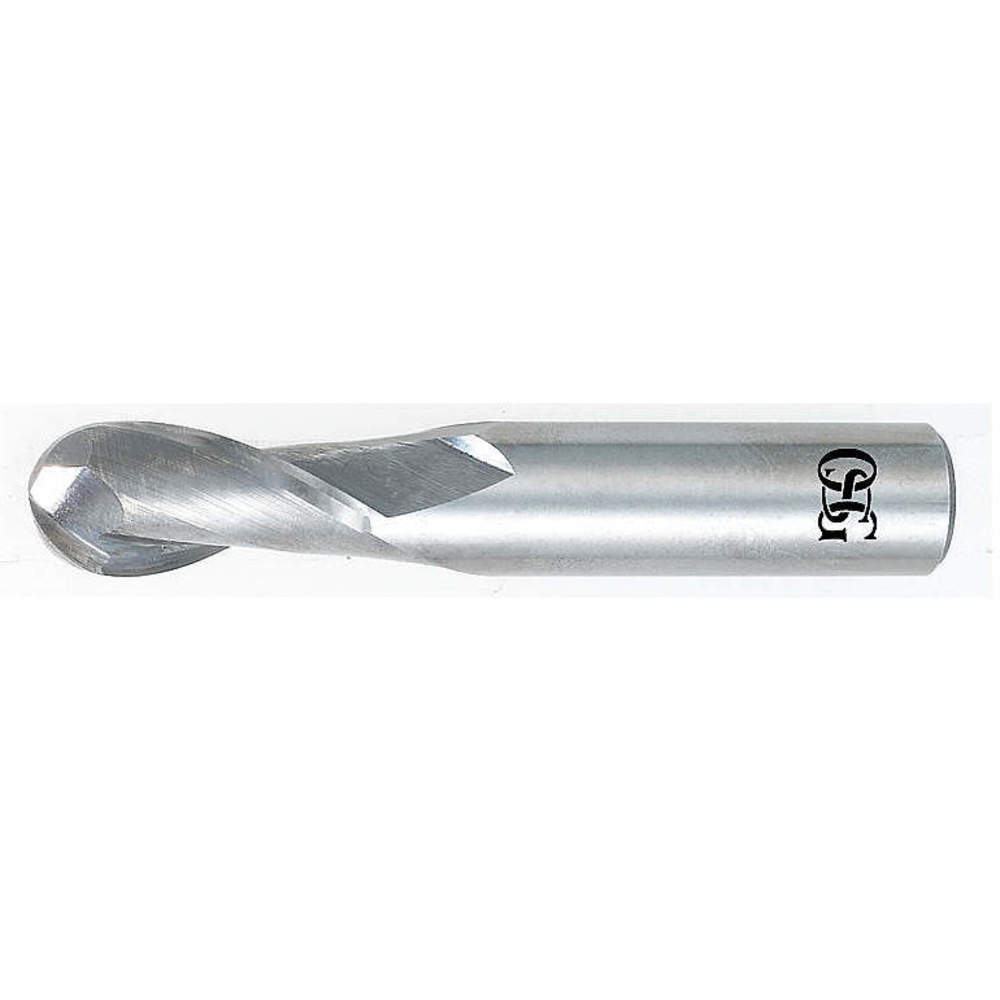

OSG 402-6875-BN Ball End Mill, 2 Flutes, 11/16 Inch Milling Dia., 1-3/8 Inch Lg of Cut, 30 Deg. Helix Angle, Bright
Item: AC4VAJModel: 402-6875-BNCross Ref: 30L946
7 In Stock
Ships within 2 days via
€205.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Cast Iron (k) Compatibility | Yes |
| Chip Breaker | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 1 3/8" |
| Cutting Type | Center |
| Dimensions Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End | Center Cutting |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End Type | Single End |
| Finish | Bright |
| Finish-machining | Bright (Uncoated) |
| Grade | High Performance |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | 402BN |
| Material | Carbide |
| Material Grade-machining | High Performance |
| Material-machining | Carbide |
| Milling Dia. | 11/16" |
| Neck Length | Not Applicable |
| No. Of Flutes | 2 |
| Non Ferrous (n) Compatibility | Yes |
| Overall Length | 4" |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, N, P |
| Shank Dia. | 3/4" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Single End/double End | Single End |
| Stainless Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Fractional Inch |
| Type | Regular |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 11.43 |
| HS code | 8207703030 |
| Country of Origin | US |
Product Variants
| Model | Milling Dia. | Finish | Overall Length | Shank Dia. | Length Of Cut | Cutting Length | End Mill Style | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 402-0197-BN | 0.5 mm | Bright | 39 mm | 3 mm | - | 1.5 mm | Ball Nose | Carbide | €41.28 | |
| 402-0197-BN11 | 0.5 mm | TiAlN | 39 mm | 3 mm | - | 1.5 mm | Ball Nose | Carbide | €40.92 | |
| 402-0312-BN11 | 1/32" | TiAlN | 1 1/2" | 1/8" | - | 1/8" | Ball Nose | Carbide | €32.56 | |
| 402-0394-BN | 1 mm | Bright | 39 mm | 3 mm | - | 3 mm | Ball Nose | Carbide | €27.11 | |
| 402-0394-BN11 | 1 mm | TiAlN | 39 mm | 3 mm | - | 3 mm | Ball Nose | Carbide | €31.05 | |
| 402-0469-BN | 3/64" | Bright | 1 1/2" | 1/8" | 9/64" | 0.141" | Ball Nose | Carbide | €20.58 | |
| 402-0469-BN11 | 3/64" | TiAlN | 1 1/2" | 1/8" | 9/64" | 0.141" | Ball Nose | Carbide | €22.82 |
