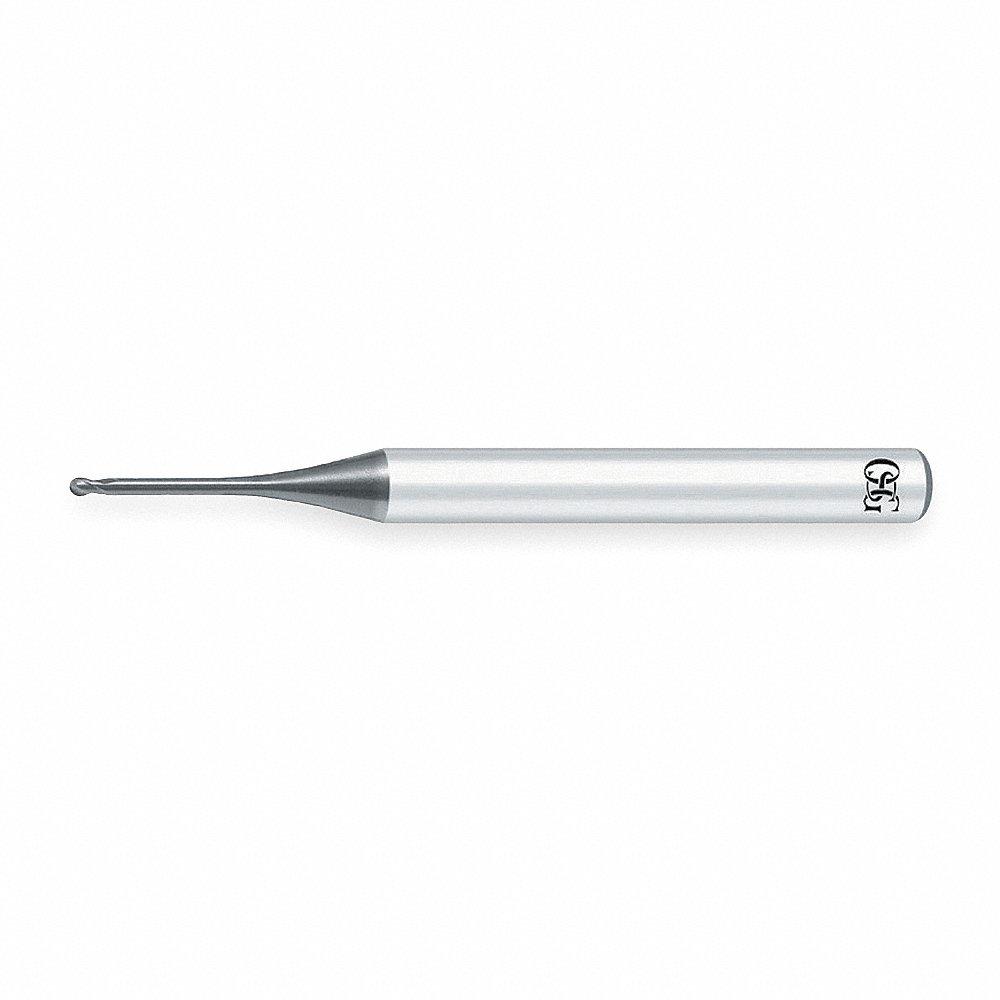

OSG 3051508 Ball End Mill, 2 Flutes, 1.5 mm Milling Dia, 1.2 mm Length Of Cut
Item: CT4QYMModel: 3051508Cross Ref: 2WDK7
7 In Stock
Ships within 2 days via
10.00% off
€105.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 1.2 mm |
| Cutting Type | Center Cutting |
| Dimension Type | Metric |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End Type | Single End |
| Finish | WXS |
| Finish - Machining | WXS |
| Grade | High Performance |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | 4590 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | High Performance |
| Milling Dia. | 1.5 mm |
| Neck Length | 8 mm |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 2 |
| Overall Length | 45 mm |
| Primary Material Application | Cast Iron, Hardened Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, P |
| Shank Dia. | 4 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Single End/double End | Single End |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Shank Dia. | Grade | Number Of Flutes | Helix Angle | Milling Dia. | List Number | Length Of Cut | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3110105 | 45 mm | 4 mm | General Purpose | 2 | 30° | 0.1 mm | 3790 | - | €268.43 | |
|
3110103 | 45 mm | 4 mm | General Purpose | 2 | 30° | 0.1 mm | 3790 | - | €247.37 | |
 |
3105010 | 40 mm | 4 mm | General Purpose | 2 | 30° | 0.1 mm | 3710 | - | €149.92 | |
 |
3050205 | 45 mm | 4 mm | General Purpose | 2 | 30° | 0.2 mm | 4590 | - | €271.59 | |
|
3049923 | 45 mm | 4 mm | General Purpose | 2 | 30° | - | 4590 | - | €229.89 | |
|
3110217 | 45 mm | 4 mm | General Purpose | 2 | 30° | 0.2 mm | 3790 | - | €234.19 | |
 |
3170012 | 45 mm | 4 mm | General Purpose | 2 | 30° | 0.2 mm | 3712 | - | €218.46 |
