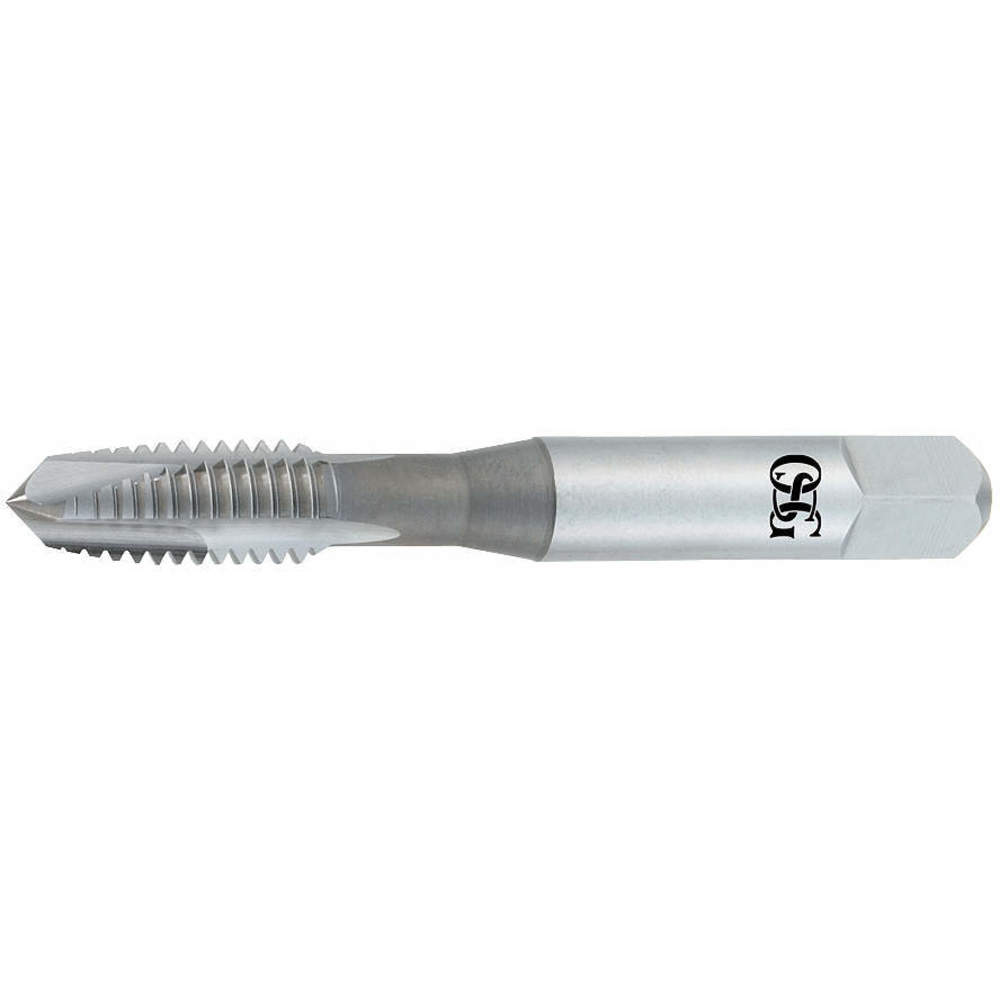

OSG 2888601 Spiral Point Tap Plug 12x1.75mm S/o
Item: AG3NUFModel: 2888601Cross Ref: 33PD83
7 In Stock
Ships within 2 days via
10.00% off
€47.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 27/64" |
| 65% Thread Drill Size | 10.5 mm |
| 75% Thread Drill Size | 10.3 mm |
| Class Of Fit | Class 6H |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 10.18 mm, 10.30 mm, 10.41 mm, 10.52 mm, 10.64 mm |
| Extended Neck | Yes |
| Finish | Black Oxide |
| List Number | 288 |
| Material | High Speed Steel |
| Measurement System | Metric |
| Number Of Flutes | 3 |
| Overall Length | 85 mm |
| Pitch Diameter Limits | 6H |
| Pitch Type | 1.75 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P1, P2 |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Secondary Material Application Iso Code | N |
| Shank Dia. | 9.32 mm |
| Shank Length | 50 mm |
| Shank Type - Machining | Straight |
| Size | M12 |
| Spiral Direction | Neutral |
| Square Size | 6.98 mm |
| Tap Chamfer | Plug |
| Tap Finish | Black Oxide |
| Tap Material | High Speed Steel |
| Tap Thread Size | M12 x 1.75 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 23 mm |
| Thread Limit | 6H |
| Thread Limit/class Of Fit | 6H, 6H |
| Thread Pitch | 1.75 mm |
| Thread Size | M12 x 1.75 |
| Thread Standard | Metric Coarse |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 1.91 |
| HS code | 8207406000 |
Product Variants
| Product | Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Thread Limit | Number Of Flutes | Tap Chamfer | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1023701 | #6-32 | 7/16" | 2" | #36 | H3 | 3 | Plug | UNC | €13.73 | |
|
1024301 | #8-32 | 7/16" | 2 3/32" | 3.4 mm | H3 | 4 | Plug | UNC | €14.17 | |
 |
1111801101 | M10 x 1.5 | 19 mm | 152 mm | 8.5 mm | D6 | 3 | Plug | Metric Coarse | €125.83 | |
 |
1213601 | #10-24 | 9/16" | 2 1/2" | #25 | H1 | 3 | Plug | UNC | €19.31 | |
|
1214001 | #10-32 | 9/16" | 2 1/2" | #21 | H3 | 3 | Plug | Unf | €19.18 | |
 |
1290001 | 1/4"-20 | 1" | 6" | #7 | H3 | 4 | Plug | UNC | €125.47 | |
|
1593401 | #10-24 | 1/2" | 2 11/32" | #25 | H10 | 2 | Plug | UNC | €22.68 |
