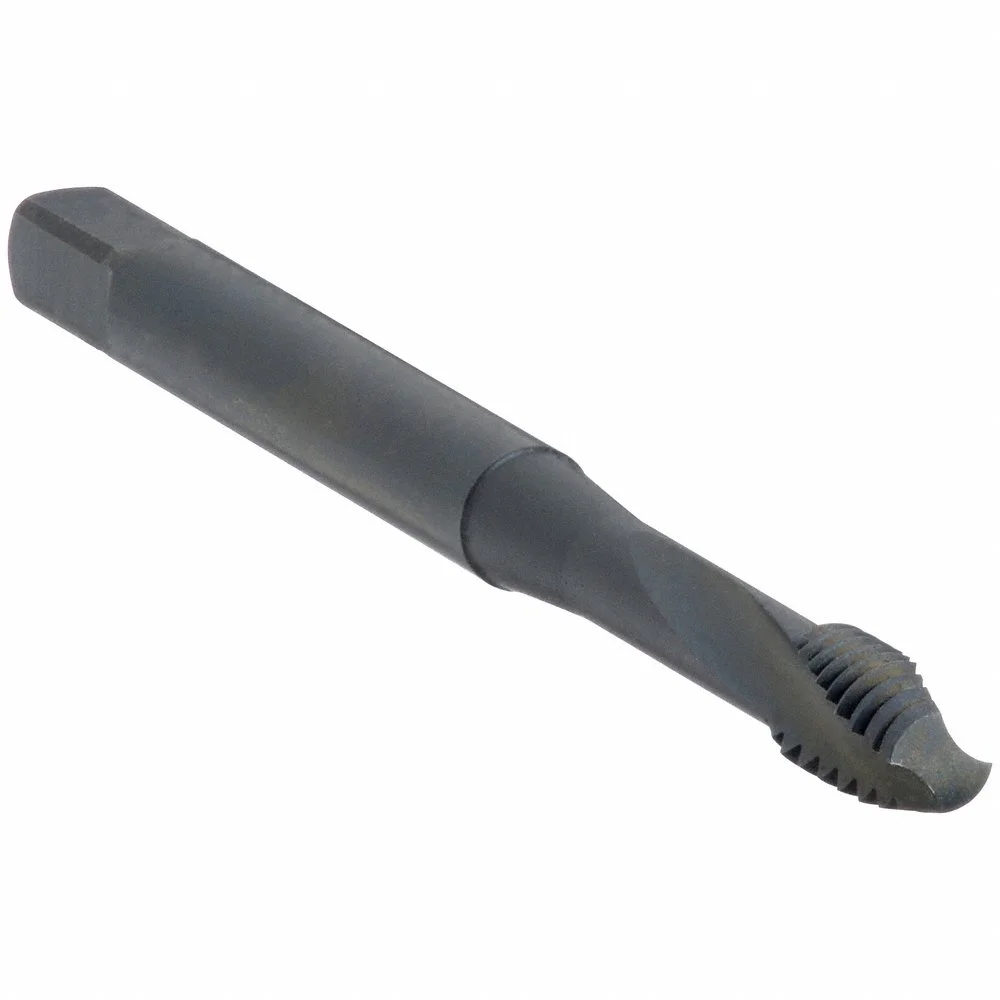

OSG 1754701 Spiral Flute Tap, #8-32 Thread Size, 1/4 Inch Thread Length, 2 3/32 Inch Length
Item: CT6LNRModel: 1754701Cross Ref: 54MF51
7 In Stock
Ships within 2 days via
10.00% off
€50.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 3.6 mm |
| 65% Thread Drill Size | 3.5 mm |
| 75% Thread Drill Size | 3.4 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.1315", 0.1336", 0.1356", 0.1376", 0.1396" |
| Extended Neck | Yes |
| Finish | Black Oxide |
| Grade | Grade 313, Grade VC-10 |
| Helix Angle | 15° |
| Material Grade - Machining | Grade 313, VC 10 |
| Measurement System | Pipe |
| Number Of Flutes | 2 |
| Overall Length | 2 3/32" |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, P3 |
| Secondary Material Application | Hardened Steel, Nickel, Stainless Steel, Steel, Titanium |
| Secondary Material Application Iso Code | H, M, P, S |
| Shank Dia. | 5/32" |
| Shank Length | 1 11/32" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 0.131" |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | Powdered Metal |
| Tap Style | Spiral Flute |
| Tap Thread Size | #8-32 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 1/4" |
| Thread Limit | H4 |
| Thread Limit/class Of Fit | H4 |
| Thread Size | #8-32 |
| Thread Standard | Coarse |
| Threads Per Inch | 32 |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Flutes | Thread Length | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 3 | 5/8" | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | €39.71 | |
 |
1645514207 | 3 | 16 mm | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | €224.64 | |
|
1645516205 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | €249.37 | |
|
1645516207 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | €249.37 | |
|
1645518257 | 4 | 25 mm | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | €345.18 | |
 |
0142008 | 2 | 3/16" | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | €59.46 | |
|
0142108 | 2 | 3/4" | 2 1/8" | - | - | - | - | 0.168" | €59.46 |
