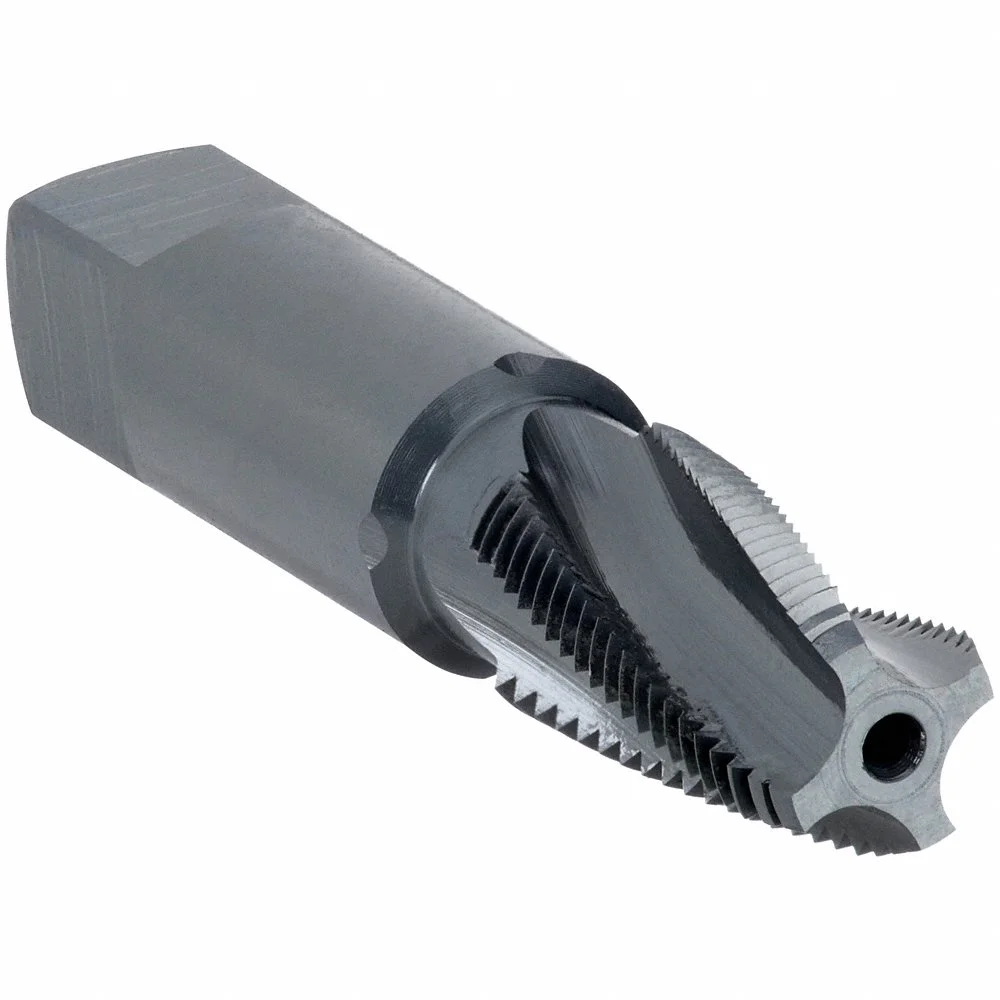

OSG 1735201 Pipe And Conduit Thread Tap, 1/8-27 Thread Size, 3/4 Inch Thread Length
Item: CT9PHZModel: 1735201Cross Ref: 2PEK1
7 In Stock
Ships within 2 days via
5.00% off
€73.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap |
| 75% Thread Drill Size | Q |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 21/64", Q |
| Extended Neck | No |
| Helix Angle | 15° |
| Material Grade - Machining | Grade 308 |
| Max. Projection | 0.312" |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 2 7/64" |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank Dia. | 5/16" |
| Shank Length | 1 23/64" |
| Square Size | 0.234" |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottom, Semi Bottoming |
| Tap Finish | Black Oxide |
| Tap Length Standard | ANSI |
| Tap Material | Cobalt |
| Tap Shank Standard | ANSI |
| Tap Style | Pipe |
| Tap Thread Size | 1/8"-27 |
| Thread Direction | Right Hand |
| Thread Length | 3/4" |
| Thread Size | 1/8"-27 |
| Threads Per Inch | 27 |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.8 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Thread Size | Die Thickness | Outside Dia. | Overall Length | List Number | Thread Standard | Die Thread Size | Thread Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2734200 | 1/4"-18 | 1/2" | 1 1/2" | 1 1/2" | - | NPT | 1/4"-18 | Right Hand | €102.08 | |
|
2734500 | 3/8"-18 | 5/8" | 2" | 2" | - | NPT | 3/8"-18 | Right Hand | €181.63 | |
|
2734300 | 3/8"-18 | 1/2" | 1 1/2" | 1 1/2" | - | - | 3/8"-18 | Right Hand | €130.35 | |
 |
1737501 | 1/16"-27 | - | - | 2 7/64" | 318 | NPTF | - | Right Hand | €74.94 | |
 |
1310000 | 1/16"-27 | - | - | 2 7/64" | 108 | NPT | - | Right Hand | €68.10 | |
 |
1312500 | 1/16"-27 | - | - | 2 7/64" | 118 | NPTF | - | Right Hand | €66.77 | |
|
1735001 | 1/16"-27 | - | - | 2 7/64" | 308 | NPT | - | Right Hand | €74.94 |
