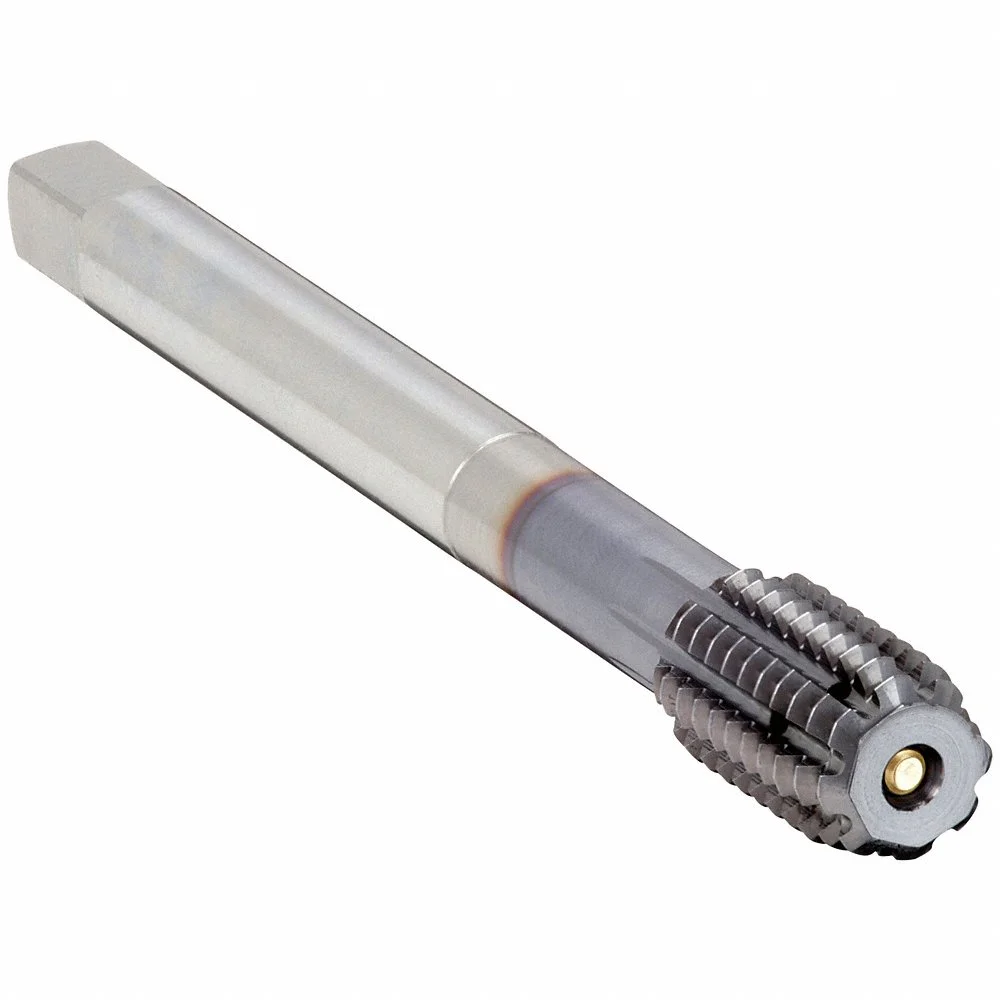

OSG 1605011878 Thread Forming Tap, 1 1/8-7 Thread Size, 13/16 Inch Thread Length, 7 5/64 Inch Length
Item: CT6ZUEModel: 1605011878Cross Ref: 54MA08
7 In Stock
Ships within 2 days via
10.00% off
€767.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Forming Tap |
| Coolant Fed | Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | No |
| Features | 40-50% Less Machining Torque, Additional Length Provides Greater Reach Capabilities, Fluteless Forming Tap |
| Finish | Titanium Carbonitride Coated |
| List Number | 16050 |
| No. Of Pieces | 1 |
| Number Of Flutes | 0 |
| Overall Length | 7.078" |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, P |
| Secondary Material Application | Hardened Steel, Nickel, Titanium |
| Secondary Material Application Iso Code | H, S |
| Shank Dia. | 7/8" |
| Shank Length | 4 1/4" |
| Spiral Direction | Neutral |
| Square Size | 0.672" |
| Tap Chamfer | Modified Bottoming |
| Tap Length Standard | DIN |
| Tap Material | Cobalt |
| Tap Shank Standard | ANSI |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 13/16" |
| Thread Limit | H13 |
| Thread Size | 1 1/8"-7 |
| Thread Standard | Coarse |
| Threads Per Inch | 7 |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Flutes | Overall Length | Thread Length | Thread Limit | Thread Size | Tap Finish | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1400100006 | - | 1 5/8" | 1/4" | H2 | #0-80 | TiCN | 1.3 mm | 9/64" | €35.77 | |
 |
1400100000 | - | 1 39/64" | 5/16" | H2 | #0-80 | Bright | 1.2 mm | 9/64" | €33.20 | |
|
1400100100 | - | 1 39/64" | 5/16" | H3 | #0-80 | Bright | 1.2 mm | 9/64" | €36.56 | |
 |
1400100101 | - | 1 39/64" | 5/16" | H3 | #0-80 | Black Oxide | 1.2 mm | 9/64" | €36.56 | |
 |
1405000308 | - | 1 39/64" | 5/16" | H3 | #0-80 | TiCN | 1.36 mm | 9/64" | €85.83 | |
 |
1405000208 | - | 1 39/64" | 5/16" | H2 | #0-80 | TiCN | 1.36 mm | 9/64" | €85.83 | |
 |
1400100201 | - | 1 39/64" | 5/16" | H2 | #0-80 | Black Oxide | 1.2 mm | 9/64" | €33.20 |
