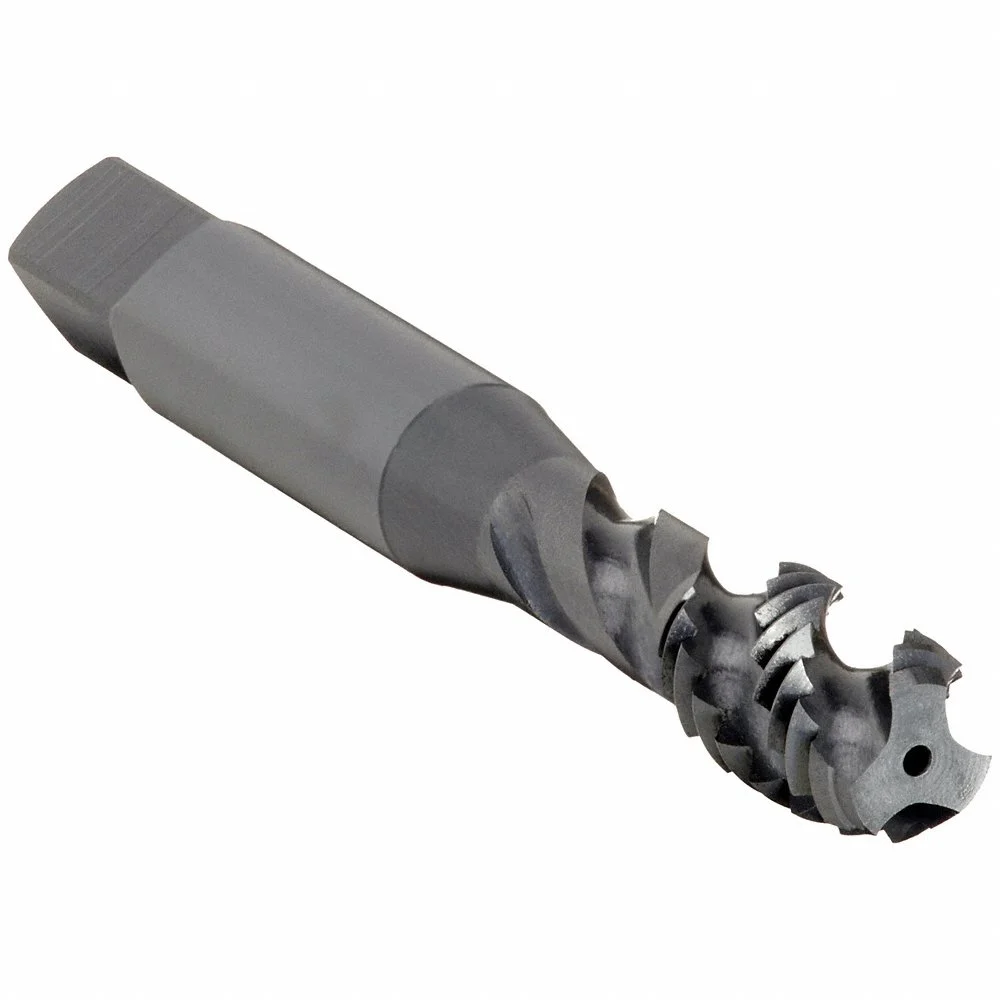

OSG 138701 Spiral Flute Tap, 1/2-13 Thread Size, 9/16 Inch Thread Lg, Black Oxide, H5, Bottoming
Item: CT6LQJModel: 138701Cross Ref: 4HHT5
7 In Stock
Ships within 2 days via
5.00% off
€78.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 75% Thread Drill Size | 0.4219" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.4201", 0.4251", 0.4301", 0.4351", 0.440" |
| Extended Neck | Yes |
| Helix Angle | 45° |
| Measurement System | Fractional Inch |
| No. Of Flutes | 3 |
| Overall Length | 3 11/32" |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P1 |
| Shank Dia. | 23/64" |
| Shank Length | 1 13/32" |
| Shank Type-machining | Straight |
| Square Size | 0.275" |
| Tap Chamfer | Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1/2"-13 |
| Thread Direction | Right Hand |
| Thread Length | 9/16" |
| Thread Limit | H5 |
| Thread Limit/class Of Fit | H5 |
| Thread Size | 1/2"-13 |
| Thread Standard | Coarse |
| Threads Per Inch | 13 |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.75 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Product Variants
| Product | Model | Thread Length | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Tap Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 5/8" | 2 1/2" | 1/4"-20 | TiN | H3 | #7 | 1/4" | Bottoming | €33.19 | |
 |
1645514207 | 16 mm | 110 mm | M14 x 2 | TiN | D7 | 12 mm | 10.89 mm | Modified Bottom | €199.43 | |
|
1645516205 | 16 mm | 110 mm | M16 x 2 | TiN | D5 | 14 mm | 12.19 mm | Modified Bottom | €221.46 | |
|
1645516207 | 16 mm | 110 mm | M16 x 2 | TiN | D7 | 14 mm | 12.19 mm | Modified Bottom | €221.46 | |
|
1645518257 | 25 mm | 125 mm | M18 x 2.5 | TiN | D7 | 16.5 | 13.76 mm | Modified Bottom | €307.01 | |
 |
0142008 | 3/16" | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | Bottoming | €52.11 | |
|
0142108 | 3/4" | 2 1/8" | - | - | - | - | 0.168" | Bottoming | €52.11 |
