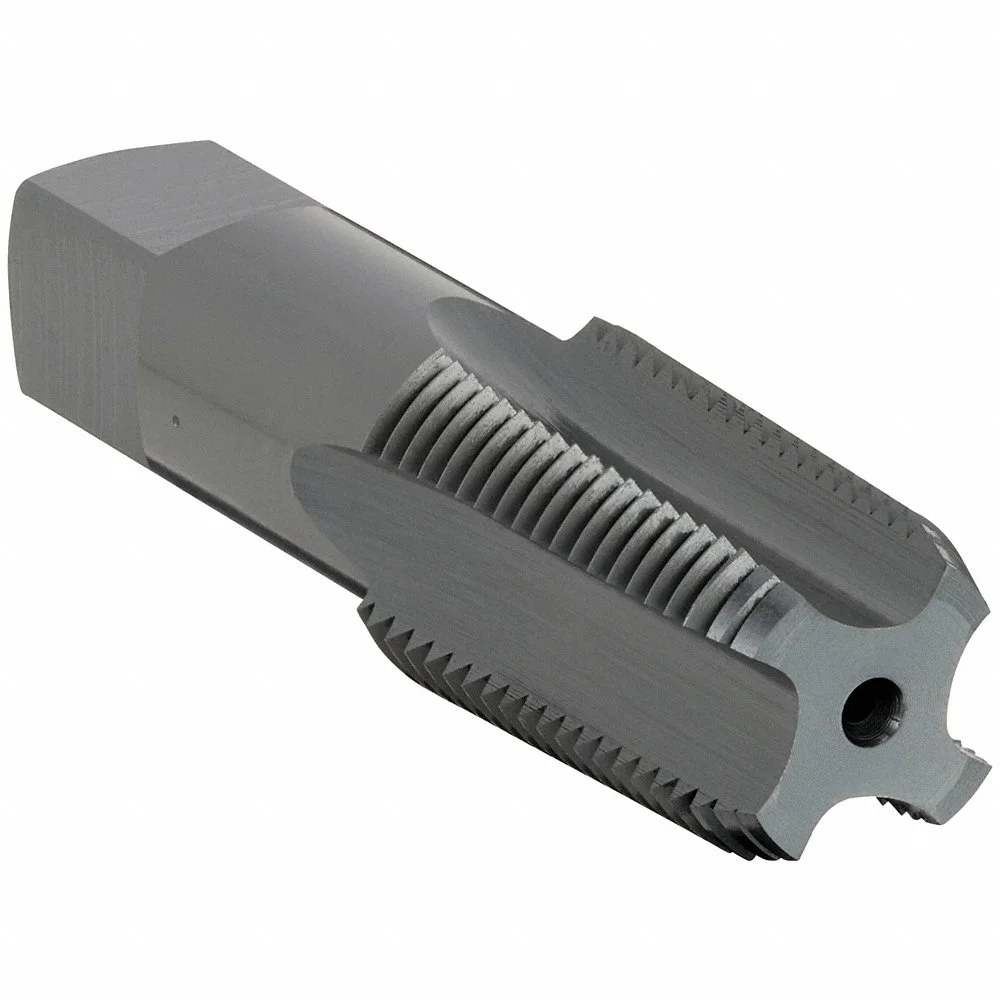

OSG 1312901 Pipe And Conduit Thread Tap, 3/8-18 Thread Size, 1 3/64 Inch Thread Length
Item: CT9PKUModel: 1312901Cross Ref: 2WAK3
7 In Stock
Ships within 2 days via
10.00% off
€84.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap |
| 75% Thread Drill Size | 0.5625" |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | 9/16" |
| Extended Neck | Yes |
| Helix Angle | 0° |
| List Number | 118 |
| Material Grade - Machining | Grade 118 |
| Max. Projection | 0.454" |
| No. Of Pieces | 1 |
| Number Of Flutes | 4 |
| Overall Length | 2 35/64" |
| Pitch Diameter Limit | Not Rated |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 11/16" |
| Shank Length | 1 17/64" |
| Square Size | 0.531" |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Modified Bottom, Semi Bottom |
| Tap Finish | Black Oxide |
| Tap Grouping | Tap |
| Tap Length Standard | ANSI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Pipe |
| Tap Thread Size | 3/8"-18 |
| Thread Direction | Right Hand |
| Thread Length | 1 3/64" |
| Thread Size | 3/8"-18 |
| Thread Standard | NPTF |
| Threads Per Inch | 18 |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Tap Thread Size | Shank Length | Thread Length | Coolant Fed | 75% Thread Drill Size | Number Of Flutes | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2734200 | 1 1/2" | - | - | - | - | - | - | - | €102.08 | |
|
2734500 | 2" | - | - | - | - | - | - | - | €181.63 | |
|
2734300 | 1 1/2" | - | - | - | - | - | - | - | €130.35 | |
 |
1737501 | 2 7/64" | 1/16"-27 | 1 3/16" | 11/16" | Non-Coolant Through | C | 4 | 19/64" | €74.94 | |
 |
1310000 | 2 7/64" | 1/16"-27 | 1 3/16" | 11/16" | Non-Coolant Through | C | 4 | 19/64" | €68.10 | |
 |
1312500 | 2 7/64" | 1/16"-27 | 1 15/64" | 11/16" | Non-Coolant Through | C | 4 | 19/64" | €66.77 | |
 |
1735001 | 2 7/64" | 1/16"-27 | 1 3/16" | 11/16" | Non-Coolant Through | C | 4 | 5/16" | €74.94 |
