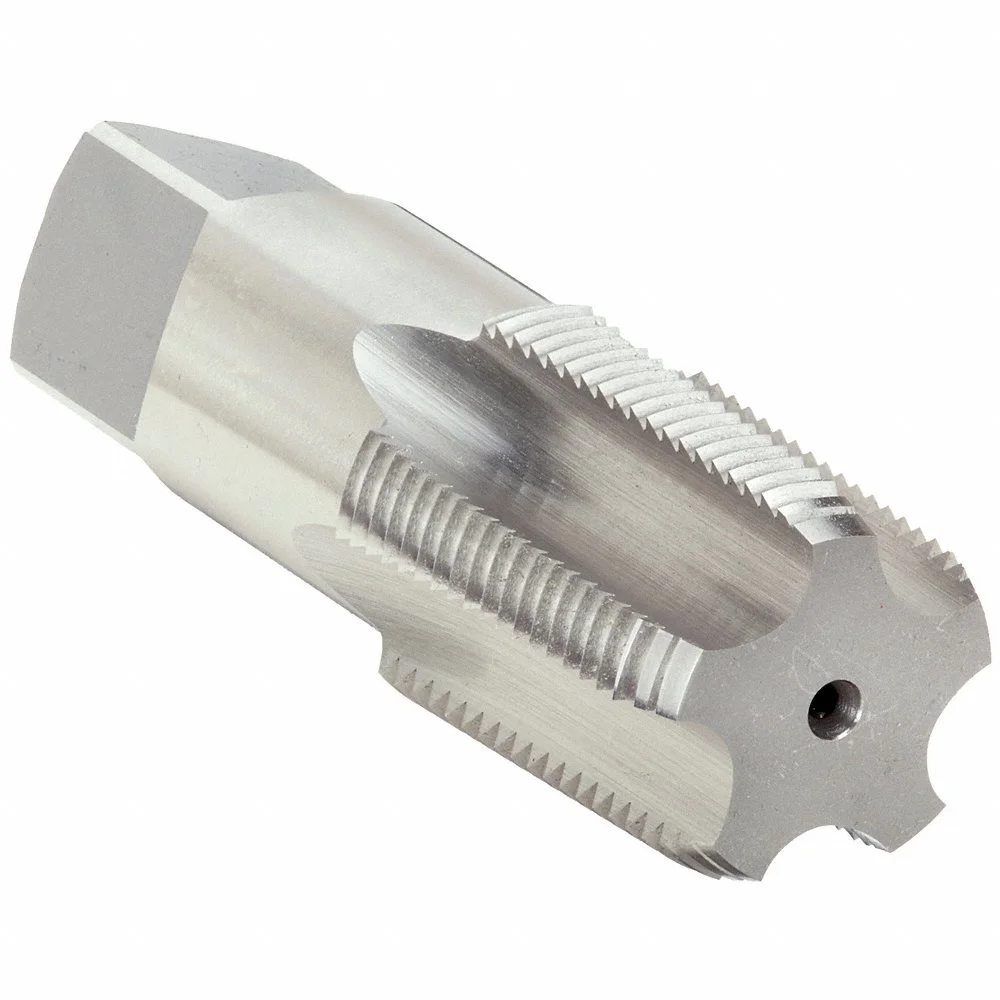

OSG 1310500 Pipe And Conduit Thread Tap, 1/2-14 Thread Size, 1 23/64 Inch Thread Length
Item: CT9PGKModel: 1310500Cross Ref: 2WAG8
7 In Stock
Ships within 2 days via
10.00% off
€143.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap |
| 75% Thread Drill Size | 0.7031" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 11/16", 45/64" |
| Extended Neck | Yes |
| Helix Angle | 0° |
| Interrupted Thread | No |
| Material Grade - Machining | Grade 108 |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 3 7/64" |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application Iso Code | K, N, P |
| Shank Dia. | 43/64" |
| Shank Length | 1 47/64" |
| Spiral Direction | Neutral |
| Square Size | 0.514" |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottom, Semi Bottoming |
| Tap Finish | Bright Uncoated |
| Tap Length Standard | ANSI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Thread Size | 1/2"-14 |
| Thread Direction | Right Hand |
| Thread Length | 1 23/64" |
| Thread Size | 1/2"-14 |
| Threads Per Inch | 14 |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Tap Thread Size | Shank Length | Thread Length | Coolant Fed | 75% Thread Drill Size | Number Of Flutes | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2734200 | 1 1/2" | - | - | - | - | - | - | - | €102.08 | |
|
2734500 | 2" | - | - | - | - | - | - | - | €181.63 | |
|
2734300 | 1 1/2" | - | - | - | - | - | - | - | €130.35 | |
 |
1737501 | 2 7/64" | 1/16"-27 | 1 3/16" | 11/16" | Non-Coolant Through | C | 4 | 19/64" | €74.94 | |
 |
1310000 | 2 7/64" | 1/16"-27 | 1 3/16" | 11/16" | Non-Coolant Through | C | 4 | 19/64" | €68.10 | |
 |
1312500 | 2 7/64" | 1/16"-27 | 1 15/64" | 11/16" | Non-Coolant Through | C | 4 | 19/64" | €66.77 | |
 |
1735001 | 2 7/64" | 1/16"-27 | 1 3/16" | 11/16" | Non-Coolant Through | C | 4 | 5/16" | €74.94 |
