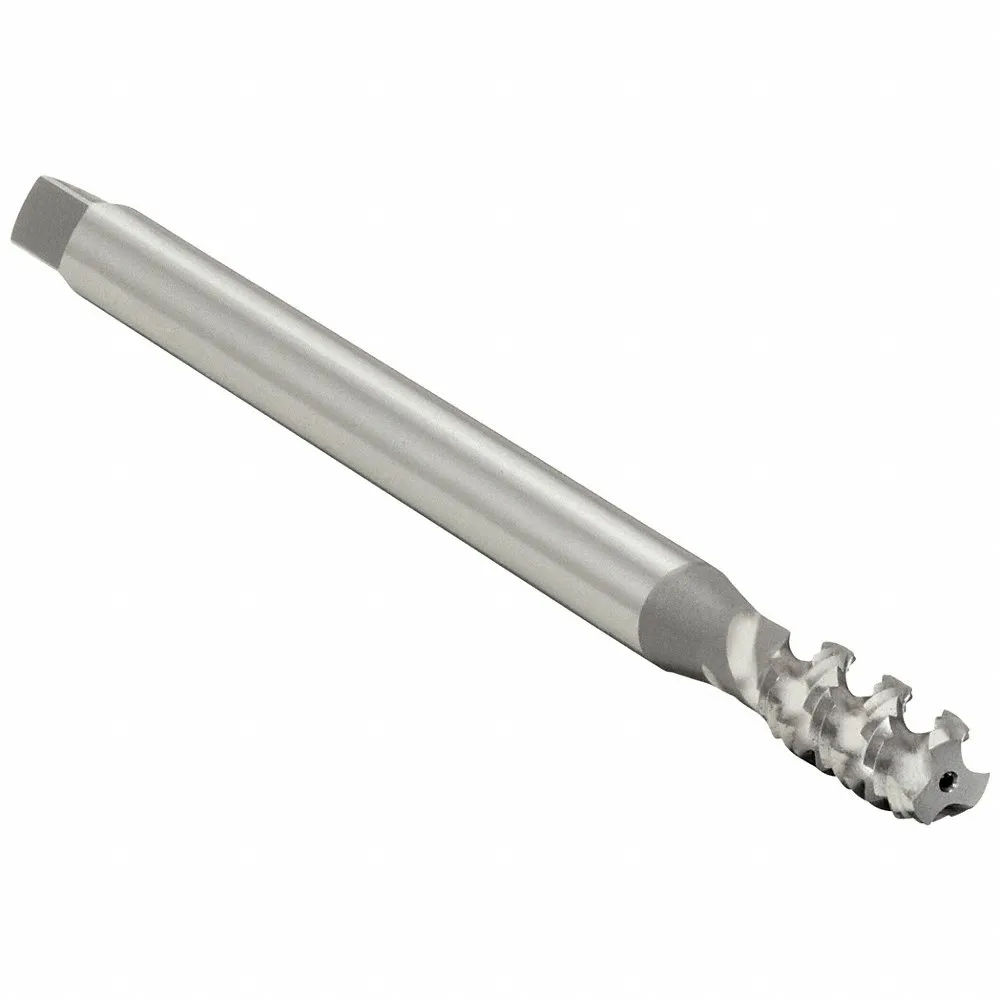

OSG 1299300 Extension Tap, 5/8-11 Inch Thread Size, 1 7/64 Inch Thread Length, 6 Inch Length, 4 Flutes
Item: CT6YTMModel: 1299300Cross Ref: 2WAW4
7 In Stock
Ships within 2 days via
10.00% off
€180.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap |
| 55% Thread Drill Size | 14.2 mm |
| 65% Thread Drill Size | 13.9 mm |
| 75% Thread Drill Size | 13.6 mm |
| Coolant Fed | Non Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | Yes |
| Extended Shank | Yes |
| Finish | Bright |
| List Number | 918 |
| No. Of Pieces | 1 |
| Number Of Flutes | 4 |
| Overall Length | 6" |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Aluminum, Cast Iron, High Carbon Steel, Low Carbon Steel, Medium Carbon Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 0.469" |
| Shank Length | 3 55/64" |
| Square Size | 0.359" |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Bottoming |
| Tap Grouping | Tap |
| Tap Length Standard | ANSI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 1 7/64" |
| Thread Limit | H3 |
| Thread Size | 5/8"-11 |
| Threads Per Inch | 11 |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Size | Number Of Flutes | Overall Length | Thread Length | Thread Limit | Tap Finish | 75% Thread Drill Size | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1294600 | #10-24 | 2 | 6" | 1/2" | H3 | Bright | #25 | 5 1/8" | €115.00 | |
 |
1764501 | #10-24 | 3 | 4" | 31/64" | H3 | Black Oxide | #23 | 2 11/16" | €100.78 | |
|
1764601 | #10-24 | 3 | 6" | 31/64" | H3 | Black Oxide | #23 | 4 11/16" | €109.52 | |
 |
1625510226 | #10-24 | - | 3 15/16" | 33/64" | H6 | V | 4.27 mm | 2 31/32" | - | RFQ
|
|
1625510426 | #10-24 | - | 5 29/32" | 33/64" | H6 | V | 4.27 mm | 4 15/16" | €169.10 | |
 |
1652501108 | #10-24 | 2 | 4 29/32" | 5/16" | H3 | V | #25 | 3 15/16" | €93.78 | |
 |
1767101 | #10-24 | 3 | 4" | 5/16" | H3 | Black Oxide | #25 | 2 11/16" | €100.88 |
