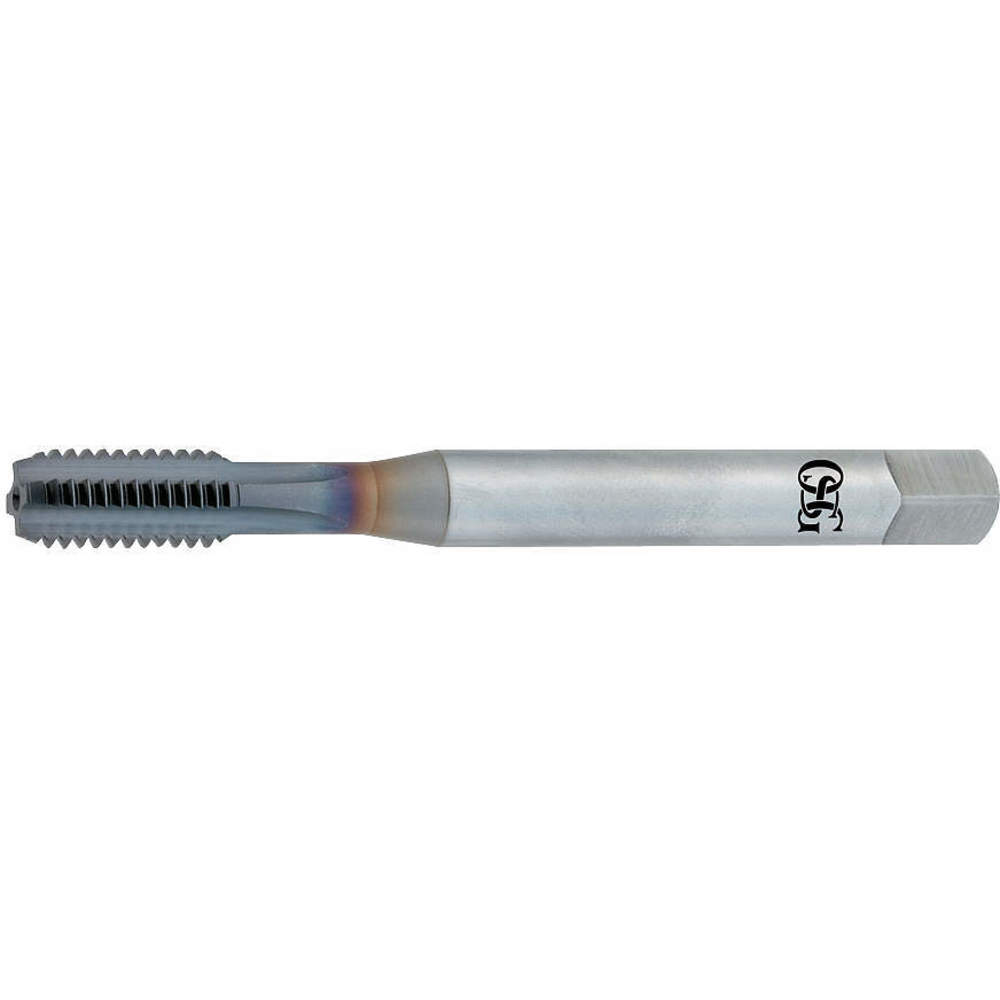

OSG 1105500208 Straight Flute Tap, M8x1.25 Thread Size, 14 mm Thread Lg, TiCN, D5, Bottoming
Item: AG3NPXModel: 1105500208Cross Ref: 33PD04
7 In Stock
Ships within 2 days via
€106.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 7.1 mm |
| 65% Thread Drill Size | I |
| 75% Thread Drill Size | H |
| Coolant Fed | Coolant Through |
| Extended Neck | Yes |
| Finish | TiCN Coating |
| List Number | 11055 |
| Measurement System | Metric |
| No. Of Flutes | 4 |
| Overall Length | 90 mm |
| Pitch Dia. Limits | D5 |
| Pitch Type | 1.25 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper |
| Primary Material Application Iso Code | K, N |
| Shank Dia. | 7.97 mm |
| Shank Length | 55 mm |
| Shank Type-machining | Straight |
| Size | M8 |
| Spiral Direction | Neutral |
| Square Size | 6.19 mm |
| Tap Chamfer | Bottoming |
| Tap Finish | TiCN |
| Tap Material | Powdered Metal |
| Tap Style | Straight Flute (Hand) |
| Tap Type | Bottoming |
| Thread Direction | Right Hand |
| Thread Length | 14 mm |
| Thread Limit | D5 |
| Thread Limit/class Of Fit | D5 |
| Thread Pitch | 1.25 mm |
| Thread Size | M8 x 1.25 |
| Thread Standard | Metric Coarse |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 1.27 |
| HS code | 8207406000 |
| Country of Origin | MX |
Product Variants
| Model | Thread Length | Overall Length | Thread Size | 75% Thread Drill Size | Thread Limit | Shank Dia. | Thread Type | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1005300108 | 9/16" | 3 1/8" | 1/4"-20 | #7 | H3 | 1/4" | Coarse | UNC | €99.66 | |
| 1005300208 | 9/16" | 3 1/8" | 1/4"-20 | #7 | H5 | 1/4" | Coarse | UNC | €100.11 | |
| 1005300408 | 5/8" | 3 17/32" | 5/16"-18 | F | H3 | 5/16" | Coarse | UNC | €113.93 | |
| 1005300708 | 3/4" | 3 29/32" | 3/8"-16 | 5/16" | H3 | 3/8" | Coarse | UNC | €114.55 | |
| 1005300808 | 3/4" | 3 29/32" | 3/8"-16 | 5/16" | H5 | 3/8" | Coarse | UNC | €109.83 | |
| 1005301508 | 7/8" | 4 5/16" | 1/2"-13 | 27/64" | H5 | 23/64" | Coarse | UNC | €149.61 | |
| 1105300108 | 12 mm | 80 mm | M6 x 1 | 5 mm | D5 | 6.47 mm | Metric Coarse | Metric Coarse | €105.44 |
