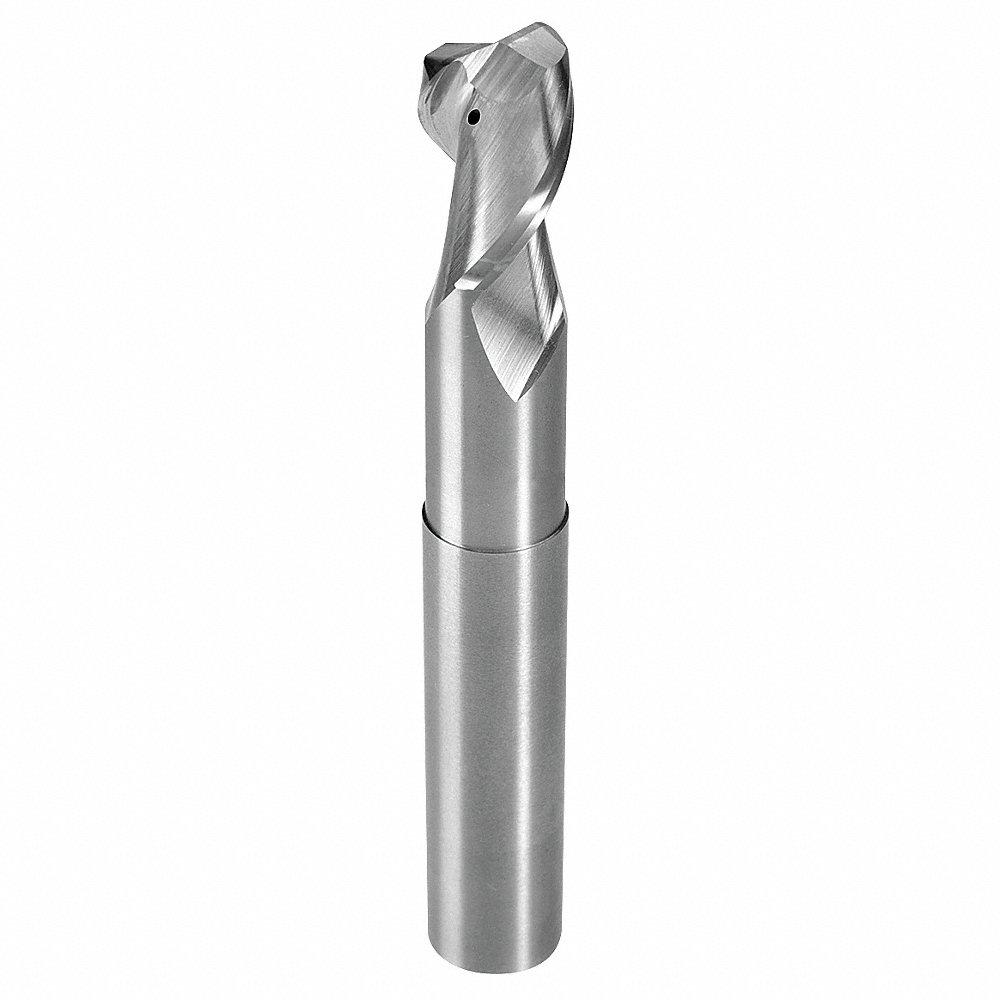

ONSRUD AMC713184 Corner Radius End Mill, 2 Flutes, 3/4 Inch Milling Dia, 1/4 Inch Corner Radius
Item: CT4PLCModel: AMC713184Cross Ref: 4YAF6
7 In Stock
Ships within 2 days via
10.00% off
€623.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Corner Radius End Mill |
| Application | For Aluminum |
| Corner Radius | 1/4" |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 1" |
| Cutting Type | Center |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End | Single |
| End Mill Application | Roughing/Finishing |
| End Mill Style | Corner Radius |
| End Type | Corner Radius |
| Grade | High Performance |
| Helix Angle | 40° |
| List Number | AMC |
| Material | Carbide |
| Material Grade - Machining | High Performance |
| Measurement System | Fractional Inch |
| Milling Dia. | 3/4" |
| Neck Dia. | 45/64" |
| Neck Length | 3 1/8" |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Primary Material Application Iso Code | N |
| Shank Dia. | 3/4" |
| Shank Type | Straight |
| Single End/double End | Single End |
| System Of Measurement | Imperial |
| Type | Aluminum, Medium Length, Necked, Thru-Coolant |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Milling Dia. | Shank Dia. | Overall Length | Corner Radius | Number Of Flutes | Cutting Length | Neck Length | Neck Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AMC701406 | 1 1/4" | 1/4" | 2 1/2" | 0.015" | 2 | 1 1/4" | Not Applicable | Not Applicable | €91.24 | |
 |
AMC700856 | 1" | 3/8" | 2 1/2" | 0.015" | 2 | 1" | Not Applicable | Not Applicable | €86.36 | |
 |
AMC712610 | 1" | 1" | 5" | 0.03" | 2 | 1 1/4" | 2 1/8" | 15/16" | €1,001.39 | |
 |
AMC700610 | 1" | 1" | 4" | 0.03" | 2 | 1 1/4" | Not Applicable | Not Applicable | €570.11 | |
 |
AMC707260 | 1" | 1" | 6" | 0.03" | 2 | 1 1/4" | 3 1/8" | 15/16" | €661.36 | |
 |
AMC707910 | 1" | 1" | 7" | 0.03" | 2 | 1 1/4" | 4 1/8" | 15/16" | €690.69 | |
 |
AMC706610 | 1" | 1" | 5" | 0.03" | 2 | 1 1/4" | 2 1/8" | 15/16" | €610.23 |
