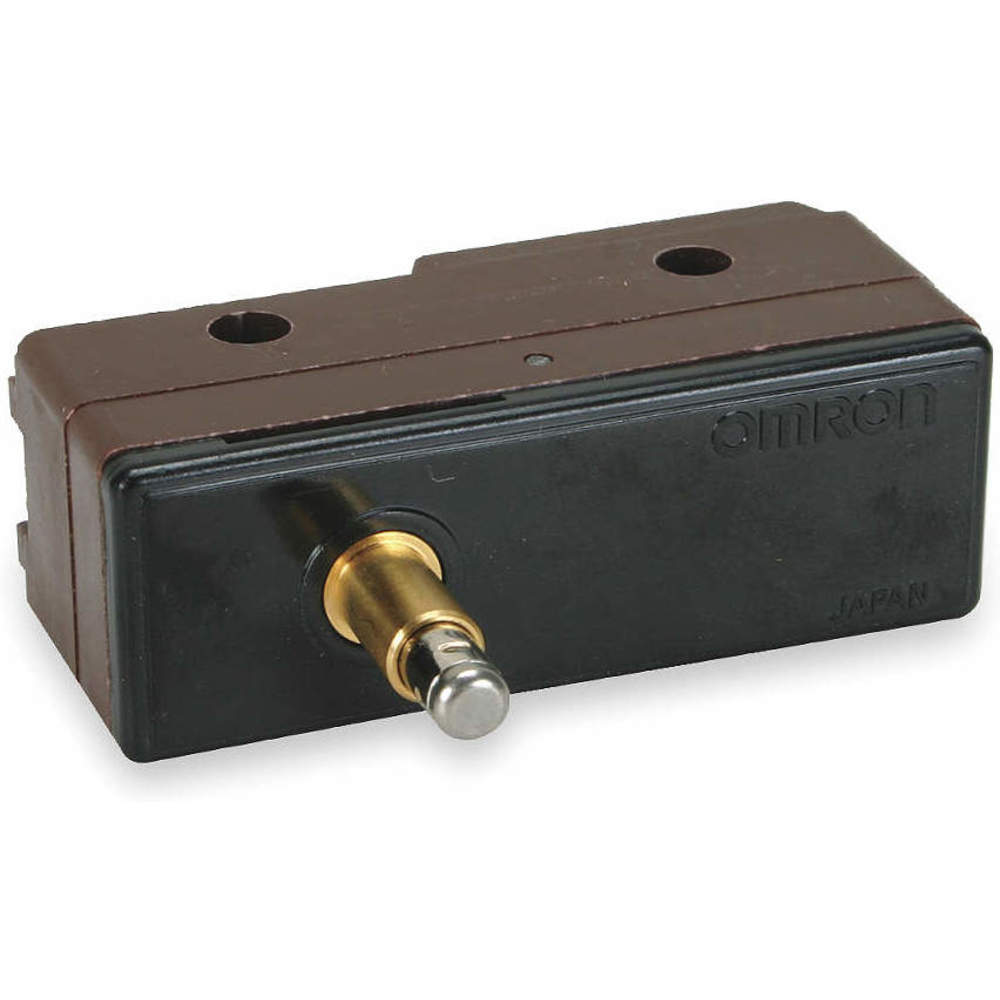

OMRON X-10GS Snap Switch 10a Spdt Slim Spring Plunger
Item: AC2JTZModel: X-10GSCross Ref: 2KRR1
7 In Stock
Ships within 2 days via
10.00% off
€47.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Snap Switch |
| Ac Contact Rating | 2A @250V |
| Actuation Type | Slim Spring Plunger |
| Actuator Length | 0.56" |
| Actuator Style | Plunger |
| Actuator Type | Slim Spring Plunger |
| Amps Rating | 10A |
| Body Depth | 0.69" |
| Body Height | 0.84" |
| Body Material | Phenolic |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 10A @ 120V |
| Depth | 0.69" |
| Differential Travel | 0.007" |
| Differential Travel - Maximum | 0.0071" |
| Display Qty | 1 |
| Electrical Connection | Solder |
| Height | 21/25" |
| Includes | Stainless-Steel Actuator |
| Max. Pretravel | 0.035" |
| Mounting Hole Diameter | 3/16" |
| No. Of Contact Form | 2 , NO/NC |
| Operating Force | 18 oz. |
| Operating Force - Max. | 5N |
| Operating Force - Minimum | 5N |
| Operating Temp. | -13°F to +176°F |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Over Travel | 0.005" |
| Overall Depth | 0.69" |
| Overall Height | 21/25" |
| Overall Width | 1.94" |
| Pre-travel | 0.063" |
| Release Force | 4.03 ozf |
| Roller Adjustability | Fixed |
| Series | X Series |
| Standards | Ce, Csa, Ru |
| Terminal Type | Solder |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 7.87 |
| HS code | 8536509040 |
| Country of Origin | JP |
Product Variants
| Product | Model | Ac Contact Rating | Electrical Connection | Release Force | Max. Pretravel | Over Travel | Actuator Length | Terminal Type | Differential Travel | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

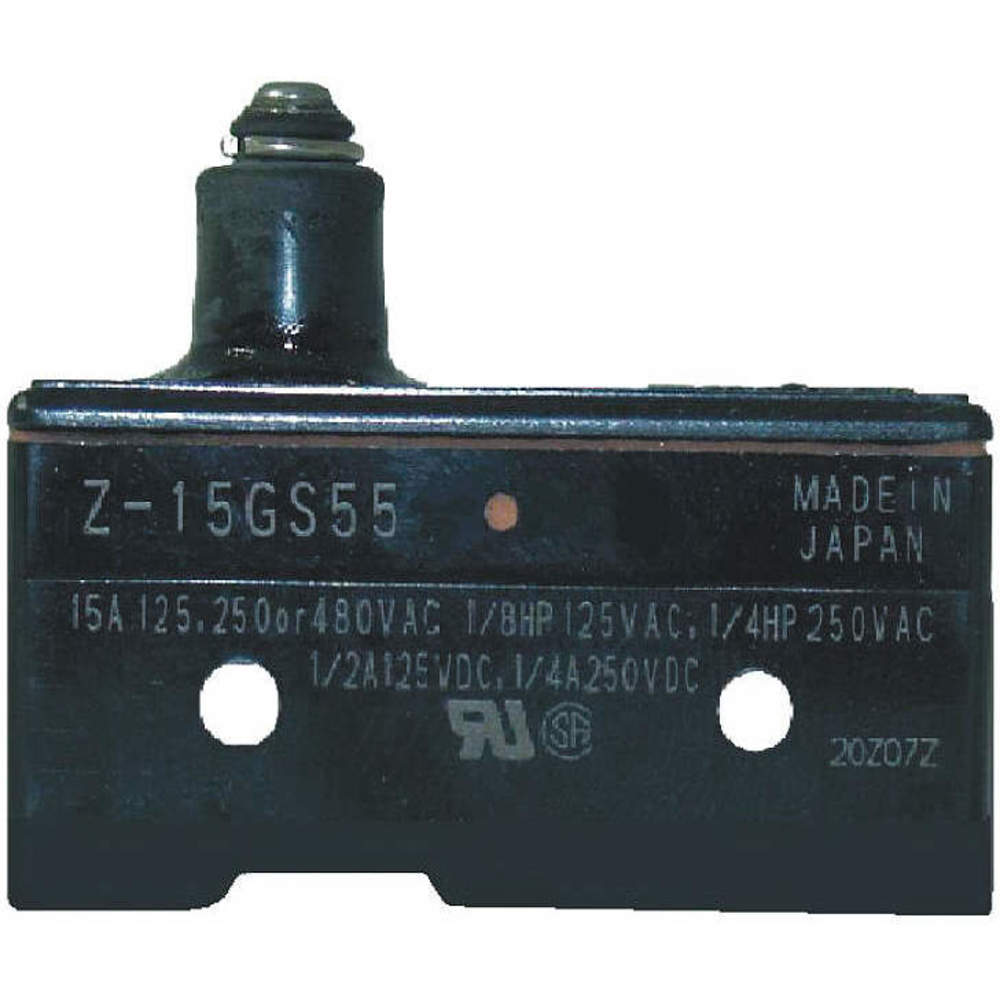

Z-15GS55 | 15A @ 480V | Solder | 4.02 ozf | 0.016" | 0.063" | 0.54" | Solder | 0.002" | €35.98 | |
 |

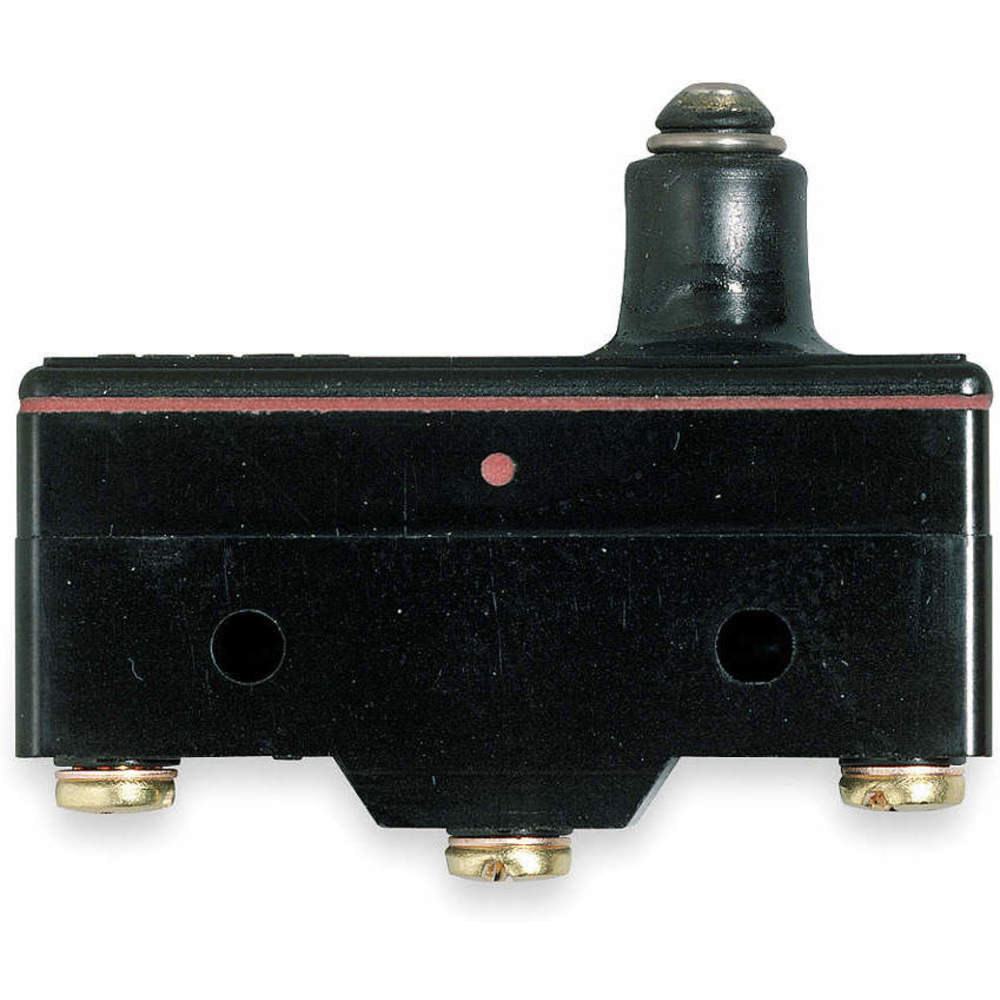

Z-15GS55-B7-K | 15A @ 480V | Screw | 4 ozf | 0.075" | 0.063" | 1.03" | Screw | 0.002" | €66.53 |
