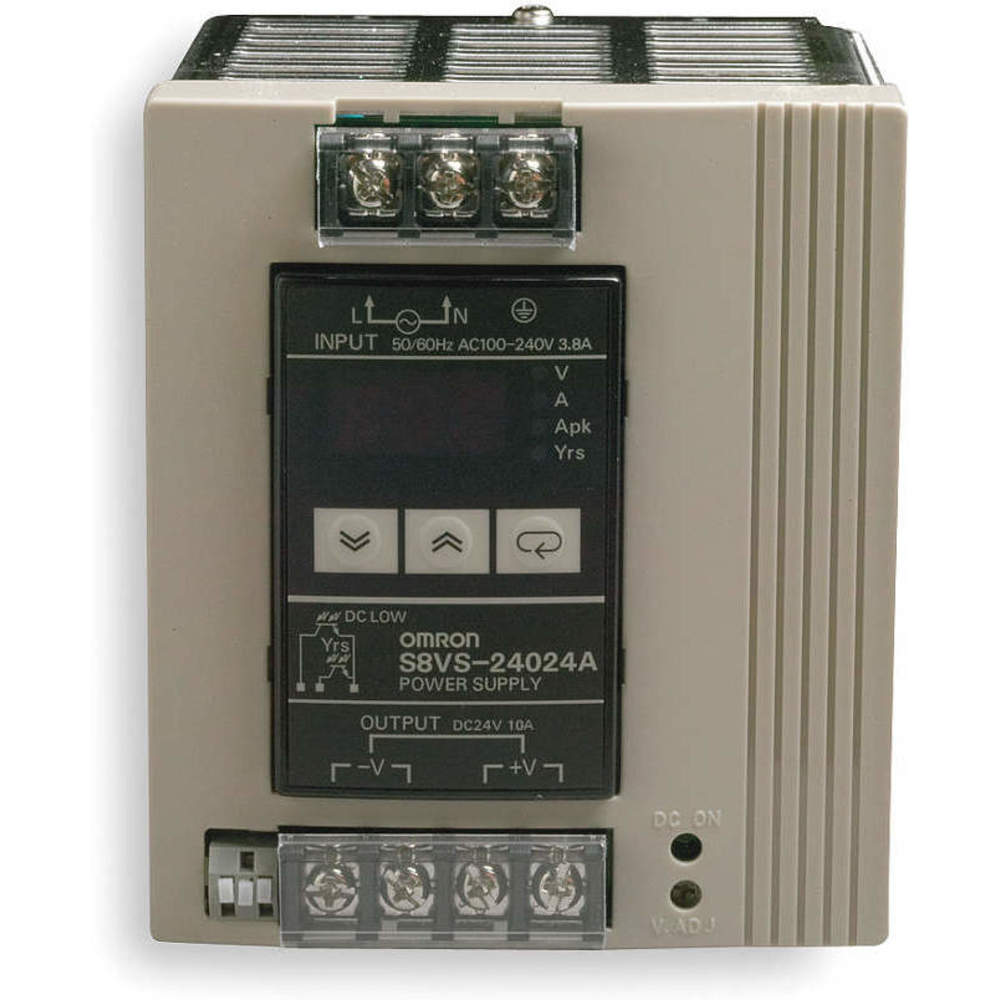

OMRON S8VS-24024A Dc Power Supply 24vdc 10a 50/60hz
Item: AC3BUZModel: S8VS-24024ACross Ref: 2REK7
7 In Stock
Ships within 2 days via
10.00% off
€656.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Power Supply |
| Case Material | Plastic Case |
| Current - Inrush | 28A |
| Depth | 125 mm |
| Features | Built-In MainteNaNce Forecast Monitor, Compact, Simple Functions For Easy System Commissioning, Thin Power Supplies That Mount Just About Anywhere To Contribute To Control Panel Downsizing |
| Frequency | 50/60 Hz |
| Height | 115 mm |
| Hold Up Time | 46 ms |
| Hold Up Time | 46 msec |
| Hold Up Time - Minimum | 46 ms |
| Housing Material | Plastic |
| Input Frequency - Maximuim | 63 Hz |
| Input Frequency - Minimum | 47 Hz |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 100-240V AC |
| Manufacturer Warranty | 5 yrs. |
| Maximum Startup Time | 510 ms |
| Mean Time Between Failures (mtbf) | 135000 hrs. |
| Mounting | Din Rail |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | 14°F |
| Output Amps | 10 |
| Output Amps | 10A |
| Output Noise | 160mV |
| Output Noise | 160 mV |
| Output Noise - Maximum | 160 mV |
| Output Power - Rated | 240 W |
| Output Voltage - Nominal | 24V DC |
| Overall Depth | 4.95" |
| Overall Height | 4.71" |
| Overall Width | 3.94" |
| Phase | Single |
| Power Rating | 240 W |
| Power Supply Style | Switching |
| Series | S8VS Series |
| Special Features | 7-Segment Display, Overload Protection, Overvoltage Protection, Undervoltage Alarm Indication |
| Status Indicator | Green/Orange 7 Segment LED |
| Status Indicator | Green LED |
| Style | Switching |
| Width | 3.94" |
| Wire Connection Type | Screw Terminals |
| Wire Size - Maximum | 14 AWG |
| Wire Size - Minimum | 28 AWG |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 16.76 |
| Ship length (cm) | 30.99 |
| Ship width (cm) | 26.42 |
| HS code | 8504409580 |
| Country of Origin | CN |
Product Variants
| Product | Model | Case Material | Output Noise | Hold Up Time | Peak Amps | Mounting | Phase | Input Voltage | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S8VK-G12024 | Metal Case | 150 mV | 42 ms | 6A | Din Rail | Single | 100-240V AC | IP20 | €189.35 | |
 |
S8VK-G24024 | Metal Case | 180 mV | 44 ms | 12A | Din Rail | Single | 100-240V AC | IP20 | €370.89 | |
 |

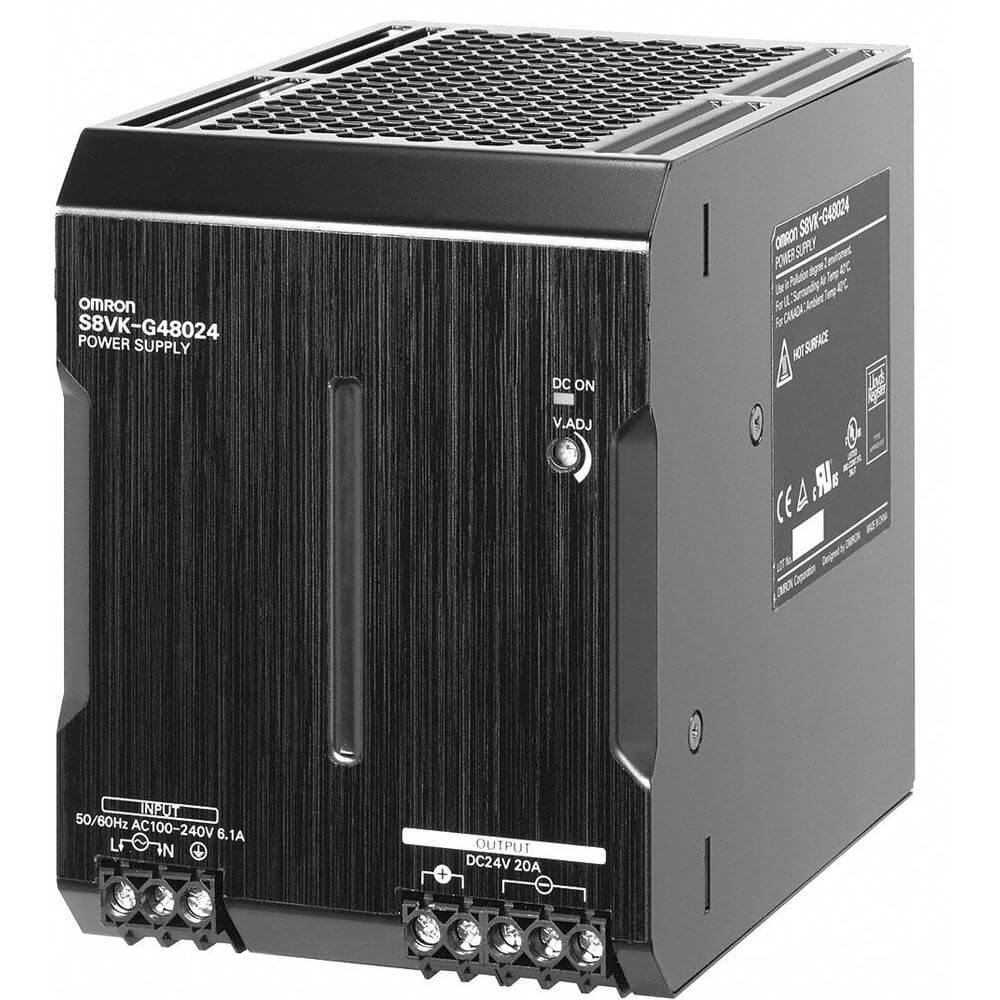

S8VK-G48024 | Metal Case | 230 mV | 40 ms | 24A | Din Rail | Single | 100-240V AC | IP20 | €441.83 | |
 |

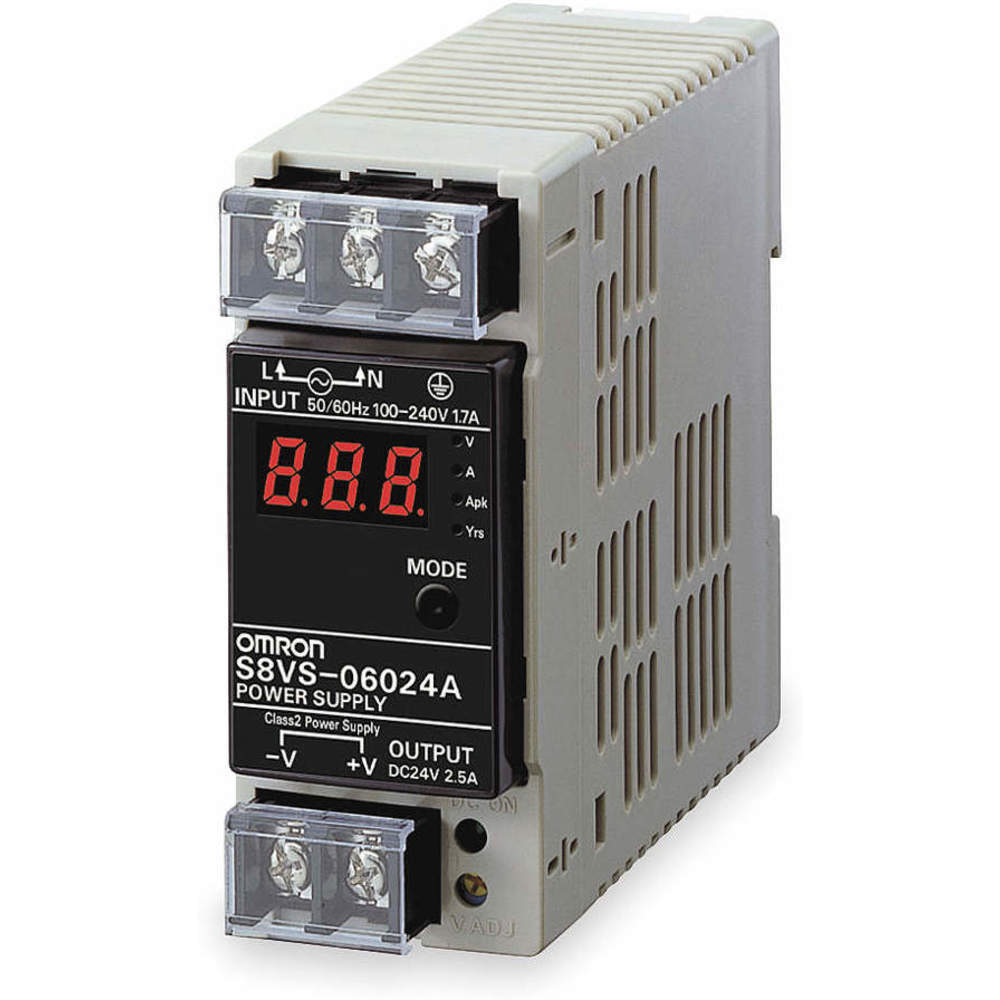

S8VS-06024A | Plastic Case | 90 mV | - | - | Din Rail | Single | 100-240V AC | - | €334.73 | |
 |

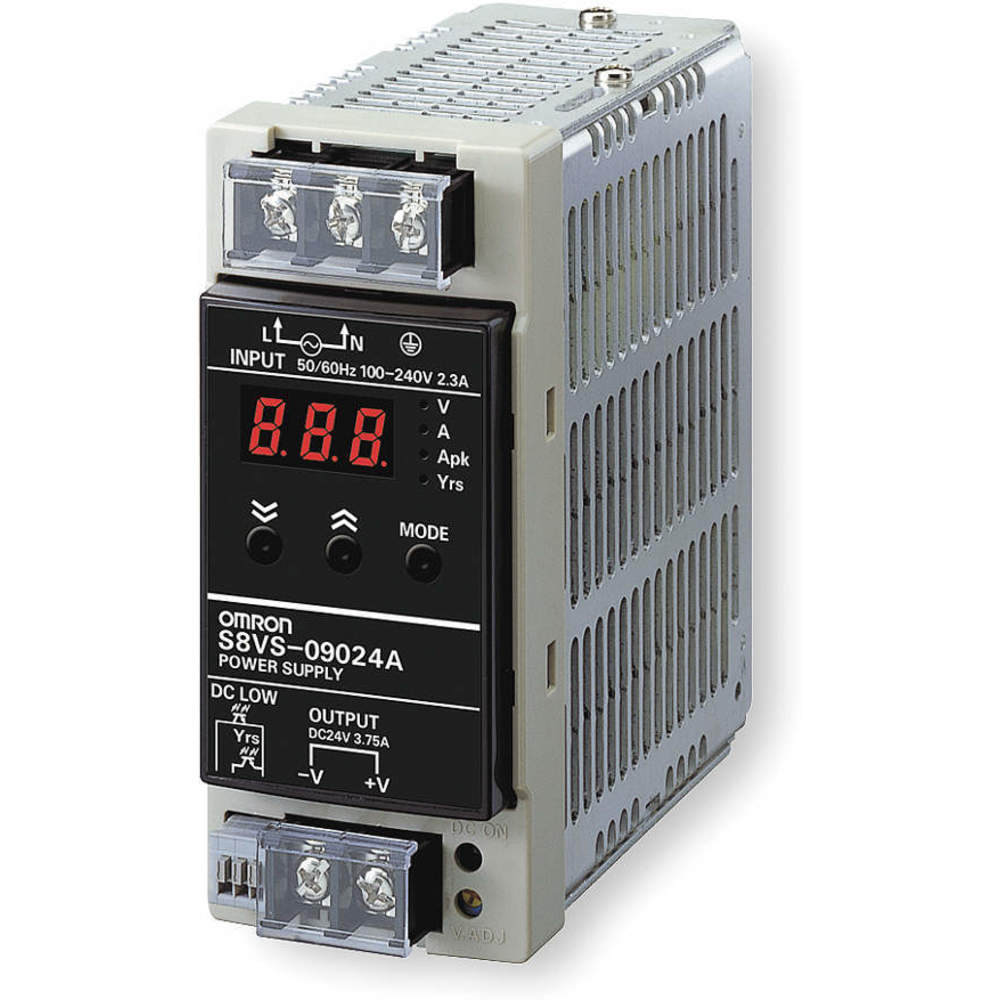

S8VS-09024A | Plastic Case | 150 mV | - | - | Din Rail | Single | 100-240V AC | - | €444.05 | |
 |
S8VS-12024A | Plastic Case | 130 mV | 56 ms | - | Din Rail | Single | 100-240V AC | - | €475.29 | |
 |

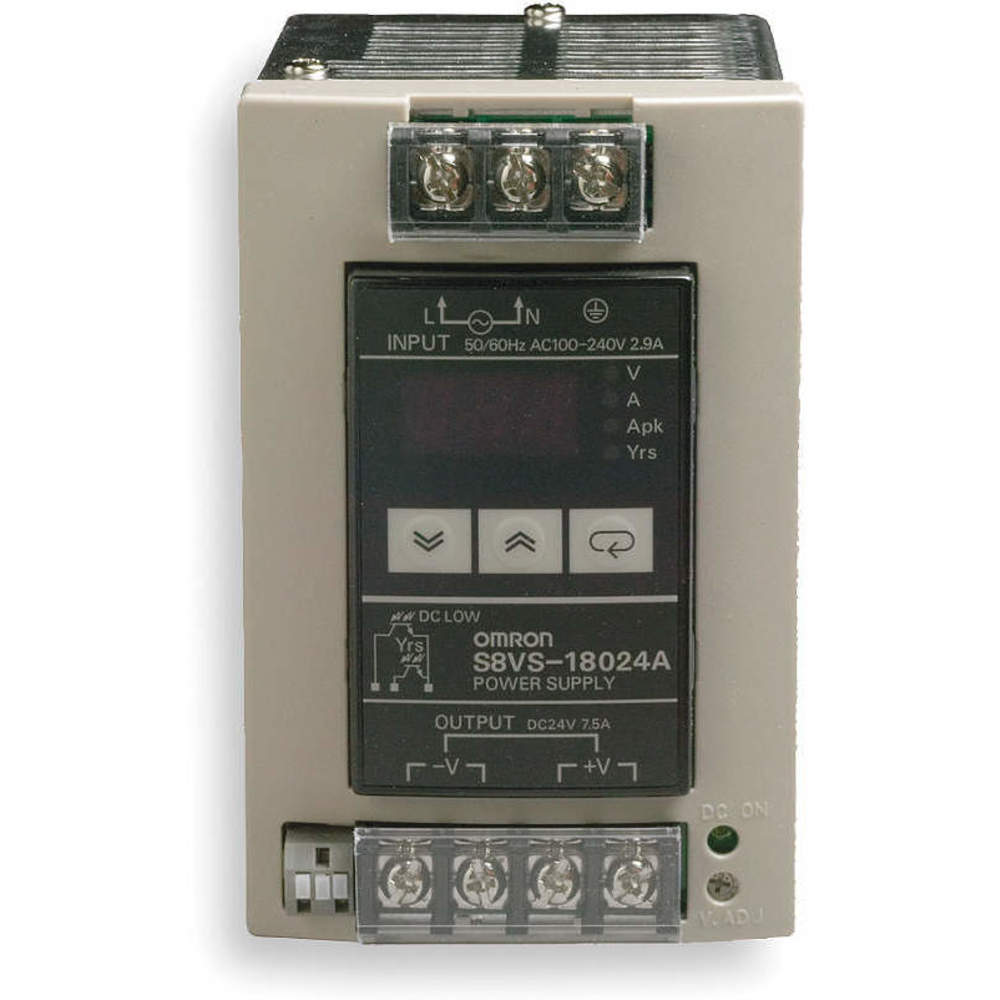

S8VS-18024A | Plastic Case | 180 mV | 70 ms | - | Din Rail | Single | 100-240V AC | - | €663.67 |
