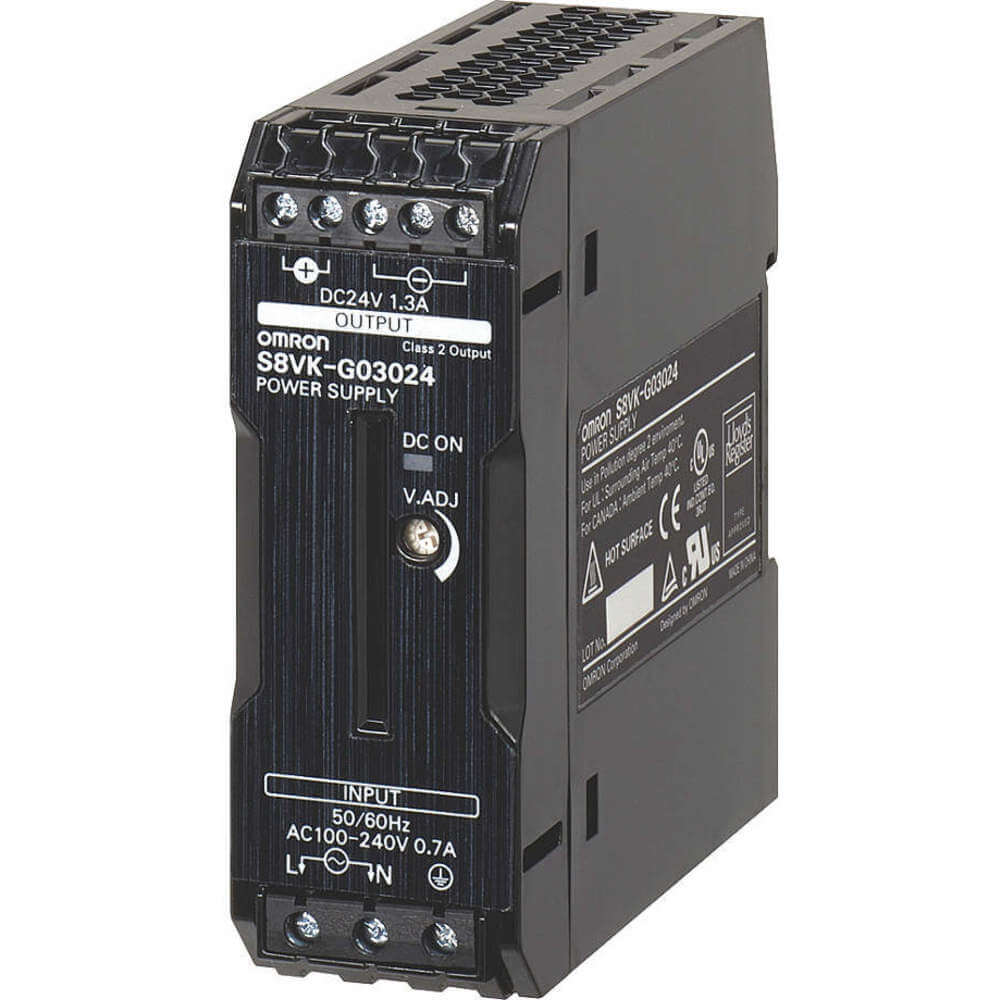

OMRON S8VK-G03024 Dc Power Supply 24vdc 1.3a 50/60hz
Item: AF7LNUModel: S8VK-G03024Cross Ref: 21XP07
7 In Stock
Ships within 2 days via
5.00% off
€130.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Power Supply |
| Case Material | Plastic Case |
| Current - Inrush | 32A |
| Current - Peak | 1.56A |
| Depth | 90 mm |
| Frequency | 50/60 Hz |
| Height | 90 mm |
| Hold Up Time | 23 ms |
| Hold Up Time | 23 msec |
| Hold Up Time - Minimum | 23 ms, 154 ms |
| Housing Material | Plastic |
| Input Frequency - Maximuim | 450 Hz |
| Input Frequency - Minimum | 47 Hz |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 100-240V AC |
| Ip Rating | IP20 |
| Manufacturer Warranty | 3 yrs. |
| Maximum Startup Time | 570 ms |
| Mean Time Between Failures (mtbf) | 135000 hrs. |
| Mounting | Din Rail |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Output Amps | 1.3A |
| Output Amps | 1.3 |
| Output Noise | 30 mV |
| Output Noise | 30mV |
| Output Noise - Maximum | 30 mV |
| Output Power - Rated | 30 W |
| Output Voltage - Nominal | 24V DC |
| Overall Depth | 3.54" |
| Overall Height | 3.54" |
| Overall Width | 1.26" |
| Peak Amps | 1.56A |
| Peak Amps | 1.56 |
| Phase | Single |
| Power Rating | 30 W |
| Power Supply Style | Switching |
| Series | S8VK-G Series |
| Special Features | Automatic Reset, Led Diagnostic Indicators, Overload Protection, Overvoltage Protection, Parallel Capability, Series Operation |
| Start Up Time - Maximum | 570 ms |
| Status Indicator | Green LED |
| Style | Switching |
| Width | 32 mm |
| Wire Connection Type | Screw Terminals |
| Wire Size - Maximum | 12 AWG |
| Wire Size - Minimum | 24 AWG |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 10.41 |
| HS code | 8504409540 |
Product Variants
| Product | Model | Case Material | Output Noise | Hold Up Time | Peak Amps | Mounting | Phase | Input Voltage | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S8VK-G12024 | Metal Case | 150 mV | 42 ms | 6A | Din Rail | Single | 100-240V AC | IP20 | €189.35 | |
 |
S8VK-G24024 | Metal Case | 180 mV | 44 ms | 12A | Din Rail | Single | 100-240V AC | IP20 | €370.89 | |
 |
S8VK-G48024 | Metal Case | 230 mV | 40 ms | 24A | Din Rail | Single | 100-240V AC | IP20 | €441.83 | |
 |
S8VS-06024A | Plastic Case | 90 mV | - | - | Din Rail | Single | 100-240V AC | - | €334.73 | |
 |
S8VS-09024A | Plastic Case | 150 mV | - | - | Din Rail | Single | 100-240V AC | - | €444.05 | |
 |
S8VS-12024A | Plastic Case | 130 mV | 56 ms | - | Din Rail | Single | 100-240V AC | - | €475.29 | |
 |
S8VS-18024A | Plastic Case | 180 mV | 70 ms | - | Din Rail | Single | 100-240V AC | - | €663.67 |
