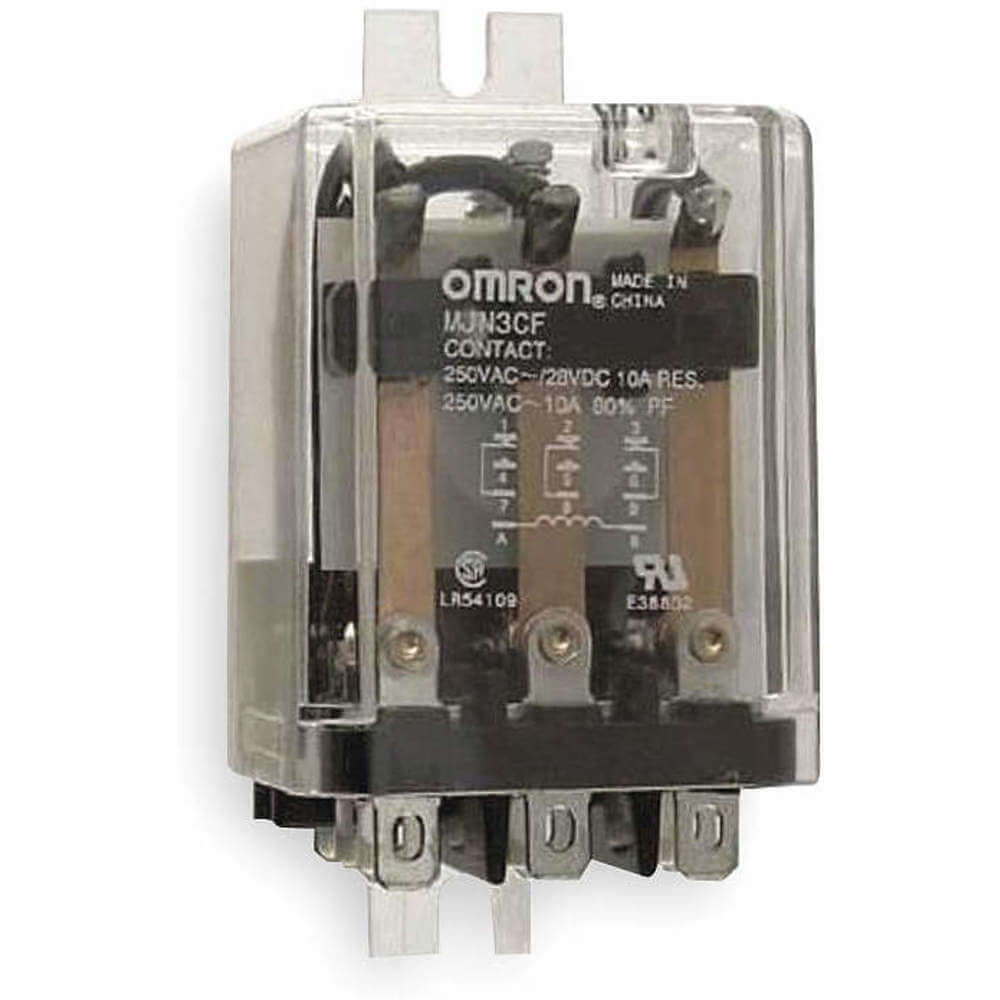

OMRON MJN3CF-DC12 Relay 11Pin 3PDT 10A 12VDC
Item: AB4HXGModel: MJN3CF-DC12Cross Ref: 1YCW2
7 In Stock
Ships within 2 days via
5.00% off
€48.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Amps | 30A |
| Base Shape | Octal |
| Body Depth | 1 2/5" |
| Body Height | 1.9" |
| Body Width | 1 13/25" , 1.53" |
| Coil Va Rating | 1.2 VA |
| Coil Voltage | 12V DC |
| Contact Form | 3PDT |
| Contact Material | Silver Alloy |
| Contact Rating | 10A @ 240V AC/28V DC |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 10A @ 28V |
| Dielectric Strength | 2500V AC Mutually Insulated Elements, 750V AC Between Open Contact |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Enclosed |
| Features | General Purpose Relays, Non-Latching |
| Frequency | 50/60 Hz |
| Hp @ 120v | 1/3 hp |
| Hp @ 240v | 1/2 hp |
| Insulation Resistance | 1000 M ohms |
| Max. Switching Capacity | 1.2 W |
| Mechanical Operating Durability | 10000000 |
| Motor Rating | Yes |
| Mounting | Side |
| No. Of Pins | 11 |
| No. Of Pins-relay | 11 |
| No. Of Pins/terminals | 11 |
| Overall Depth | 2.9" |
| Overall Height | 2.9" |
| Power Consumption | 1.2 W |
| Power Consumption-relay | 1.2 W |
| Push-to-test Button | No Test Button |
| Relay Mounting | Side Flange |
| Relay Mounting Style | Surface Side Flange |
| Resistive Contact Amp Rating | 10A |
| Response Time | 20 ms |
| Sealing | Enclosed |
| Series | MJN Series |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 21.34 |
| Ship width (cm) | 16.26 |
| HS code | 8536490080 |
| Country of Origin | CN |
Product Variants
| Model | Coil Voltage | Mounting | Hp @ 120v | Hp @ 240v | No. Of Pins | Contact Form | Status Indicator | Coil Va Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MJN1CF-AC24 | 24V AC | Side Flange | 1/3 hp | 1/2 hp | 5 | SPDT | No | 1.7 VA | €48.25 | |
| MJN1CF-AC120 | 120V AC | Side Flange | 1/3 hp | 1/2 hp | 5 | SPDT | No | 1.7 VA | €49.89 | |
| MJN1CF-AC240 | 240V AC | Side Flange | 1/3 hp | 1/2 hp | 5 | SPDT | No | 1.7 VA | €47.32 | |
| MJN1Z-E-RP-DC12 | 12V DC | Side Flange | 1 hp | 1 1/2 hp | 6 | SPDT | No | 1.2 VA | €42.50 | |
| MJN1Z-E-RP-DC24 | 24V DC | Side Flange | 1 hp | 1 1/2 hp | 6 | SPDT | No | 1.2 VA | €46.13 | |
| MJN1Z-E-RP-AC24 | 24V AC | Side Flange | 1 hp | 1 1/2 hp | 6 | SPDT | No | 1.7 VA | €58.65 | |
| MJN1Z-E-RP-AC120 | 120V AC | Side | 1 hp | 1 1/2 hp | 6 | SPDT | No | 1.7 VA | €54.95 |
